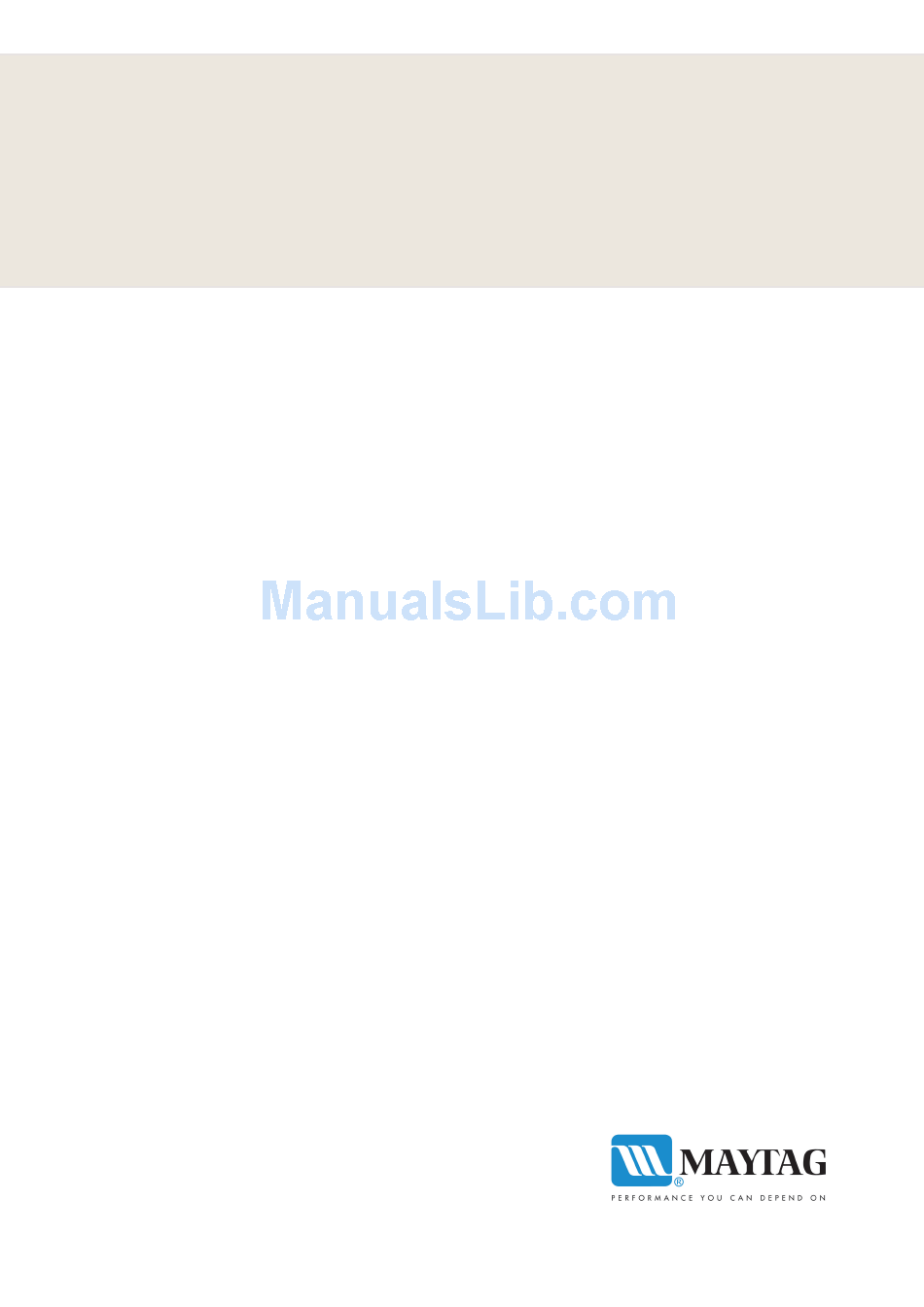

Operating Instructions
Tumble dryer
Dear Maytag customer,
Thank you for choosing this quality product from
Scandinavia, made in Vara, Sweden.
We want you to feel assured that the inside of your new
machine is just as good as the outside and that the ethics and
standards that went into the production of this machine are
just as high as the quality and performance that you will
receive from it. We hope that this product will give you many
years of pleasure.
To get the most out of your new machine, we recommend that
you read the Use & Care Guide before using the machine.
MDE9651
Advertisement
Table of Contents
Related Manuals for Maytag MDE9651
Summary of Contents for Maytag MDE9651
-
Page 1: Operating Instructions
Operating Instructions Tumble dryer Dear Maytag customer, Thank you for choosing this quality product from Scandinavia, made in Vara, Sweden. We want you to feel assured that the inside of your new machine is just as good as the outside and that the ethics and... -
Page 2: Table Of Contents
Contents Contents Before using your machine for the first time Do not tumble-dry Safety instructions General Installation Safety Stopping a programme Transport/Winter storage Packing material Disposal Child safety General Options buttons Advice and tips before you tumble-dry 8 Has it been spun? Laundry labels Materials that must not be tumble-dried 8 And do not tumble-dry... -
Page 3: Before Using Your Machine For The First Time
Before using your machine for the first time Do not tumble-dry Certain materials are sensitive to tumble- drying. Always check and follow an item’s laundry label. You can read more on page 9, “Before tumble-drying”. See the Quick guide on the last page. Note! When starting the tumble dryer for the first time or after a long period without use, you... -
Page 4: Safety Instructions
Safety instructions General • Read and keep the Use & Care Guide! • Electrical installation, if required, should be carried out by qualified professionals. • The machine should only be used for tumble-drying as described in these instructions. • Repairs and maintenance relating to safety or performance must be carried out by a qualified professional. -
Page 5: Child Safety
Child safety General Do not allow children to play with the tumble dryer. The tumble dryer has a magnetic catch, allowing the door to be opened from the inside. The door has a door-switch that auto- matically stops the tumble dryer when the door is opened. -
Page 6: Parts Of The Tumble Dryer
Parts of the tumble dryer Fluff filter holder Type plate Condensed water container Panel Outer door Fan (behind the front plate) Condenser (behind the front plate) Fluff filter... -
Page 7: Options Buttons
Front panel Main power switch 2-4. Options buttons Programme selector Display Start/Stop Options buttons Button for selecting Low Temperature Button for selecting Anti-crease Programme Button for selecting Delayed Start 5 h... -
Page 8: Advice And Tips Before You Tumble-Dry
Advice and tips before you tumble-dry Here are some tips that may help you before you begin tumble-drying. Has it been spun? Items to be tumble-dried should be spun at 1000 rpm or faster. Better spinning saves both energy and drying time. Laundry labels Materials that can be tumble-dried This symbol means that the material is suit-... -
Page 9: Tumble-Drying
Tumble-drying Below are step-by-step instructions to help you achieve the best possible tumble- drying results. Sort your fabrics You will achieve the most uniform dry- ing results if the items are the same material. Do up zips and buttons, fasten belts, sort the items and adjust load and temperature. -
Page 10: Press The Start Button
Delayed Start Select or deselect this option by pressing the Delayed Start button. The machine will start the programme 5 hours after you se- lect this option + the Start/Stop button. A lighted red field by the button indicates that the option has been activated. If you change your mind, press the Start/Stop but- ton for three seconds. -
Page 11: Once Drying Has Finished
Draining the condensed water container The condensed water container must be drained after each load. Remove the condensed water container, empty out the water and replace the con- tainer. If the condensed water container becomes full to overflowing, the programme is inter- rupted and is shown in the display. -
Page 12: Consumption Values
Consumption values For the consumption values given below, the following prerequisites apply: Temperature of intake air: Moisture content of intake air: Drying temperature: Element power: Before tumble-drying, cotton fabrics are spun at 800 and 1600 rpm (long spin). Before tumble-drying, other fabrics (crease-resistant and acrylic) are spun at 800 rpm (short spin). -
Page 13: Care And Cleaning
Care and cleaning Cleaning the fluff filter The fluff filter must be cleaned after each load. If you have very hard water, this can cause limescale deposits in the fluff filter. Check for any limescale deposits when cleaning the fluff filter and, if necessary, wash down the filter by hand. -
Page 14: Cleaning The Condenser
Cleaning the condenser The condenser should be cleaned at least three times a year. If you have pets, the condenser must be cleaned more frequent- 1. Switch off the main power switch. 2. Remove the front plate. 3. Open the condenser panel by turning the two knobs anticlockwise. -
Page 15: Troubleshooting
Troubleshooting The machine will not start Check • that the outer door is properly closed • that the main power switch is pressed • that you have set the programme correctly • that the Delayed Start option has not been selected. -
Page 16: Technical Information
Technical information Technical data Height: Width: Depth: Weight: Cylinder volume: Max. drying capacity: RPM: Rated power: Drying drum material: Outer casing material: Setup: Drain: Standard tests Europe: Drying performance: Energy declaration: Test method noise measurement: 850 mm 595 mm 585 mm 47 kg 111 l 6.0 kg... -
Page 17: Service
Service Before contacting the service division, you should find out whether the fault is anything you can take care of yourself. See the chapters “Troubleshooting” and “Care and cleaning”. If you do need to contact the service division after all, make sure you know the model designation, type designa- tion and serial number. -
Page 18: Installation
Installation Positioning the tumble dryer The tumble dryer can be positioned as freestanding or in a stack. Remember that the tumble dryer produces heat and should therefore not be located in a room that is too small. If the room is very small, drying will take longer due to the limited quantity of air. -
Page 19: Adjusting The Feet
Break off tag A on the cup fitted on the right side and tag B on the cup fitted on the left side. Then remove the paper from the self- adhesive surface under the plastic cups. 4. Fit the plastic cups so that the “tags” marked with arrows are against the front edge of the cover and side edge and press firmly onto the cover. -
Page 20: Electrical Installation
Electrical installation The machine must only be connected to an earthed wall socket. Connection on delivery The machine is supplied as single-phase, 230V, heat output 2500W (see type plate) and has a 16A fuse. Any earth fault fuses must be type A. Alternative connection It is possible to switch over from 16A (heat output 2500) to 10A (heat output 1950W). -
Page 21: Door Hanging
Door hanging The tumble dryer comes with the door hung on the left. However, it is possible to change the door to right hung. Proceed as follows: 1. Remove the lower front plate and undo the three screws holding the hinge attach- ment. - Page 22 9. Insert the cover washer in place of the door magnet. 10. Insert the screws so that the door mag- net and cover washer are held in place. 11. Remove the screw indicated. If using a condenser dryer, you must also open the condenser panel.
-
Page 23: Search Words
Search words Anti-crease Care Child safety Cleaning Condensed water container 4, 6, 10, 11, 13 Condenser Cotton Display Disposal Door hanging Do not tumble-dry Electrical installation Error messages Felting Fluff filter Installation Laundry labels Options Overheating cut-out Packaging Programmes Quick guide 7, 9 Safety Service... -
Page 24: Quick Guide
Quick guide Fabrics • Sort fabrics of the same kind to ensure as uni- form drying as possible. Press the main power switch Load the laundry • Close the door. Select a programme and any options • Turn the Programme selector to the required programme.
