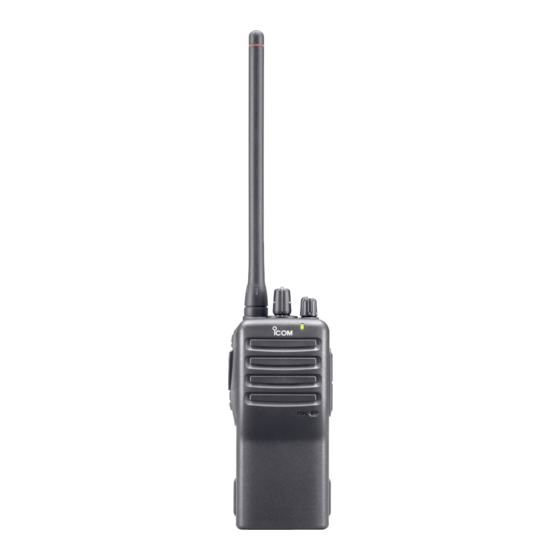

- Page 1 INSTRUCTION MANUAL VHF TRANSCEIVER iF14/S UHF TRANSCEIVER iF24/S iF26-L This device complies with Part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful inter- ference.
-
Page 2: Safety Training Information
“General Population” in an uncontrolled environment. This radio has been tested and complies with the FCC RF exposure limits for “Occupational Use Only”. In addition, your Icom radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: •... - Page 3 “PTT” switch or VOX function. • ALWAYS keep the antenna at least 2.5 cm (1 inch) away from the body when transmitting and only use the Icom belt-clip which is listed on page 35 when attaching the radio to your belt, etc., to en- sure FCC RF exposure compliance requirements are not exceeded.
-
Page 4: Foreword
NOTE of personal injury, fire or electric shock. Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United Kingdom, Germany, France, Spain, Rus- sia, Australia, New Zealand, and/or other countries. -
Page 5: Precautions
Use and charge only specified Icom battery packs with Icom transceivers or Icom chargers. Only Icom battery packs are tested and approved for use with Icom transceivers or charged with Icom chargers. Using third-party or counterfeit battery packs or chargers may cause smoke, fire, or cause the battery to burst. - Page 6 PRECAUTIONS (Continued) CAUTION: MAKE SURE the flexible antenna, battery pack and jack cover are securely attached to the transceiver, and that the antenna and battery pack are dry before attachment. Exposing the inside of the transceiver to dust or water will result in serious damage to the transceiver.
- Page 7 Even when the transceiver power is OFF, a slight current still flows in the circuits. Remove the battery pack from the transceiver when not using it for a long time. Otherwise, the installed battery pack will become exhausted, and will need to be recharged or replaced. MAKE SURE to turn OFF the transceiver power before connect- ing the supplied/optional equipment.
-
Page 8: Table Of Contents
TABLE OF CONTENTS SAFETY TRAINING INFORMATION ............i FOREWORD ....................iii EXPLICIT DEFINITIONS ................iii PRECAUTIONS ..................iv 1 ACCESSORIES .................1‒5 ■ Supplied accessories .................1 ■ Accessory attachments ..............2 2 PANEL DESCRIPTION ..............6‒11 ■ Front, top and side panels ..............6 ■ LED indicator ..................8 ■... -
Page 9: Accessories
ACCESSORIES ■ Supplied accessories The following accessories are supplied. Flexible Battery pack Battery charger antenna Power adapter (for the battery charger) Belt clip Jack cover Unit cover* (with screws) (double-sided tape) *Use the unit cover as a spare. Ask your dealer for details. NOTE: Some accessories are not supplied, or the shape is different, depending on the transceiver version. -
Page 10: Accessory Attachments
ACCESSORIES ■ Accessory attachments D Flexible antenna Connect the supplied flexible antenna to the antenna connector. CAUTION: • NEVER carry the transceiver by holding the antenna. • DO NOT connect the antenna other than listed on page 36. • Transmitting without an antenna may damage the transceiver. -
Page 11: D Battery Pack
ACCESSORIES D Battery pack To attach the battery pack: Slide the battery pack on the back of the transceiver in the direc- tion of the arrow (q), then lock it with the battery release button. • Slide the battery pack until the battery release button makes a ‘click’ sound. -
Page 12: D Jack Cover
ACCESSORIES D Jack cover Attach the jack cover when the optional speaker-microphone is not used. To attach the jack cover: To detach the jack cover: q Attach the jack cover to the q Unscrew the screws with a [SP MIC] connector. phillips screwdriver. -
Page 13: Accessories
ACCESSORIES D Belt clip To attach the belt clip: q Release the battery pack if it is attached. w Slide the belt clip in the direction of the arrow until the belt clip is locked and makes a ‘click’ sound. To detach the belt clip: q Release the battery pack if it is attached. -
Page 14: Panel Description
PANEL DESCRIPTION ■ Front, top and side panels IC-F14S/F24S IC-F14/F24/F26-L Speaker Microphone q CHANNEL SW/SELECTOR • IC-F14S/F24S : Toggle the channel switch to select the pre-programmed channel 1 or 2. • IC-F14/F24/F26-L : Rotate the channel selector to select the pre-programmed memory channels. - Page 15 PANEL DESCRIPTION e LED INDICATOR (p. 8) ➥ Lights red while transmitting. ➥ Lights green while receiving a signal, or when the squelch is open. ➥ Lights/blinks orange when the matched 2/5-tone code is re- ceived, according to the pre-programming. r SPEAKER-MICROPHONE CONNECTOR [SP MIC] Connects the optional speaker-microphone, earphone, etc.
-
Page 16: Led Indicator
PANEL DESCRIPTION ■ LED indicator The LED indicator indicates several informa- tion as follows; (Ref.; R=Red, G=Green, O=Orange) • TX: Turns Red while transmitting a signal. • RX: Turns Green while receiving a signal. • Call LED (ON): When receiving a matched 2/5-tone. ED O N •... -
Page 17: Programmable Function Keys
■ Programmable function keys The following functions can be assigned to [Upper] and [Lower] programmable function keys. Consult your Icom dealer or system operator for details concern- ing your transceivers programming. If the programmable function names are bracketed in the following explanations, the specific key used to activate the function de- pends on programming. - Page 18 PANEL DESCRIPTION MONITOR KEY ➥ Mute and release the CTCSS (DTCS) or 2-tone squelch mute. Open any squelch/deactivate any mute while pushing this key. (LMR operation only) ➥ Activates one of (or two of) the following functions on each channel independently: (PMR operation only) •...
- Page 19 PANEL DESCRIPTION DTMF AUTODIAL KEY Push to transmit the programmed DTMF code. CALL KEYS Push to transmit a 2/5-tone code. • Call transmission is necessary before you call another station de- pending on your signalling system. • [Call A] and/or [Call B] keys may be available when your system employs selective ‘Individual/Group’...
-
Page 20: Conventional Operation
CONVENTIONAL OPERATION ■ Turning power ON ➥ Rotate [VOL] to turn power ON. [VOL] ■ Channel selection IC-F14S/F24S: Toggle [CHANNEL SWITCH] to se- lect the channel 1 or 2, or, push one of [MR-CH 1] to [MR-CH 4] key to select a channel directly. -
Page 21: Call Procedure
CONVENTIONAL OPERATION ■ Call procedure When your system employs tone signalling (excluding CTCSS and DTCS), the call procedure may be necessary prior to voice trans- mission. The tone signalling employed may be a selective calling system which allows you to call specific station(s) only and prevent unwanted stations from contacting you. -
Page 22: Receiving And Transmitting
CONVENTIONAL OPERATION ■ Receiving and transmitting NOTE: Transmitting without an antenna may damage the trans- ceiver. See p. 2 for antenna attachment. Receiving: q Rotate [VOL] to turn power ON. w Toggle [CHANNEL SWITCH] (IC-F14S/F24S), rotate [CHAN- NEL SELECTOR] (IC-F14/F24/F26-L) or push one of [MR-CH 1] to [MR-CH 4] key to select a channel. -
Page 23: D Transmitting Notes
CONVENTIONAL OPERATION D Transmitting notes • Transmit inhibit function The transceiver has several inhibit functions which restrict trans- mission under the following conditions: - The channel is in mute condition. - Channel is busy. - Un-matched (or matched) CTCSS is received. - The selected channel is a ‘receive only’... -
Page 24: Scrambler Function
CONVENTIONAL OPERATION ■ Scrambler function The optional voice scrambler units UT-109 (#01) and UT-110 (#01) provide high performance private communication between stations with the same scrambler codes. ➥ Push and hold [Scrambler] to turn the scrambler function ON. ➥ Push [Scrambler] to turn the scrambler function OFF. ■... -
Page 25: Man Down Emergency Call
CONVENTIONAL OPERATION ■ Man Down Emergency Call The man down emergency call function transmits an emergency call automatically, after the transceiver laying down in a horizontal position for a pre-set time period. (The optional UT-113 man down is required.) unit After the emergency call, the transceiver performs transmission and reception alternately with the following conditions: - Transmits the microphone signals. -
Page 26: Optional Unit Installation
OPTIONAL UNIT INSTALLATION ■ Optional unit installation Install the optional unit as follows: q Rotate [VOL] to turn the power OFF, and remove the battery pack. (p. 3) w Remove the unit cover. NOTE: Use a flat head screw driver or a similar flat instru- ment, and insert into the hollow of the chassis, then lift and take away the unit cover. -
Page 27: Scrambler Unit Installation
OPTIONAL UNIT INSTALLATION ■ Scrambler unit installation The following PC board modification is required when installing the optional UT-109 or UT-110. q Rotate [VOL] to turn the power OFF, and remove the battery pack. (p. 3) w Remove the unit cover as shown at left (Optional unit installation.) e Cut the pattern on the PCB at the TX mic circuit (MIC) and RX AF circuit (DISC) as shown below. -
Page 28: Battery Charging
BATTERY CHARGING ■ Caution • Misuse of Li-ion batteries may result in the following haz- ards: smoke, fire, or the battery may rupture. Misuse can also cause damage to the battery or degradation of battery performance. • Prior to using the battery pack for the first time, or after not using it for a long time, you must fully charge the pack. - Page 29 R WARNING! Immediately stop using the battery if it emits an ab- normal odor, heats up, or is discolored or deformed. If any of these conditions occur, contact your Icom dealer or distributor. R WARNING! Immediately wash, using clean water, any part of the body that comes into contact with fluid from inside the battery.
-
Page 30: D Charging Caution
CAUTION: DO NOT charge the battery outside of the speci- fied temperature range: BC-160/BC-171 (0˚C to +40˚C; +32˚F to +104˚F). Icom recommends charging the battery at +20˚C (+68˚F). The battery may heat up or rupture if charged out of the specified temperature range. -
Page 31: Optional Battery Chargers
BATTERY CHARGING ■ Optional battery chargers D Rapid charging with the BC-160 The optional BC-160 provides rapid charging of the Li-ion battery pack. Charging time: Approximately 3.5 hours for the BP-232H The following items are additionally required: • A power adapter (may be supplied with BC-160 depending on ver- sion) or DC power cable (OPC-515L/CP-23L) Power adapter Battery... -
Page 32: Regular Charging With The Bc
BATTERY CHARGING D Regular charging with the BC-171 The optional BC-171 provides regular charging of the Li-ion battery pack. Charging time: Approximately 4 hours for the BP-230N The following items are additionally required: • A power adapter (may be supplied with BC-171 depending on ver- sion) or the DC power cable (OPC-515L/CP-23L). - Page 33 BATTERY CHARGING D AD-106 installation The AD-106 must be installed into the BC-119N charger adapter or BC-121N before battery charging. ➥ C onnect the AD-106 and the BC-119N/BC- charger adapter 121N as below, then install the AD-106 into the holder space of the BC-119N or BC-121N with the supplied screws.
- Page 34 BATTERY CHARGING D Rapid charging with the BC-119N+AD-106 The optional BC-119N provides rapid charging of the Li-ion battery pack. Charging time: Approximately 3.5 hours for the BP-232H The following items are additionally required. • AD-106 (purchase separately) charger adapter • A power adapter (may be supplied with BC-119N depending on version) or the DC power cable (OPC-515L/CP-23L).
-
Page 35: Battery Charging
BATTERY CHARGING D Rapid charging with the BC-121N+AD-106 The optional BC-121N allows up to 6 battery packs to be simulta- neously charged. Charging time: Approximately 3.5 hours for the BP-232H The following items are additionally required. • Six AD-106 (purchase separately) charger adapters •... -
Page 36: Battery Case
BATTERY CASE ■ Optional battery case (BP-240) When using the optional battery case attached to the transceiver, install 6 AAA (LR03) size alkaline batteries as illustrated to the right. q Unhook the battery cover release hook (q), and open the cover in the direction of the arrow (w). - Page 37 BATTERY CASE Fig.1 BP-240 Fig.2 Fig.3...
-
Page 38: Swivel Belt Clip
SWIVEL BELT CLIP ■ MB-93 contents Qty. q Belt clip ..................1 w Base clip .................. 1 ■ To attach q Release the battery pack if it is attached. (p. 3) w Slide the base clip in the direction of the arrow until the base clip is locked and makes a ‘click’... - Page 39 SWIVEL BELT CLIP r Clip the belt clip to a part of your belt. And insert the transceiver into the belt clip until the base clip inserted fully into the groove. t Once the transceiver is locked in place, it swivels as illustrated below.
-
Page 40: To Detach
SWIVEL BELT CLIP ■ To detach q Turn the transceiver upside down in the direction of the arrow and pull out from the belt clip. - Page 41 SWIVEL BELT CLIP w Release the battery pack if it is attached. (p. 3) e Pinch the clip (q), and slide the base clip in the direction of the arrow (w). CAUTION: HOLD THE TRANSCEIVER TIGHTLY, WHEN HANGING OR DETACHING THE TRANSCEIVER FROM THE BELT CLIP. Otherwise the transceiver may not be attached to the holder or swivel properly if the transceiver is accidentally dropped and the base clip is scratched or damaged.
-
Page 42: Options
OPTIONS D BATTERY PACK Battery pack Voltage Capacity Battery life* 950 mAh (min.) BP-230N 7.4 V 9 hrs. 980 mAh (typ.) 1900 mAh (min.) BP-232N 7.4 V 18 hrs. 2000 mAh (typ.) 2250 mAh (min.) BP-232H 7.4 V 21 hrs. 2300 mAh (typ.) Battery case for AAA BP-240... - Page 43 OPTIONS • BC-171 + BC-147S desktop charger ac adapter For regular charging of battery packs. A power adapter is sup- plied with the charger depending on versions. Charging time: Approximately 11.5 hours for the BP-232H. Approximately 4 hours for the BP-230N. D OPTIONAL UNITS •...
- Page 44 FA-SC61UC: 380–520 MHz Approved Icom optional equipment is designed for optimal perform- ance when used with an Icom transceiver. Icom is not responsible for the destruction or damage to an Icom transceiver in the event the Icom transceiver is used with equip- ment that is not manufactured or approved by Icom.
-
Page 45: Options
OPTIONS D About VS-1L ptt case The VS-1L is a VOX/PTT unit for Icom handheld transceivers, and allows you hands-free operation. An optional headset (HS-94, etc.) is additionally required for op- eration. • The VOX (voice operated transmission) function starts transmission without pushing PTT switch when you speak into the microphone;... -
Page 46: Fcc Information
• Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications to this device, not expressly approved by Icom Inc., could void your authority to operate this transceiver under FCC regulations. - Page 47 MEMO...
- Page 48 A-6369D-1EX-o Printed in Japan © 2004–2015 Icom Inc. 1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan Printed on recycled paper with soy ink.
