Energysaver
RHFE-1004FTR
Customer
page 2
Installer
page 18
This appliance shall be installed in accordance with:
・Manufacturer's Instructions
・Local Authority Building Codes
・NZS 5261 Installation Code for Gas Burning Equipment
・Any other relevant Statutory Regulation
This appliance must be installed, serviced and removed by an authorised
person.
Ñ
Heater
Advertisement
Table of Contents
Related Manuals for Rinnai RHFE-1004FTR
Summary of Contents for Rinnai RHFE-1004FTR

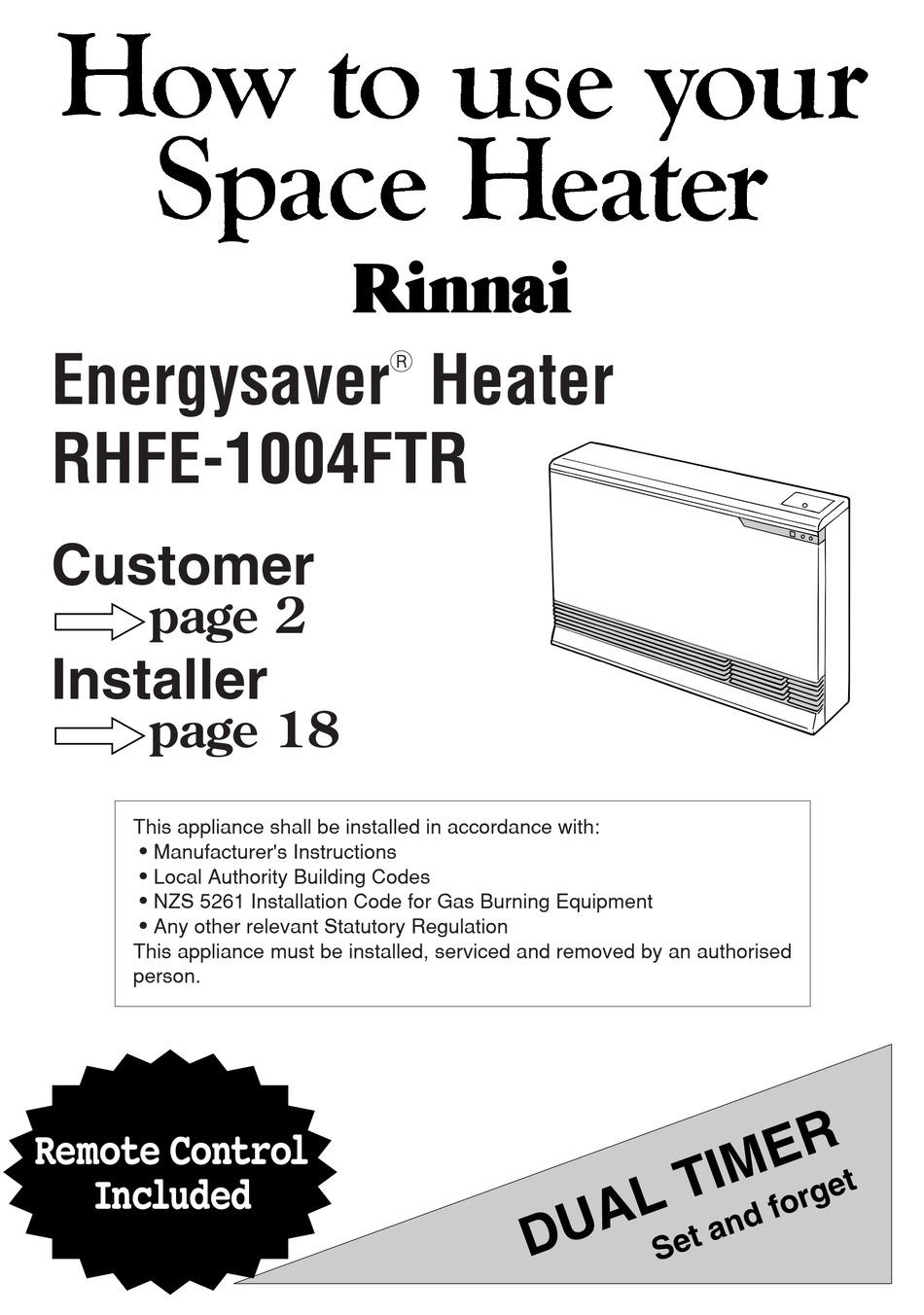

- Page 1 Ñ Energysaver Heater RHFE-1004FTR Customer page 2 Installer page 18 This appliance shall be installed in accordance with: ・Manufacturer's Instructions ・Local Authority Building Codes ・NZS 5261 Installation Code for Gas Burning Equipment ・Any other relevant Statutory Regulation This appliance must be installed, serviced and removed by an authorised...
-
