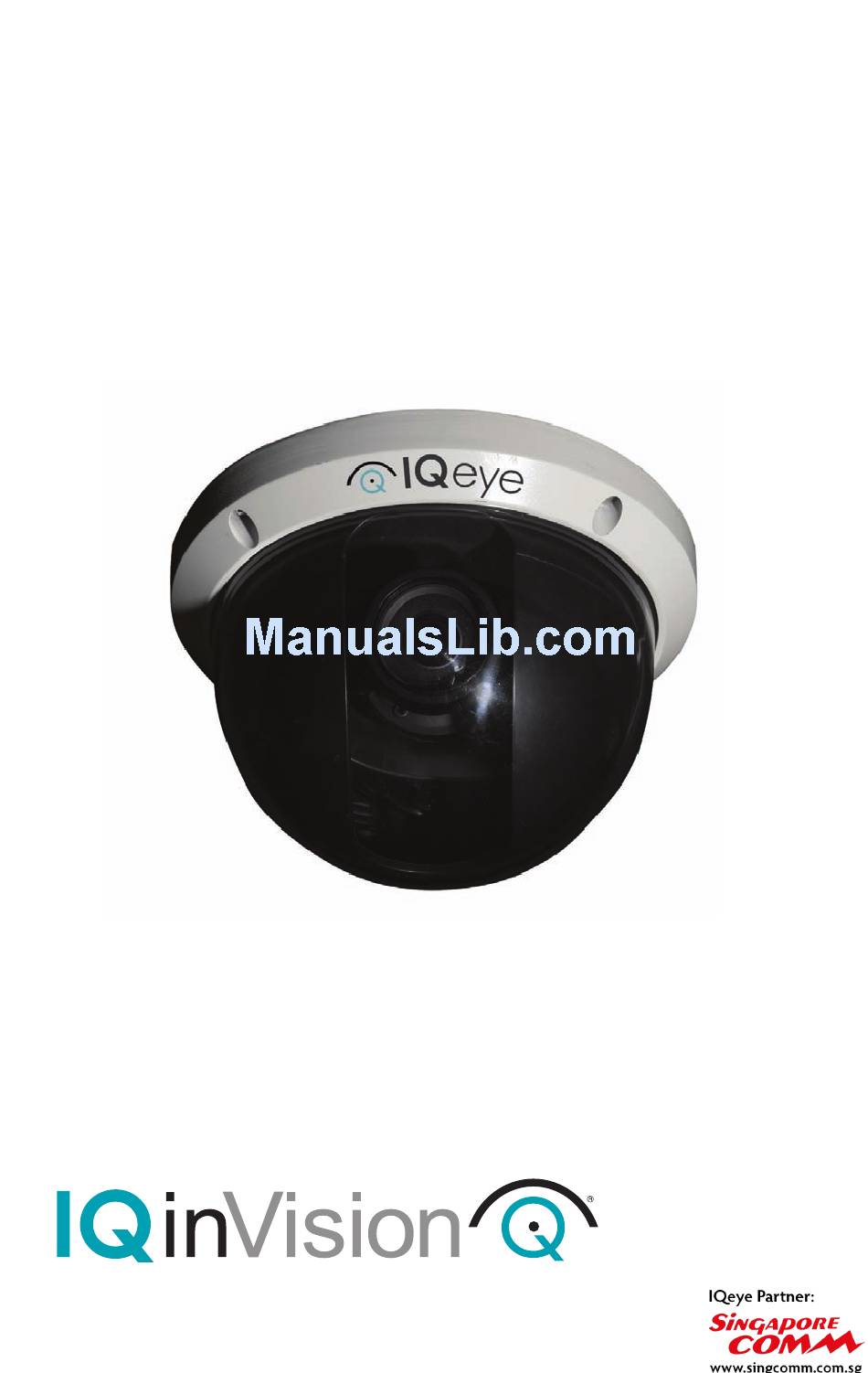

- Page 1 IQeye Alliance Series ™ Vandal-Resistant IP Camera Installation and Operating Instructions When you can’t afford to miss a thing.
-
Page 2: Table Of Contents
Important Safeguards CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN! CAUTION: BEWARE OF RISK OF ELECTRICAL SHOCK. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Due to product size and space limitations, this label may not appear on all products. The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage”... -
Page 3: Unpacking
• Dome Cover Leash Assembly • Mounting Hardware • Mounting Template 2. Service If the unit needs repair service or parts, the customer should contact IQinVision for authorization to return, as well as shipping instructions. IQinVision 33122 Valle Road San Juan Capistrano, CA 92675-4853 Phone: +1-949-369-8100 or 1-877-850-0805 (toll-free in U.S.) -
Page 4: Description
3. Description IQeye Alliance Series is an advanced network mini-dome camera available in multiple resolutions from VGA to multi-megapixel. With a variety of models to choose from the IQeye Alliance is ideal for applications requiring TRUE day/night functionality or H.264 compression for lower file sizes while still delivering high- quality images at megapixel resolutions, while Extreme Temperature models can withstand the harshest weather conditions. -
Page 5: Mounting Options
IQA1xSE, IQA1xNE, IQA1xNX, IQA2xSE, IQA2xNE Series Alliance Dome 1. Alliance Exterior Back Box 2. Alliance Camera & Lens Assembly 3. Alliance Shroud 4. Alliance Dome Cover Assembly Figure 5.2 6. Mounting Options Alliance camera can be mounted in one of two configurations, wall or ceiling. -
Page 6: Removal Of Dome Cover And Camera Assembly
7. Removal of Dome Cover and Camera Assembly 1. Using the supplied Torx T-20 security tool, loosen the four screws holding the dome cover to the rest of the Alliance camera assembly. Note that these screws are captively held to the dome cover and should not be removed from the dome cover trim ring. -
Page 7: Connect Camera
In addition, follow local regulations and laws that may have specific requirements governing the installation of security equipment on a ceiling tile surface. IQinVision also strongly recommends the use of a ceiling tile brace and other mounting hardware designed to secure your Alliance to the ceiling frame infrastructure. -
Page 8: Reboot And Factory Restore
RCA type, which can be found next to the reset/reboot buttons. This analog port utilizes IQinVision’s exclusive IQfocus utility which allows precise focusing of the camera. Note that IQfocus shuts off 5 minutes after Alliance is powered up or immediately after Alliance begins sending its digital stream. -
Page 9: Close Camera
12. Close Camera 1. Once field-of-view and focus have been verified, make sure all adjustment screws and locks are firmly tightened. 2. Remove analog test monitor RCA connection (if used). 3. Close shroud by pivoting it back against the camera, being careful not to brush the lens. -
Page 10: Warranty
(f) to consumables (such as storage media or batteries) (g) to products that have been purchased “as is” and IQinVision, the seller or the liquidator expressly disclaim their warranty obligation pertaining to the product, misuse,... - Page 11 PERSON OR FIRM ARE VOID. EXCEPT AS PROVIDED IN THIS WRITTEN WARRANTY AND TO THE EXTENT PERMITTED BY LAW, NEITHER IQINVISION NOR ANY AFFILIATES SHALL BE LIABLE FOR ANY LOSS, (INCLUDING LOSS OF DATA AND INFORMATION), INCONVENIENCE, OR DAMAGE, INCLUDING, BUT NOT LIMITED TO, DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, RESULTING FROM THE USE OR INABILITY TO USE THE IQINVISION PRODUCT, WHETHER RESULTING FROM BREACH OF WARRANTY OR ANY OTHER LEGAL THEORY.
- Page 12 When you can’t afford to miss a thing. ® 33122 Valle Road San Juan Capistrano, CA 92675-4853 USA phone +1.949.369.8100 www.iqeye.com fax +1.949.369.8105 901-0046 Rev C...
