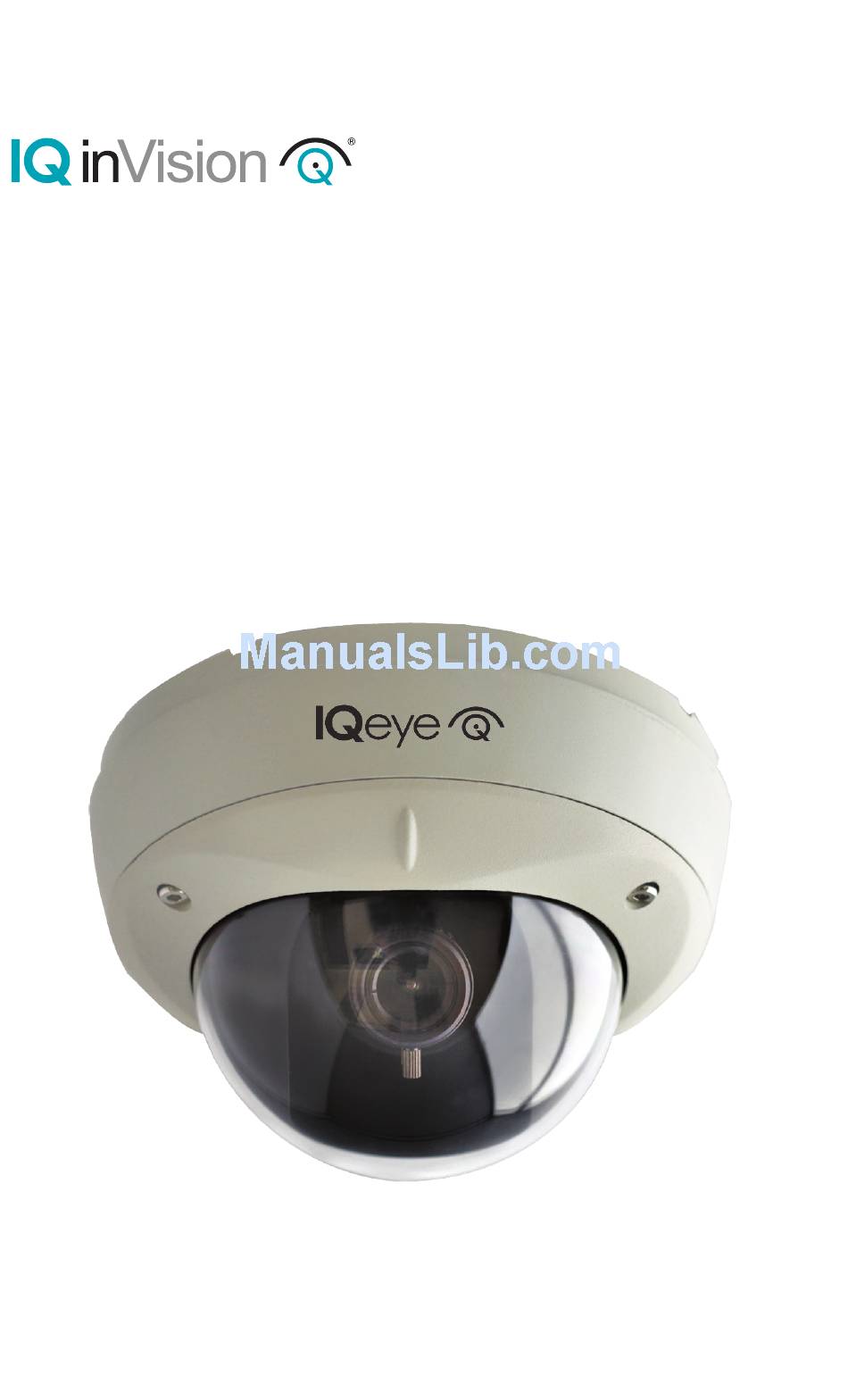

- Page 1 IQeye Alliance-mx Vandal-Resistant IP Camera Installation and Operating Instructions...
-
Page 2: Table Of Contents
Contents Unpacking Service Description Installation Parts List Mounting Options Removal of Dome Cover Mounting the Enclosure, Camera, and Lens Assembly Connect Camera Camera Positioning, Field-of-View Set-up and Focus Factory Reset Complete the Dome Camera Installation PC Configuration of Alliance-mx... -
Page 3: Unpacking
> Mounting Template > IQtools CD-ROM 2 Service If the unit needs repair service or parts, the customer should contact IQinVision for authorization to return, as well as shipping instructions. IQinVision 33122 Valle Road San Juan Capistrano, CA 92675-4853 Phone: +1-949-369-8100 or 1-877-850-0805 (toll-free in U.S.) -
Page 4: Description
4 Installation NOTE: This manual describes how to install the IQeye Alliance-mx camera system, and details interior / exterior wall and ceiling surface mounting options. Installations should be performed by qualified service personnel only in accordance with local and national code(s). -
Page 5: Mounting Options
3. Mounted to the optional interior / exterior wall mount adapter. NOTE: This guide covers installation of an Alliance-mx dome camera without the optional wall mount adapter. For guidance on mounting the Alliance-mx to the wall mount adapter, consult the wall mount adapter manual. -
Page 6: Removal Of Dome Cover
7 Removal of Dome Cover 1. Using the supplied Torx T-20 security wrench, loosen the three tamper-proof screws holding the dome cover to the enclosure assembly (Figure 7.1). Note that these screws are captive, and held to the dome cover. These screws should not be removed from the dome cover trim ring. - Page 7 NOTE: Be sure to use the supplied screws and sealing washers. Alternative washers will not seal the enclosure from moisture. Extra sealing washers are supplied. NOTE: When installing the Alliance-mx onto a ceiling tile, use hardware designed to secure the camera assembly to this surface, and ensure the ceiling tile material is secure.
-
Page 8: Connect Camera
3. Adjust the field-of-view and focus rings to achieve the desired focus as shown in Figure 10.2. NOTE: The lens on the Alliance-mx dome camera is fixed iris and therefore no iris adjustment is needed. When finished, tighten the thumbscrews on the lens. -
Page 9: Factory Reset
Figure 12.1 Figure 12.2 13 PC Configuration of Alliance-mx NOTE: The default user name for all IQeye devices is “root” and the default password is “system”. IQeye cameras are configured for DHCP and will have an IP address assigned if a DHCP server is on the network. - Page 10 NOTE: The default username is “root” and the default password is “system”. 6. To prepare the camera to serve the H.264 stream (Alliance-mx), select H.264 from the video format Figure 13.3 drop-down (Figure 13.5). To view the H.264 stream full screen (without “Live”...
- Page 11 For product warranty, additional documentation and technical information, please visit www.iqeye.com/support...
