Zte MF910 Getting Started

LEGAL INFORMATION
Copyright © 2014 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced,
translated or utilized in any form or by any means,
electronic or mechanical, including photocopying and
ZTE MF910
microfilm, without the prior written permission of ZTE
Let's go
Corporation.
Getting Started With Your Device The manual is published by ZTE Corporation. We reserve
the right to make modifications on print errors or update
specifications without prior notice.
Version No.: R1.0
Edition Time: June 10, 2014
Manual No.: 079584506591
NOTE:
Do not use the device in an enclosed environment or where
heat dissipation is poor. Prolonged work in such space
may cause excessive heat and raise ambient temperature,
which may lead to automatic shutdown of the device for
ZTE CORPORATION
your safety. In the case of such event, cool the device in a
NO. 55, Hi-tech Road South, ShenZhen, P.R.China
well-ventilated place before turning on for normal use.
Postcode: 518057
1 2
Getting to Know Your Device about 20 to 30 minutes. Contact customer service if
you still cannot power on the device after prolonged

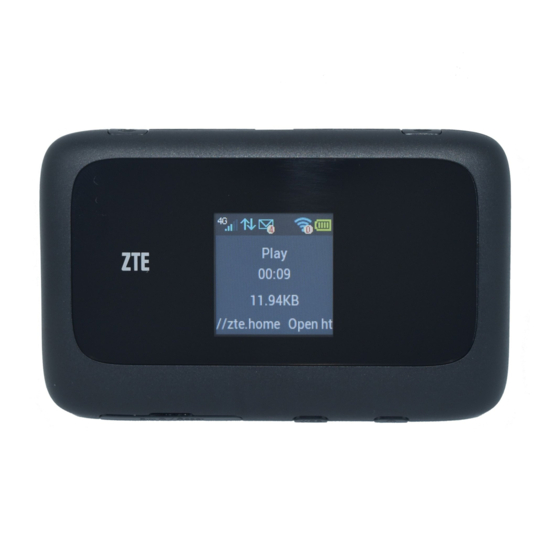

Appearance
charging.
The following figure is for your reference only. • Do not change the built-in rechargeable battery in
your device by yourself. The battery can only be
changed by ZTE or ZTE authorised service provider.
Indicators
When the device is powered on, the following icons may
be displayed on the LCD screen. For a description of the
icons, refer to the following table.
Icon Description
1. SIM (or USIM) Card Cover
Network signal strength.
Reset Button
2. WPS Button
Network type. The 4G or 3G icon is
3. Power Button
3G,4G displayed on the LCD screen depending on
4. LCD Screen
the connected network.
5. Charger/USB port
The user is in roaming status.
6. AUX Antenna Connector
7. Main Antenna Connector
Network in use.
NOTES:
• Press and hold the Power button for about 10 to 15 One or more new messages are received.
seconds to restart the device.
Wi-Fi status and the number of connected
• If the battery is extremely low, you may be unable to
users.
power on the device even when it is being charged.
In this case, try again after charging the device for Battery power.
3 4
Connection Scenario Installing Your Device
The device can access the Internet in two ways and allows
1. Open the SIM (or USIM) card cover.
multiple clients to surf on the Internet at the same time. The
NOTE: Do not remove the cover rudely, because it is
following figure is for your reference only.
connected with the device.
• 4G Mode: A SIM or USIM card can be used to access
the Internet.
2. Install a SIM (or USIM) card to the SIM (or USIM) card
slot. The following figure shows the correct installation
direction. You will hear a click when the SIM (or USIM)
• Internet Wi-Fi Mode: Your device can be connected to
card is locked in place.
a WLAN device (such as a hotspot device or wireless
IMPORTANT:
router) through Wi-Fi to access the Internet. The WLAN
Your device does not support the Micro/Nano SIM card or
device must be already connected to the Internet.
any other nonstandard SIM cards. To avoid damaging the
NOTE:
device, do not use those cards or any card holders.
Your device and the WLAN device must be in different
subnets.
3. Close the SIM (or USIM) card cover.
5 6
Connecting Your Device NOTE:
You can find the default SSID on the label of your device.
Using Wi-Fi
4. Enter the password, and then click Connect.
1. Power on your device.
2. Use the Wi-Fi application on a client to search for
available wireless networks.
NOTE:
You may need to enter the password for the Wi-Fi
connection. You can view the label on your device to get
the default password.
5. Wait until the client is connected to your device
NOTE:
successfully.
Set the client to obtain an IP address automatically. For the
detailed procedure, refer to Configuring Your PC. The client
gets an IP address, for example, 192.168.0.101.
3. Select the SSID of your device, and then click Connect.
7 8
Using a USB Cable
Mode Operation
1. Connect a client to your device through a USB cable.
Your device is automatically connected to
Automatic the Internet, and you can surf the Internet
through the client.
1. Log in to the webGUI configuration page,
2. Select Settings > Network Settings >
Dial-up Settings > WAN Connection
Manual
2. Power on your device. The operating system detects
Mode > Manual, and then click Apply.
and identifies new hardware, and automatically finishes
3. Select Home, and then click Connect or
the installation.
Disconnect.
NOTE:
NOTE:
If the system does not automatically launch installation,
To modify the parameters of your device, log in to the
you can run the installation program in the My Computer/
webGUI configuration page by visiting http://192.168.0.1 or
ZTEMODEM path.
http://m.home. The default password is admin.
3. Wait until the client is connected to your device
successfully. Internet Wi-Fi Mode
1. Log in to the webGUI configuration page.
Accessing the Internet
2. Select Settings > Internet Wi-Fi.
4G Mode 3. Set the Internet Wi-Fi Switch and Preferred Network,
After a client is successfully connected to your device, you and then click Apply.
can access the Internet in Automatic or Manual mode.
The default mode is Automatic.
9 10
