Planet HDVR-430 User Manual

4/8/16- channel hybrid digital video recorder
Hide thumbs Also See for HDVR-430:
Table of Contents

Advertisement

Quick Links

Download this manual

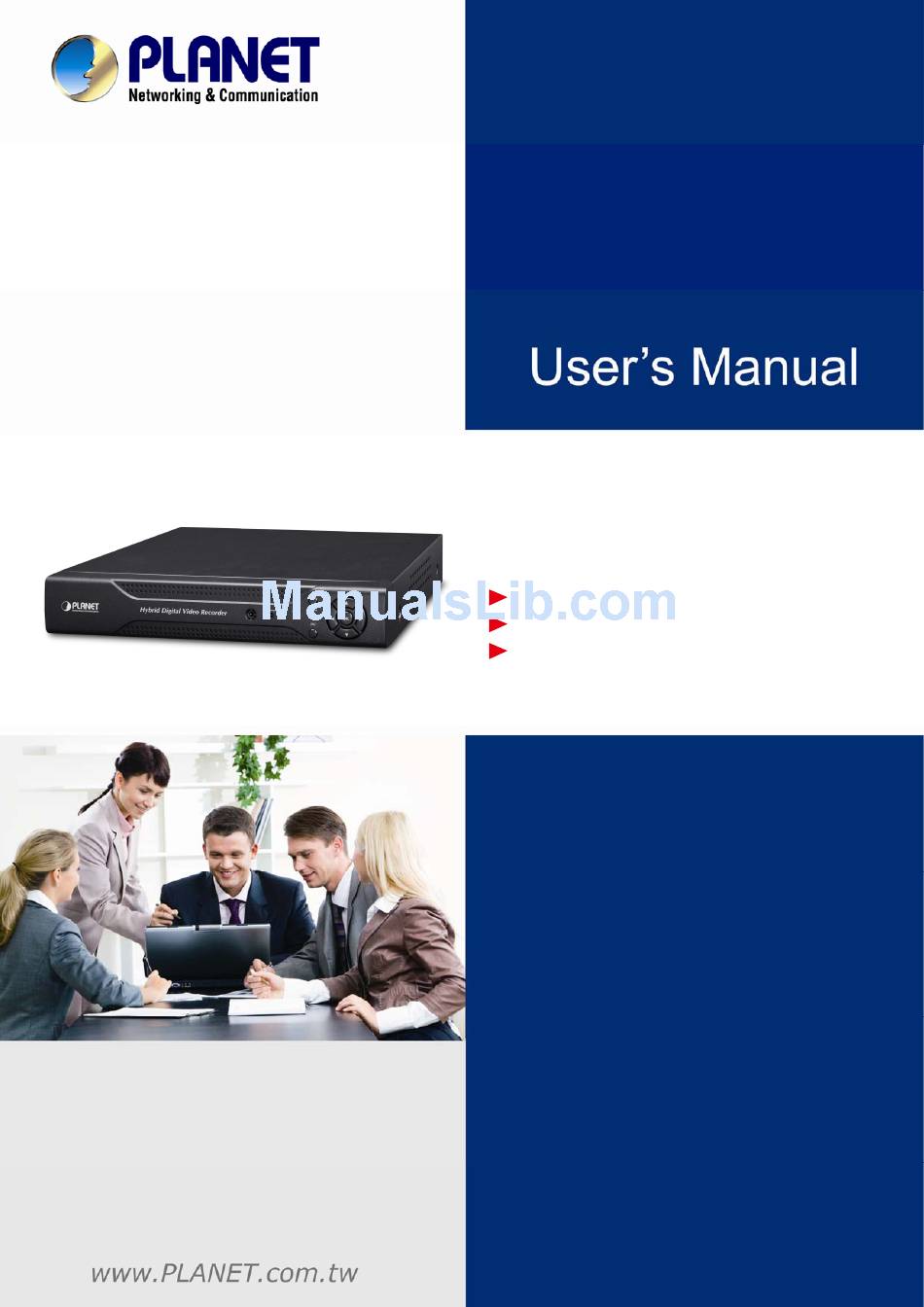

4 / 8 / 16-Channel Hybrid
Digital Video Recorder
HDVR-430
HDVR-830
HDVR-1630

Advertisement

Table of Contents
loading

Related Manuals for Planet HDVR-430

Summary of Contents for Planet HDVR-430

  • Page 1 4 / 8 / 16-Channel Hybrid Digital Video Recorder HDVR-430 HDVR-830 HDVR-1630...
  • Page 2 Further, PLANET reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.
  • Page 3 Do not dispose of WEEE as unsorted municipal waste; they should be collected separately. Revision User’s Manual of PLANET Hybrid Digital Video Recorder Model: HDVR series Rev: 1.0 (September 2014) Part No. HDVR-430 / HDVR-830 / HDVR-1630...

  • Page 4: Table Of Contents

      Hybrid Digital Video Recorder HDVR series    Table of Contents Chapter 1. Product Introduction ..............6 1.1 Package Contents ................6 1.2 Overview................... 6 1.3 Features ................... 9 1.4 Product Specifications ..............10 Chapter 2. Hardware Interface..............13 2.1 Physical Descriptions...............13 2.2 Hardware Installation ...............15 2.2.1 Installing Hard Disk ..............15 Chapter 3.
  • Page 5 5.7 Shut Down System ................86 Chapter 6. Web Remote Management ............87 6.1 Connecting to HDVR ...............87 6.2 Live View on Browser ..............88 Appendix A: Ping IP Address ................89 Appendix B: Planet DDNS Application............90 Appendix C: Configuring Port Forwarding Manually ........91  ...

  • Page 6: Chapter 1. Product Introduction

    1.2 Overview Efficient Solution for Integrating IP and Analog Cameras PLANET HDVR-430, HDVR-830 and HDVR-1630 are hybrid DVR recorders which are able to record video and data from both traditional analog and network IP security cameras. The advantage of a hybrid DVR recorder is that it lets you use currently installed analog security equipment along with newer network IP technology.
  • Page 7   Hybrid Digital Video Recorder HDVR series    With easy-to-remember DDNS feature, the HDVR can be placed either in LAN or WAN for easy installation. Besides, designed for various surveillance applications via RS485 interface, the HDVR is capable of controlling most types of protocols. For the purpose of general monitoring, the HDVR series offers app viewer, Web browser and CMS (Central Management Software) for multi-platform remote access, thus making it an ideal solution for various applications, such as retail stores, communities, SMBs, supermarkets, restaurants and...
  • Page 8   Hybrid Digital Video Recorder HDVR series    Hybrid Integration HDVR series allows each of its 4/8/16 channels to be connected to either an analog camera or an IP camera. If you already have analog cameras and want to add on a few IP cameras, the HDVR series is definitely your ideal choice.

  • Page 9: Features

      Hybrid Digital Video Recorder HDVR series    Real-time Remote Monitoring Video from the HDVR systems can be accessed with Web browsers and Android mobile devices. With remote monitoring, you can view live and recorded video "on the go", allowing for easier monitoring of your video deployments, and the ability to react quickly to alarms and events.

  • Page 10: Product Specifications

    Exports recorded video file to AVI format to USB device Instant event notification and recording Network Service Easy access with PLANET Dynamic DNS and built-in NTP server Supports PPPoE, DHCP and manual settings Easy Installation & Management ONVIF compliant for interoperability...
  • Page 11   Hybrid Digital Video Recorder HDVR series    1-ch D1 real-time HDVR-430 Analog cameras: 4-ch D1 / 4-ch 960H Analog cameras & IP cameras: 2-ch D1 & (1-ch 1080P + 1-ch 720P) IP cameras: 9-ch D1 / 8-ch 960H / 4-ch 720P / 2-ch...
  • Page 12   Hybrid Digital Video Recorder HDVR series    Network and Configuration TCP/UDP/HTTP/DHCP/DNS/DDNS/RTSP/NTP/UPnP/FTP/ Network Service SMTP Security Password protection, IP address filtering Triggers and Event System Events – No storage Storage Error Storage No Space Event Type Net Disconnection IP Conflict Camera Events – Motion Detection / Video Blind / Video Loss / DI / DO Show Message Buzzer Event Action...

  • Page 13: Chapter 2. Hardware Interface

    Press to enter main menu Return Press to return to previous page Direction & Control and Press to select and enter Enter HDVR-430 Real Panel Co nector Description ‐ Composite video signal（CVBS) input interface V1 V4 A1‐A4 The input interface of the audio signal Composite video（CVBS) output interface...
  • Page 14   Hybrid Digital Video Recorder HDVR series    HDVR-830 Real Panel Co nector Description Composite video signal（CVBS) input interface ‐ V1 V8 A1‐A4 The input interface of the audio signal Composite video（CVBS) output interface V-OUT A-OUT The output interface of the audio signal The network interface of RJ-45 HDMI The output interface of the HDMI video signal The output interface of the VGA video signal...

  • Page 15: Hardware Installation

      Hybrid Digital Video Recorder HDVR series    2.2 Hardware Installation 2.2.1 Installing Hard Disk 1. Remove the upper case. 2. Plug the HDD power cable and SATA cable into the slot of the PCBA board and the HDD respectively, making sure the connections are well done.  ...
  • Page 16   Hybrid Digital Video Recorder HDVR series    3. Please align the screw holes on the HDD with those on the HDVR case and secure them with the given screws. 4. After the HDD is secured, it should look like the one in the pictures (front and back) below:  ...
  • Page 17   Hybrid Digital Video Recorder HDVR series    5. Plug in the power supply and turn on the power supply switch. When power supply indicator is lit, it indicates the video recorder is turned on. After the startup, you will hear a beep.  ...

  • Page 18: Chapter 3. Connecting To The Hdvr

      Hybrid Digital Video Recorder HDVR series    Chapter 3. Connecting to the HDVR There are various ways you can connect to the HDVR and below are the suggested methods for different network setups: The HDVR is placed in a network with a DHCP server: Connect to the HDVR by using “HDVR Search Tool”...
  • Page 19   Hybrid Digital Video Recorder HDVR series    Please click “Next” to continue. Please click “Next” to start the installation.  ...
  • Page 20   Hybrid Digital Video Recorder HDVR series    Once the installation is completed, please click “Finish”. Please go to Start => Programs => HDVR Search Tool => HDVR Search Tool to run the search tool. The HDVR should be located and its IP address should be displayed. Select the HDVR and click on “Web Browse”, the program should automatically access the HDVR’s web administration page from your default browser.

  • Page 21: Accessing Hdvr With Its Default Ip Address

      Hybrid Digital Video Recorder HDVR series    You will be prompted for the HDVR’s login information before proceeding to modify device’s IP address via search tool. 3.2 Accessing HDVR with its default IP address The HDVR comes with a pre-configured static IP address “192.168.0.20”. However, it is only used when there is no DHCP server presented in the network.
  • Page 22   Hybrid Digital Video Recorder HDVR series    Login page of Web  ...

  • Page 23: Chapter 4. Basic Operation

      Hybrid Digital Video Recorder HDVR series    Chapter 4. Basic Operation This chapter provides setup instructions of the HDVR local display Interface. 4.1 Main / Live Viewing The main/live view is the first interface displayed once you access to the HDVR through local display.

  • Page 24: Desktop Shortcut Menu

      Hybrid Digital Video Recorder HDVR series    4.3 Desktop Shortcut Menu In preview mode, you can right-click mouse to get a desktop shortcut menu as shown below. The menu includes Main Menu, Record Mode, Playback, PTZ Control, High Speed PTZ, Alarm Output, Color Setting, Output Adjust, Logout and View Mode shift. Picture 4.2 Shortcut Menu 4.3.1 Main Menu The system main menu is shown below after login.
  • Page 25   Hybrid Digital Video Recorder HDVR series    Main menu>Record->Playback The hard disk that saves the video files must be set as read-write or read-only state. Picture 4.4 Video Playback Function Function Play/Pause Backward play Slow forward Fast forward Previous frame Next frame Previous file Next file Round play Full screen...

  • Page 26: Record

      Hybrid Digital Video Recorder HDVR series    Local zoom：When the system is in the single-window, full-screen playback mode, you can drag your mouse on the screen to select a section and then left-click mouse to realize local zoom. You can right-click mouse to exit. When the current resolution of the channel is over the limit, the system will show a Red “X”...

  • Page 27: Ptz

      Hybrid Digital Video Recorder HDVR series    Alarm is on according to configuration. Configuration Click the button to start alarming of selected channel in any Manual state. Click the button to stop alarming of selected channel in any Stop state. 4.3.5 PTZ PTZ control is a little different between hybrid mode and full digital mode. 1) Digital channel –...
  • Page 28   Hybrid Digital Video Recorder HDVR series    Click button to adjust the iris of the camera. Iris The current interface will be temporarily hidden after clicking it. Hide Control the PTZ rotation. Control of 8 directions is supported. Direction Control (4 directions on Front panel is supported) Full screen shows channel image.
  • Page 29   Hybrid Digital Video Recorder HDVR series    PTZ turned to the corresponding preset point. Value Input Field Picture 4.10 PTZ Control 2. Cruise between Points Multiple preset points connects to cruise lines, call cruise between points and the PTZ runs around on the line 1) Cruise Between Points Settings Cruise lines are connected by multiple preset points;...
  • Page 30   Hybrid Digital Video Recorder HDVR series    3. Scan PTZ also can work on the preset scan line repeatedly. 1) Scan setup Setting steps: Step 1: Refer to Picture 4.8; click the Setup button to enter scan setup interface. Step 2: Click the Scan button to input proper value in the scan value field. Step 3: Click the Start button to enter PTZ setup interface.
  • Page 31   Hybrid Digital Video Recorder HDVR series    Step 3: Complete setup, that is, the position of left and right boundaries When the left and right scans are in one horizontal position, the PTZ will rotate from the left scan along the reverse direction to the right scan. When the left and right scans are not in the same horizontal position, the PTZ will regard the end of the horizontal line where rotating from the left scan along the reverse direction to the right scan takes place.

  • Page 32: Color Setting

      Hybrid Digital Video Recorder HDVR series    8. Page Shift Refer to Picture 4.10; click the Page Shift button to leave for auxiliary function control interface as Picture 4.14 shows the setup of the auxiliary function where auxiliary number corresponds to auxiliary switch on the decoder. Picture 4.14 Auxiliary Function Control Choose auxiliary equipment to select Open or Close button to Intuitive Auxiliary...

  • Page 33: Output Adjust

      Hybrid Digital Video Recorder HDVR series    4.3.7 Output Adjust In hybrid mode, the output adjust function supports black vertical and black horizontal adjustment; in full digital mode, the function does not support the adjustment below. The function allows you to adjust TV output area parameters. You can go to the setup interface via desktop shortcut menu or enter [main menu]>...

  • Page 34: Window Switch

      Hybrid Digital Video Recorder HDVR series    Press to reboot the system. Reboot 4.3.9 Window Switch Previewing in single window, four windows, eight windows, nine windows or sixteen windows is up to your choice. Different video input numbers have different switchable previewed pictures.  ...

  • Page 35: Chapter 5. Main Menu

      Hybrid Digital Video Recorder HDVR series    Chapter 5. Main Menu 5.1 Main Menu Navigation Main Menu Sub Menu Function Set the recording configuration, recording type and Config recording time section Set recording search, recording play and video file Record Playback storage Detect backup device, format device, back up the Backup selective files Set motion detection alarm for selected input channel.
  • Page 36   Hybrid Digital Video Recorder HDVR series    Set other import functions like PPPOE, NTP, email, IP NetService filter, DDNS, FTP, UPnP and RTSP. Set channel name, time display, record status, alarm status, deflicking, transparency and resolution. GUI display Only analog channel can set channel name, region cover, time title, and channel title fold.

  • Page 37: Record

      Hybrid Digital Video Recorder HDVR series    Hard disk Display hard disk capability and recording time information Display code stream information System information Log information Search and clear log information according to log types Version Display firmware, MAC address information, etc. Logout Logout, shut down or reboot 5.2 Record Operations related to record includes Recording, Playback, Backup and Screen Shot (only for hybrid mode and full analog mode).

  • Page 38: Playback

      Hybrid Digital Video Recorder HDVR series    Record 1-30 seconds before the action. (time length is decided Pre-record by the code stream) Schedule: Record according to the set video type (common, detection and alarm) and time section. Manual: Click the button and the channel is recording no Record Mode matter what state it is in.

  • Page 39: Backup

      Hybrid Digital Video Recorder HDVR series    5.2.3 Backup You can back up the video files to external storage through setup. The storage must be installed before the file backup. If the backup is finished, the video can be displayed individually. Picture 5.2 Backup Detect the storage connected with the DVR such as hard disk Detect or universal disk.

  • Page 40: Alarm Function

      Hybrid Digital Video Recorder HDVR series    Picture 5.3 Backup Clear the file information. Remove Show the file information satisfying the set file attributes. Configure the backup file format based on requirement. H.246 Backup Format or AVI format can be selected. Click the play button to start the backup and click the pause Start/Pause button to stop the backup.

  • Page 41: Motion Detection

      Hybrid Digital Video Recorder HDVR series    5.3.1 Motion Detection When system detects the motion signal that reaches the set sensitivity, the motion detection alarm is on and the linkage function is turned on. Motion detection function is different between hybrid mode and full digital mode. The details are shown below. Digital channel: It not only enables motion detection function at the local side, but also enables the remote device that is connected.
  • Page 42   Hybrid Digital Video Recorder HDVR series    Choose the set motion detection channel. Channel The motion detection function is on when the box is checked. Enable Six options are provided in the sensitivity. Only the motion detection in hybrid mode/ full Sensitivity analog mode has this function of setting sensitivity, and also only the analog channel can set region.
  • Page 43   Hybrid Digital Video Recorder HDVR series    Picture 5.6 Set the Time Section PTZ Activation: Set the PTZ activation when the alarm is turned on. In hybrid mode, PTZ links to the related PTZ information of analog channel. While in digital channel model, PTZ links to the related PTZ information on the remote device which is connected.

  • Page 44: Video Blind

      Hybrid Digital Video Recorder HDVR series    Buzz: When alarm happens, the device will send out a buzz. 5.3.2 Video Blind When the video image is influenced by the environment such as poor brightness or reaching the set sensitivity parameter, the camera mask function and the linkage function are turned on. Though the same as motion detection function, video blind is different between hybrid mode and full digital mode.

  • Page 45: Video Loss

      Hybrid Digital Video Recorder HDVR series    Video Blind in Full Digital (NVR) Mode Picture 5.8 Video Blind Set method: Refer to Motion Detection in Chapter 5.3.1. 5.3.3 Video Loss When the equipment cannot obtain the channel video signal, the video loss alarm and the linkage function are turned on.

  • Page 46: Alarm Input

      Hybrid Digital Video Recorder HDVR series    Hybrid mode: It only enables video loss function at the local side. Video Loss in Hybrid (HVR) Mode Video Loss in Full Digital (NVR) Mode Picture 5.9 Video Loss Set method: refer to Motion Detection in Chapter 5.3.1. 5.3.4 Alarm Input When the equipment obtains the external alarm signal, the alarm function is turned on.
  • Page 47   Hybrid Digital Video Recorder HDVR series    local side. When alarm information occurs, it will link to the related setting functions at the same time. The "Advanced" button is the same as right click. Alarm Input in Hybrid (HVR) Mode Alarm Input in Full Digital (NVR) Mode Picture 5.10 Alarm Input Set method: refer to Motion Detection in Chapter 5.3.1.

  • Page 48: Alarm Output

      Hybrid Digital Video Recorder HDVR series    5.3.5 Alarm Output Refer to Chapter 4.3.4. 5.3.6 Abnormal Analyzing and inspecting the current software and hardware of the device. When some abnormal events happen, the device will take an action immediately, such as show message and buzzer.
  • Page 49   Hybrid Digital Video Recorder HDVR series    *Only the 1st channel of full analog mode and hybrid mode can support this function. If this function is enabled, then video blind is invalid. Picture 5.12 Intelligent Analysis Only the 1st channel has maximum resolution of 1080P in full Channel Number analog(DVR) mode and hybrid(HVR) mode Tick it to enable the video analysis function, and then go for...
  • Page 50   Hybrid Digital Video Recorder HDVR series    function and use mouse to fix two or more points, and then connect them to form a line or an irregular region. After that, a box of prohibited direction options will come out and choose one of them. Right-click mouse and click Yes to return the previous page. Click Yes while alarm rule setting is finished.
  • Page 51   Hybrid Digital Video Recorder HDVR series    Rules: Click setting and enter the setting page of rule. Next, right-click mouse, choose add function, use mouse to fix several points and then connect them to form an irregular region. At last, right-click mouse and click Yes button to return the previous page. Click Yes while alarm rule setting is finished.

  • Page 52: System Setup

      Hybrid Digital Video Recorder HDVR series    When a moving object crosses this warning line, alarm will be triggered (refer to Picture 5.16) based on video analysis function when enabled. When algorithm rule is PEA, the alert way in the rule is Gordon whose prohibited direction is bidirectional. Picture 5.16 The Alarm Image in a Video Analysis 5.4 System Setup In system setting, the functions contain General, Encode, Network, Net service, GUI display,...
  • Page 53   Hybrid Digital Video Recorder HDVR series    Choose the date format: YMD, MDY, DMY. Date Format Choose list separator of the date format. Date Separator Choose time format: 24-hour or 12-hour. Time Format Support multiple languages up to 29. Arabic, Czech, English, Finnish, Greek, Indonesian, Italian, Japanese, Portuguese, Russian, Thai, T-Chinese, Language S-Chinese, Turkish, Brazilian, Bulgarian, Farsi, French,...

  • Page 54: Encode Setup

      Hybrid Digital Video Recorder HDVR series    Picture 5.19 DST (Date) 5.4.2 Encode Setup HDVR provides encode setting in hybrid mode or full analog mode. The encode setting is for analog channel only. Set the video/audio code parameter: video file, remote monitoring and so on. Set every main stream parameter in the left part, and set the extra stream parameter in the right part.

  • Page 55: Network Setup

      Hybrid Digital Video Recorder HDVR series    P:1 frame/s~25 frame/s; N: 1 frame/s~30 frame/s Frame Rate You can choose limited code stream or variable code stream. When you choose the variable code stream, there are six Bit Rate Type image quality options. Under the limited code stream, you can choose the code stream manually.
  • Page 56   Hybrid Digital Video Recorder HDVR series    Obtain IP address automatically. DHCP Enable Set the IP address. Default: 192.168.0.20. IP Address Set the subnet mask code. Subnet Mask Set the default gateway. Gateway Domain Name Server. It translates the domain name into IP address.

  • Page 57: Netservice

      Hybrid Digital Video Recorder HDVR series    5.4.4 NetService Choose the network service option and click the set button to configure the advanced network functions or double-click the service button to configure the parameters. Picture 5.22 Net Service Setup PPPoE Setup Picture 5.23 PPPoE Setup Input the user name and password that ISP (Internet service provider) provides.

  • Page 58: Ntp Setup

      Hybrid Digital Video Recorder HDVR series    NTP setup The NTP server must be installed in the PC. Picture 5.24 NTP Setup Input the IP address installed on NTP server. Server IP Default: 123. You can set the port according to NTP server. Port London GMT+0 / Berlin GMT +1 / Cairo GMT +2 / Moscow GMT +3 / New Delhi GMT +5 / Bangkok GMT +7 / Hong Kong...

  • Page 59: Email Setup

      Hybrid Digital Video Recorder HDVR series    Email setup If the alarm is turned on or the alarm linkage photos are taken, send an email about the alarm information and the photos to appointed address. Picture 5.25 Email Setup Email server address. It could be an IP address or domain name.
  • Page 60 Picture 5.26 IP Filter Setup DDNS Picture 5.27 DDNS Setup It is the abbreviation of dynamic domain name server. DDNS service providers; PLANET DDNS is free to register DDNS Type Provide the domain name registered by DDNS. Domain Name  ...

  • Page 61: Ftp Setup

      Hybrid Digital Video Recorder HDVR series    Provide the account registered by DDNS. User Name Provide the password registered by DDNS. When the DDNS is successfully configured and starts, you can Password connect the domain name in the IE address column to visit. The DNS setup must be configured correctly in the network setup.
  • Page 62   Hybrid Digital Video Recorder HDVR series    The directory of uploaded files Dir Name The user should have authority to upload files. ARSP Startup DDNS server to add devices and manage it in the DDNS server Picture 5.29 ARSP Setup Choose "DNS" Type It means the function is activated when the box is checked Enable IP address of DDNS server...

  • Page 63: Alarm Server

      Hybrid Digital Video Recorder HDVR series    Please set up server before using DDNS. Alarm Server When alarm occurs, the system will transmit alarm information to alarm server. Picture 5.30 Alarm Server Setup Choose "General" Protocol Type It means the function is activated when the box is checked Enable IP address of alarm server Server IP...
  • Page 64   Hybrid Digital Video Recorder HDVR series    Mobile Monitor Setup To have live view of the device via mobile, please make a router mapping of this port and use CMS to monitor and operate it by protocol. Picture 5.31 Mobile Monitor Setup It means the function is activated when the box is checked Enable It’s a port of mobile monitoring where router mapping can be Port...

  • Page 65: Gui Display

      Hybrid Digital Video Recorder HDVR series    Router will automatically distribute TCP port for the device. TCP Port The port is needed when live view is made via CMS. Router will automatically distribute Mobile port for the device. Mobile Port The port is needed when live view is made via mobile. RTSP The setting is for live view via browsers (Safari, Firefox, and Chrome) and VLC software.
  • Page 66   Hybrid Digital Video Recorder HDVR series    Encode output: In the network surveillance and video file mode, it includes channel title, time display, channel display, record status, alarm status, transparency and region cover information. The GUI Display Page in Hybrid (HVR) Mode and All Analog (DVR) Mode The GUI Display Page in Full Digital (NVR) Channel Output Mode Picture 5.34 Output Mode Click the channel name modify button and enter the channel...
  • Page 67   Hybrid Digital Video Recorder HDVR series    Display the system channel number in the surveillance Channel Display window. Display the system recording status in the surveillance window. Record Status Display the system alarm status in the surveillance window. Alarm Status Choose the background image transparency. The range is Transparency 128~255.

  • Page 68: Ptz / Rs485 Device

      Hybrid Digital Video Recorder HDVR series    5.4.6 PTZ / RS485 Device When system is in hybrid mode or full digital mode, PTZ device and RS485 device are listed on PTZ configure page. Picture 5.35 PTZ Configuration Choose input channel of dome camera. Channel Choose the corresponding dome protocol.
  • Page 69   Hybrid Digital Video Recorder HDVR series    When in full digital mode, only RS485 device is shown below. Picture 5.36 RS485 Device Choose related protocol of brand model (e.g. DaHua) Protocol Set with corresponding address, default is 1 Address Choose baud rate that related device use, default is 115200 Baud rate Include 5-8 options, default is 8 Data bits...

  • Page 70: Rs232

      Hybrid Digital Video Recorder HDVR series    5.4.7 RS232 Picture 5.37 Serial Port Setting Common serial port is used to debug and update program or Function set up specific serial port. Choose the corresponding baud rate length. Baud rate Include 5-8 options. Data Bits Include 2 options.

  • Page 71: Tour

      Hybrid Digital Video Recorder HDVR series    5.4.8 Tour Set the patrol display. The tour mode is enabled when box is checked. You can choose the single-view, four-view, six-view of single mode tour or hybrid mode tour. Picture 5.38 Tour Configure Set the patrol switch interval. The set range is 5-120 seconds Interval Set the interval to shift alarm tour;...
  • Page 72   Hybrid Digital Video Recorder HDVR series    Channel Manage Page in All Analog (DVR) Mode Channel Manage Page in Hybrid (HVR) Mode / Full Digital (NVR) Mode Picture 5.39 Channel Manage Interface  ...
  • Page 73   Hybrid Digital Video Recorder HDVR series    Digital channel: Single Link Page of Digital Channel Multi-link Page of Digital Channel Picture 5.40 Digital Channel Interface Select channel title Channel When the digital channel is enabled, user is able to configure Enable related settings for the channel. When the function is enabled, the time of channel will be same Time as the device.
  • Page 74   Hybrid Digital Video Recorder HDVR series    If you want to remove the device, you can select specific Delete device and click delete button. Click add button to add new device. Picture 5.41 Remote Channel Configure Default configuration title of the device. User can modify it if Configure Name necessary.
  • Page 75   Hybrid Digital Video Recorder HDVR series    After clicking the Search button, the list will show all the devices in the network. User can choose any device that you prefer. Picture 5.42 Device Searched List Channel Status: Channel status is to show the status of all digital channels which are connected. The status information includes Max Resolution, This Resolution and Connection Status.
  • Page 76   Hybrid Digital Video Recorder HDVR series    When a channel is added to device but it is not enabled, you will see as shown below. Channel status interface in full digital (NVR) mode (One of the channel is without device.) When the current resolution is over the max resolution that the channel supports, then a red “X”...

  • Page 77: Advanced

      Hybrid Digital Video Recorder HDVR series    Channel Type: In this series of product, the HDVR provides full analog channel mode, hybrid mode and full digital mode in channel type. Different models have different channel modes. User can shift the mode freely if necessary. 5.5 Advanced Manage tools menu provides HDD manage, account manage, online user, output adjust, auto maintain, and upgrade functions.

  • Page 78: Account

      Hybrid Digital Video Recorder HDVR series    Picture 5.43 HDD Manage 5.5.2 Account Manage the user purview. 1. The character length is 8 bytes at most for the following user and user team name. The blank ahead or behind the character string is invalid. The middle blank in the character string is valid.
  • Page 79   Hybrid Digital Video Recorder HDVR series    Modify Password: Modify the user password. You can set 1-6 bit password. The blank ahead or behind the character string is invalid. The middle blank in the character string is valid. The user who possesses the user control purview can modify his/her own or other user’s password.
  • Page 80   Hybrid Digital Video Recorder HDVR series    Add Group: Add a user group and set the purview. There are 33 different purviews: shut down the equipment, real-time surveillance, playback, record setting, video backup, etc. Picture 5.47 Add Group Delete User: Delete the current user. Choose the user and click delete user button. Delete Group: Delete the current group.

  • Page 81: Online User

      Hybrid Digital Video Recorder HDVR series    5.5.3 Online User Check the information of network user that is connected with local device. Tick the selected user to break up connection,（make √ at the box) , and then the user will be frozen after connection is stopped.

  • Page 82: Restore

      Hybrid Digital Video Recorder HDVR series    5.5.6 Restore Reset the NVR’s settings to their factory default values. You can choose the items according to your requirements. Picture 5.51 Resore to Default 5.5.7 Upgrade Picture 5.52 Upgrade Upgrade: Choose USB interface. Upgrade file: Choose the upgrade file.  ...

  • Page 83: Device Info

      Hybrid Digital Video Recorder HDVR series    5.5.8 Device Info Provide information of device interface like audio in, alarm in/out. Picture 5.53 Device Information 5.5.9 Import / Export Users can export the log info and the configure file from device to connected flash stick, and also can import related configure file from flash stick to settings, which greatly bring convenience to the customers.

  • Page 84: Hdd Info

      Hybrid Digital Video Recorder HDVR series    5.6.1 HDD Info Display the hard disk state and it lists hard disk type, overall capability, residual capability, the recording time, etc. Picture 5.55 HDD Info Tips: Symbol “○” means that the hard disk is normal; symbol “X” means that the hard disk is broken down;...

  • Page 85: Bps

      Hybrid Digital Video Recorder HDVR series    5.6.2 BPS Display the code stream (Kb/S) and hard disk capability (MB/H) in real time. It displays as the wave sketch map. Picture 5.56 BPS 5.6.3 Log Log information includes system operation, configuration operation, data management, alarm affair, recording operation, user management, and file management, etc.

  • Page 86: Version

      Hybrid Digital Video Recorder HDVR series    5.6.4 Version Display the basic information such as hardware information, software version, issue date, serial number and NAT status. Picture 5.58 Version Information 5.7 Shut Down System Refer to Chapter 4.3.8.  ...

  • Page 87: Chapter 6. Web Remote Management

      Hybrid Digital Video Recorder HDVR series    Chapter 6. Web Remote Management The NVR is able to be viewed from Internet Explorer when the network is available. You can have live view, playback and most of the functions that are the same as those of the NVR system.

  • Page 88: Live View On Browser

      Hybrid Digital Video Recorder HDVR series    Please login your username and password to see the “Bit Rate Type” window shown below: You may select bit rate type you would like to view on your computer. The bit rate type can impact bandwidth consumption on IE. 6.2 Live View on Browser On the main page, the Web user interface provides playback, log, main config, local config and logout functions.

  • Page 89: Appendix A: Ping Ip Address

      Hybrid Digital Video Recorder HDVR series    Appendix A: Ping IP Address The ping (Packet Internet Groper) command is used to detect whether a specific IP address is accessible by sending a packet to the specific address and waiting for a reply. It’s also a very useful tool to confirm whether or not Internet camera is installed or if the IP address conflicts with any other device over the network.

  • Page 90: Appendix B: Planet Ddns Application

    Hybrid Digital Video Recorder HDVR series    Appendix B: Planet DDNS Application Configuring PLANET DDNS Steps: Step 1 Enable DDNS option through accessing web page of the HDVR. Step 2 Select on DDNS server provided, and register an account if you do not use yet.

  • Page 91: Appendix C: Configuring Port Forwarding Manually

    Manually set up the device with a fixed IP address, for example, 192.168.0.100. 2. Accessing the Router with Your Web browser The following steps generally apply to any router that you have on your network. PLANET WNRT-620 is used as an example to clarify the configuration process. Configure the initial settings of the router by following the steps outlined in the router’s Quick Installation Guide.
  • Page 92   Hybrid Digital Video Recorder HDVR series    3. Opening/Setting Virtual Server Ports to enable remote image viewing The firewall security feature is built into the router and most routers prevent users from accessing the video from the device over the Internet. The router connects to the Internet over a series of numbered ports.
