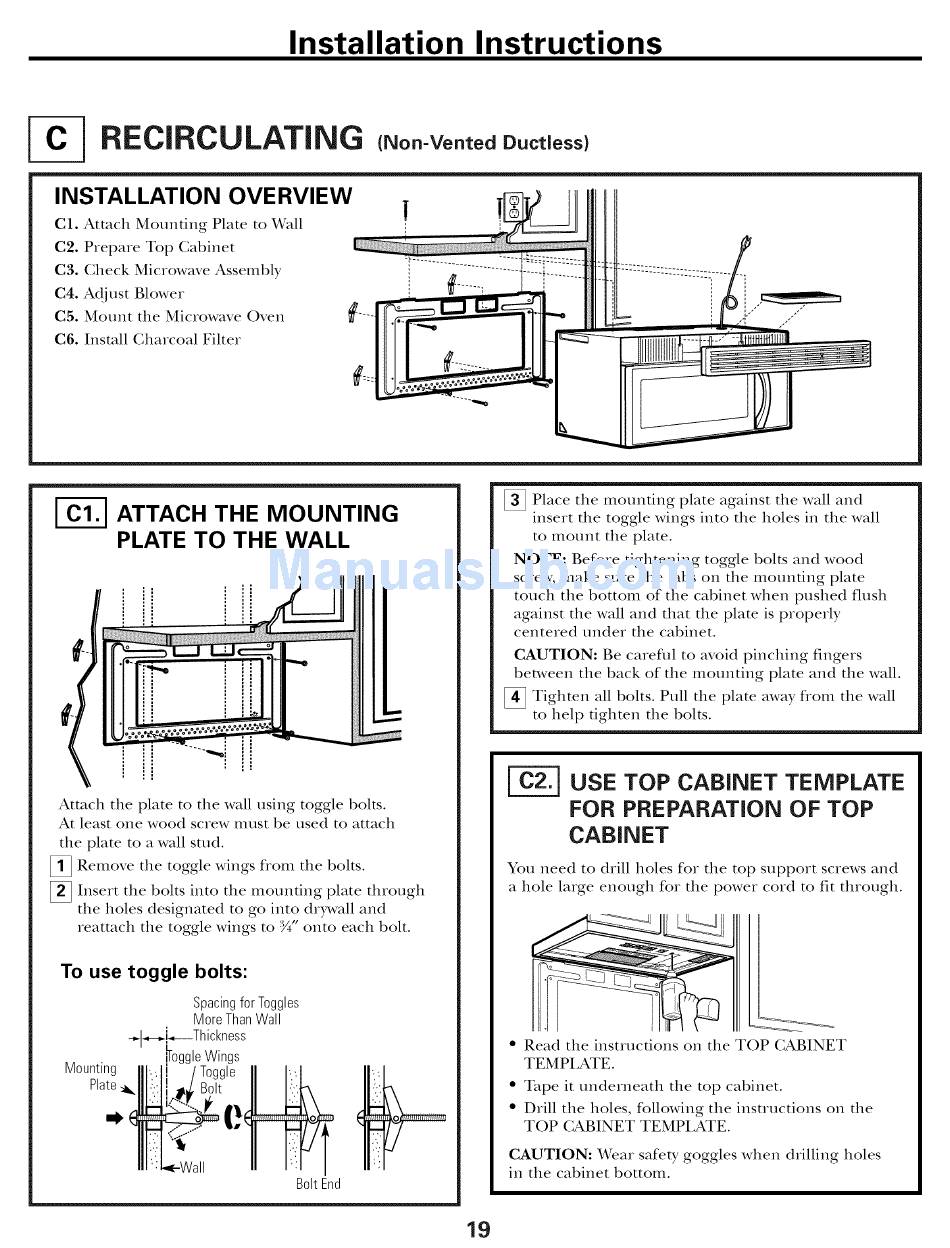

Installation Instructions
RECIRCULATING
INSTALLATION OVERVIEW
C1. Attach Mounting Plate to Wall
C2. Prepare Top Cabinet
C3. Check Microwave Assembly
C4. Adjust Blower
C5. Mount the Microwave Oven
C6. Install Charcoal Filter
(Non-Vented Ductless}
I-_ ATTACH THE MOUNTING
PLATE TO THE WALL
\
===
Attach the plate to the wall using toggle bolts.
At least one wood screw illtlst be used to attach
the plate to a wall stud.
[]Remove the toggle wings flom the bolts.
[]Insert the bolts into the mounting plate through
the boles designated to go into drDvall and
reatmch the toggle wings to SA" onto each bolt.
To use toggle bolts:
Spacingfor Toggles
MoreThanWall
+l_.i_---Thickness
Wings
Mounting
Plate
Bolt End
_ Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall
to I_lotlnt the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure the robs on the mounting plate
touch the bottom of the cabinet when pushed flush
against the wall and that the plate is properly
centered under the cabinet.
CAUTION: Be carefid to avoid pinching fingers
between the back of the mounting plate and the wall.
_ Tighten all bolts. Pull the plate away flom the wall
to help tighten the bolts.
USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
• Read the instructions on the TOP CABINET
TEMPI_ATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wear safeb, goggles when drilling holes
in the cabinet bottom.
19
