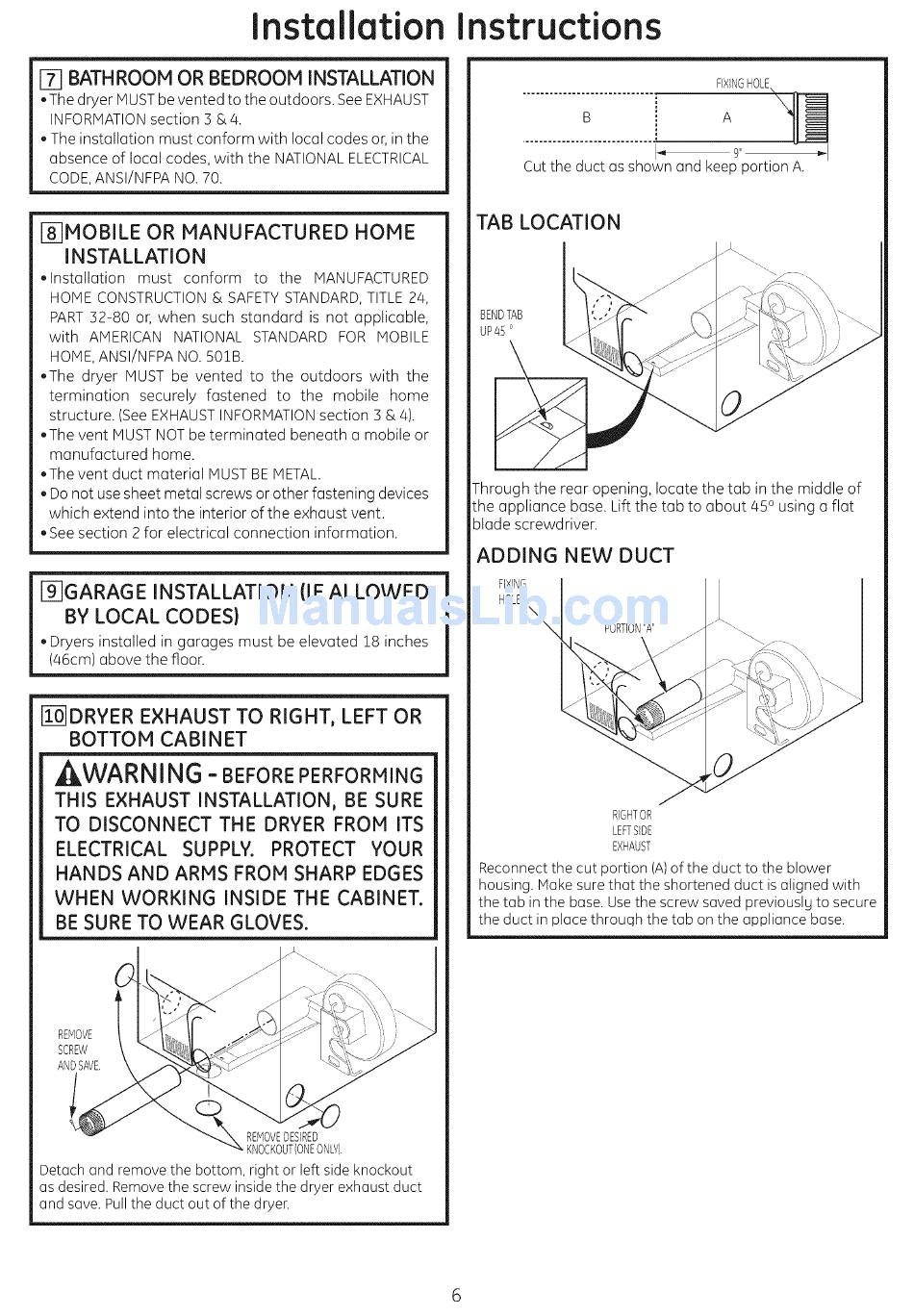

Installation
_7 BATHROOM
OR BEDROOM
iNSTALLATION
.Thedryer MUST beventedtotheoutdoors. See EXHAUST
INFORMATION section 3 &4.
. The installation must conform with local codes or, in the
absence of local codes, with the NATIONALELECTRICAL
CODE,ANSI/NFPA NO. 70.
[87MOBILE OR MANUFACTURED
HOME
INSTALLATION
.Installation
must conform
to the MANUFACTURED
HOME CONSTRUCTION & SAFETYSTANDARD, T ITLE 24,
PART32-80 or, when such standard is not applicable,
with AMERICAN NATIONAL STANDARD FOR MOBILE
HOME,ANSI/NFPA NO. 50lB.
.The dryer MUST be vented to the outdoors with the
termination
securely fastened to the mobile home
structure. (See EXHAUSTINFORMATION section 3 & 4).
.The vent MUST NOTbe terminated beneath a mobile or
manufactured home.
.The vent duct material MUSTBE METAL.
. Do not use sheet metal screws or other fastening devices
which extend into the interior of the exhaust vent.
. See section 2 for electrical connection information.
[_]GARAGE INSTALLATION
{IF ALLOWED
BY LOCAL CODES}
. Dryers installed in garages must be elevated 18 inches
(46cm) above the floor.
_07DRYER EXHAUST TO RIGHT, LEFT OR
BOTTOM
CABINET
AWARNING - BEFORE PERFORMING
THiS EXHAUST iNSTALLATiON, BE SURE
TO DISCONNECT THE DRYER FROM iTS
ELECTRICAL
SUPPLY.
PROTECT
YOUR
HANDS AND ARMS FROM SHARP EDGES
WHEN WORKING INSIDE THE CABINET.
BE SURE TO WEAR GLOVES.
REMOVE
SCREW
ANDSAVE
REMOVE
DESIRED
KNOCKOUT(ONE
ONLY).
Detach and remove the bottom, right or left side knockout
as desired. Remove the screw inside the dryer exhaust duct
and save. Pull the duct out of the dryer.
Instructions
FIXING H OLE
B
A
Cut the duct as shown and keep portion A.
TAB LOCATION
BEND T AB
UP 45 o
Through the rear opening, locate the tab in the middle of
the appliance base. Lift the tab to about 450 using a flat
blade screwdriver.
ADDING NEW DUCT
FIXING
HOLE
PORTION
"A"
RIGHTOR
LEETSIDE
EXHAUST
Reconnect the cut portion (A)of the duct to the blower
housing. Make sure that the shortened duct is aligned with
the tab in the base. Usethe screw saved previouslg to secure
the duct in place throuqh the tab on the appliance base.
6
