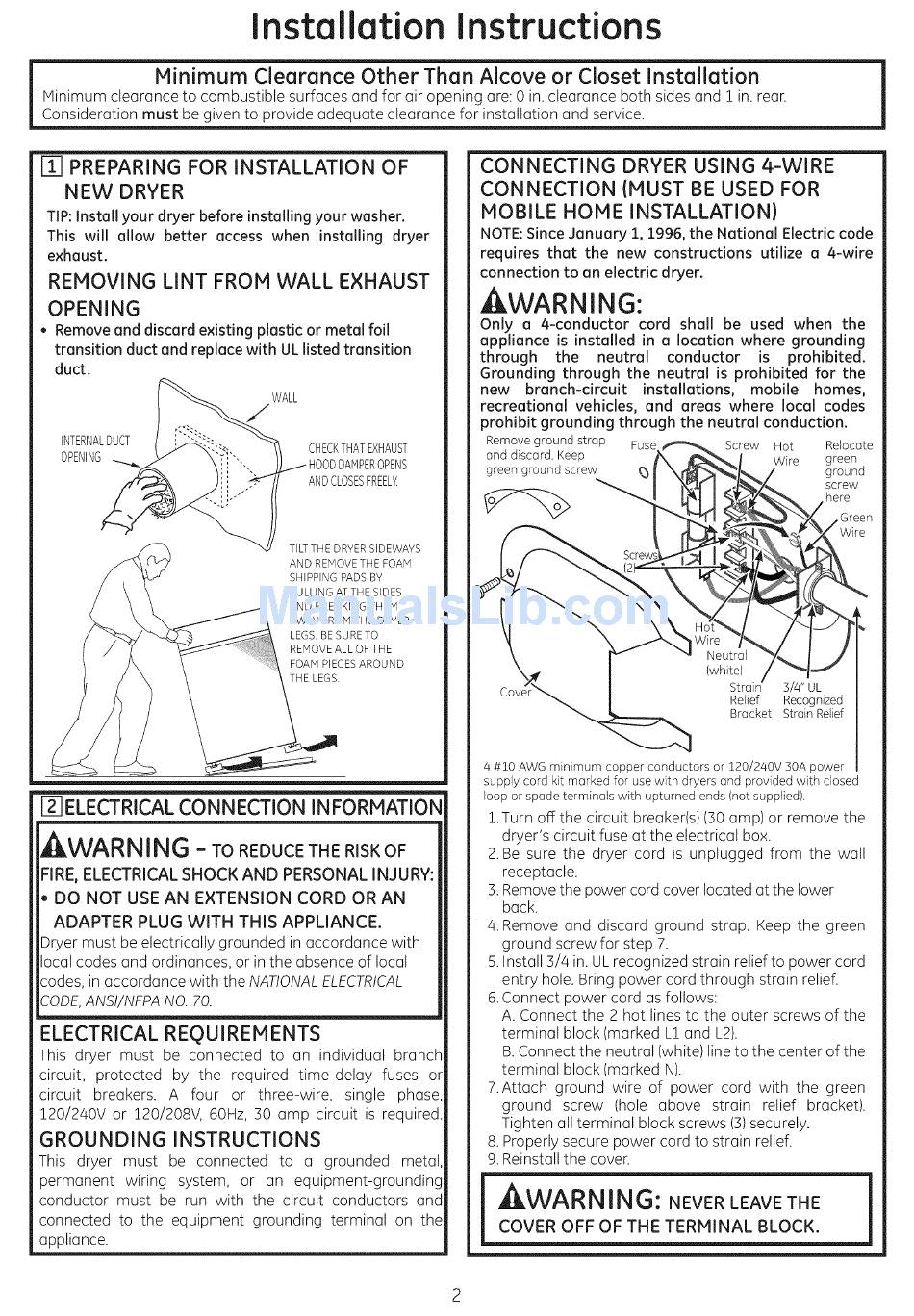

Installation
instructions
Minimum
Clearance
Other Than Alcove or Closet Installation
Minimum clearance to combustible surfaces and for air opening are: 0 in. clearance both sides and 1 in. rear.
Consideration must be given to provide adequate clearance for installation and service.
[]
PREPARING FOR INSTALLATION
OF
NEW DRYER
TIP: Install your dryer before installing your washer.
This will allow better access when installing
dryer
exhaust.
REMOVING LINT FROM WALL EXHAUST
OPENING
• Remove and discard existing plastic or metal foil
transition duct and replace with UL listed transition
duct.
WALL
INTERNAL DUCT
CHECK THATEXHAUST
OPENING
HOOD DAMPER OPENS
AND CLOSES FREEL_
TILT THE DRYER SIDEWAYS
AND REMOVE THE FOAM
SHIPPING PADS BY
PULLING ATTHE SIDES
AND BREAKING THEM
AWAY FROM THE DRYER
LEGS. BE SURE TO
REMOVE ALL OF THE
FOAM PIECESAROUND
THE LEGS.
[]_]ELECTRICALCONNECTION INFORMATION
WARNING
- ToREDUCE
THE RISK O F
FIRE, ELECTRICAL SHOCK AND PERSONAL iNJURY:
, DO NOT USE AN EXTENSION
CORD OR AN
ADAPTER PLUG WITH THiS APPLIANCE.
Dryer must be electrically grounded in accordance with
local codes and ordinances, or in the absence of local
codes, in accordance with the NATIONALELECTRICAL
CODE,ANSI/NFPANO. 70.
ELECTRICAL REQUIREMENTS
This dryer must be connected to an individual branch
circuit, protected
by the required time-delay
fuses or
circuit
breakers. A four
or three-wire,
single phase,
120/240V or 120/208V, 60Hz, 30 amp circuit is required.
GROUNDING
INSTRUCTIONS
This dryer must be connected
to a grounded
metal,
permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and
connected to the equipment grounding terminal on the
appliance.
CONNECTING
DRYER USING 4-WIRE
CONNECTION
{MUST BE USED FOR
MOBILE HOME INSTALLATION)
NOTE:Since January 1, 1996, the National Electric code
requires that the new constructions
utilize a 4-wire
connection to an electric dryer.
At WARNING:
Only a 4-conductor
cord shall be used when the
appliance is installed in a location where grounding
through
the
neutral
conductor
is
prohibited.
Grounding through the neutral is prohibited
for the
new
branch-circuit
installations,
mobile
homes,
recreational
vehicles, and areas where local codes
prohibit grounding through the neutral conduction.
Remove ground strap
Fuse _Screw
Hot
Relocate
and discard. Keep
hK_
__
_
Wire
green
green ground screw
eaJ X_I_/
ground
.
. _
screw
_"__
_._..._X
here
\
\ \
Hot",,,/
/'-l J"
r
)ve*r'_
I
Relief
Recognized
_-_Z:_
Bracket
Strain Relief
/4 #ZO AWG minimum copper conductors or 120/2/40V 30A power
supply cord kit marked for use with dryers and provided with closed
loop or spade terminals with upturned ends (not supplied).
1.Turn off the circuit breaker(s)(30 amp) or remove the
dryer's circuit fuse at the electrical box.
2. Be sure the dryer cord is unplugged from the wall
receptacle.
3. Remove the power cord cover located at the lower
back.
4. Remove and discard ground strap. Keep the green
ground screw for step 7.
5. Install 3/4 in. UL recognized strain relief to power cord
entry hole. Bring power cord through strain relief.
6. Connect power cord as follows:
A. Connect the 2 hot lines to the outer screws of the
terminal block (marked L1 and L2).
B. Connect the neutral (white) line to the center of the
terminal block (marked N).
7.Attach ground wire of power cord with the green
ground screw (hole above strain relief bracket).
Tighten all terminal block screws (3)securely.
8. Properly secure power cord to strain relief.
9. Reinstall the cover.
,dELW_K|_|r_!o:
NEVER
LEAVE THE
COVER
OFF OF THE TERMINAL
BLOCK.
