Summary of Contents for Ryobi AirStrike R18ST

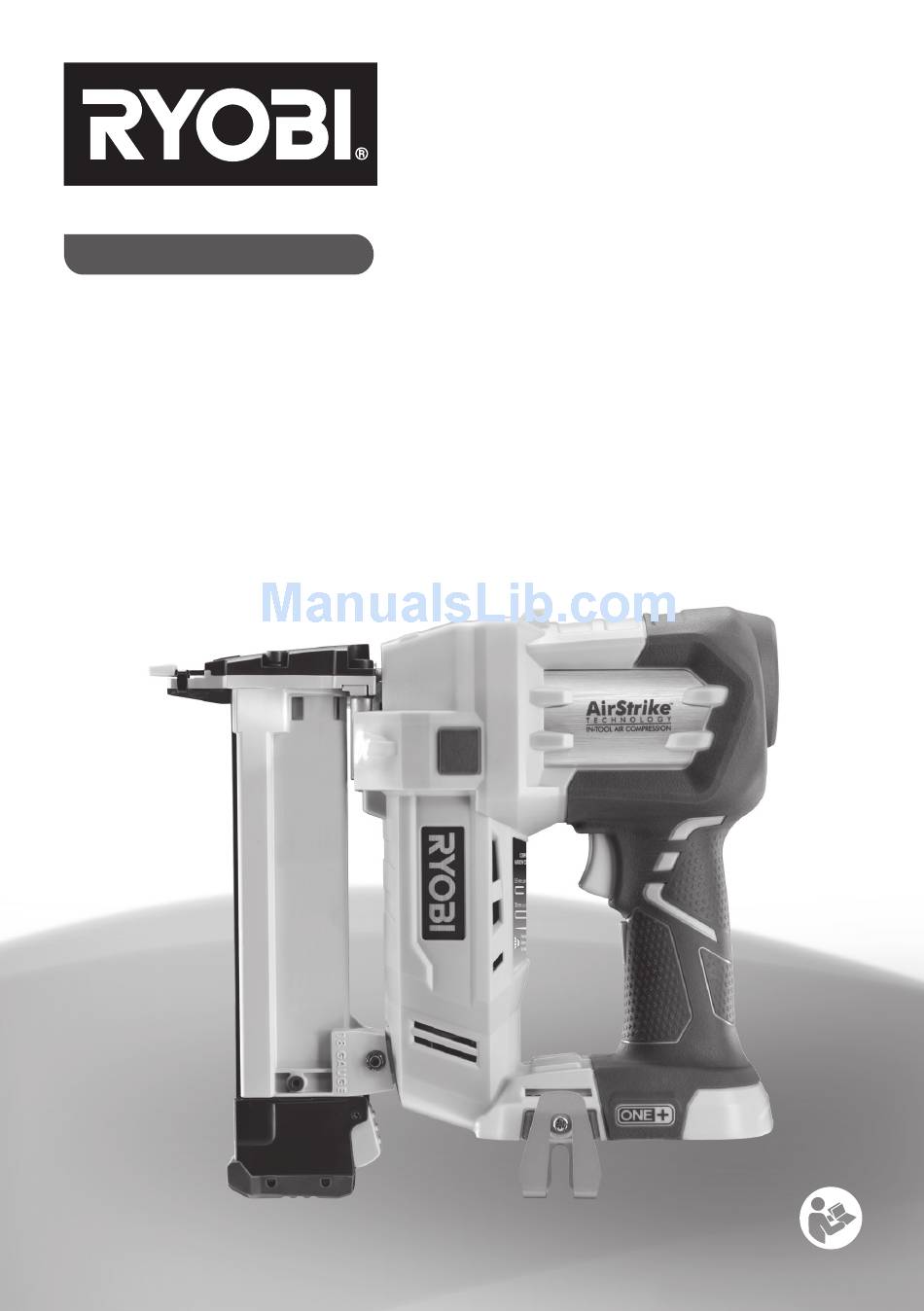

- Page 1 ORIGINAL INSTRUCTIONS 18V AirStrike™ STAPLER R18ST...
- Page 2 Important! It is essential that you read the instructions in this manual before operating this machine. Subject to technical modifications.
- Page 3 Fig. 1...
- Page 4 Fig. 2 Fig. 3 Fig. 4 Fig. 5...
- Page 5 Fig. 6 Fig. 7 Fig. 8 Fig. 9...
- Page 6 Fig. 10 Fig. 11 Fig. 12...
- Page 7 Safety PERSONAL SAFETY GENERAL POWER TOOL SAFETY WARNINGS a) Stay alert, watch what you are doing and use common sense when operating a power WARNING tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol Read all safety warnings and all instructions.
- Page 8 Safety starting the power tool accidentally. STAPLER SAFETY WARNINGS d) Store idle power tools out of the reach of children and do not allow persons unfamiliar WARNING with the power tool or these instructions The product is not intended for use by persons (including to operate the power tool.
- Page 9 Safety safety masks for use over eyeglasses or standard ■ Do not operate this tool if it does not contain a safety glasses that provide protection against flying legible warning label. particles both from the front and side. Always use eye ■...
- Page 10 Safety ■ During normal use the tool will recoil immediately ■ Chair rail after driving a fastener. This is a normal function of ■ Brickmold the tool. Do not attempt to prevent the recoil by holding the stapler against the work. Restriction to the recoil ■...
- Page 11 Safety Construction ruler WARNING A construction ruler located along the left side of the If any parts are damaged or missing do not operate this magazine allows the operator to make quick measurements product until the parts are replaced. Use of this product while working.
- Page 12 Safety To install battery pack: WARNING ■ Place battery pack in the tool. Align raised rib inside tool Remove the battery pack before removing staples or with groove on battery pack. clearing a jammed staple. Failure to do so could result in ■...
- Page 13 Safety WARNING WARNING Never wedge or hold back the workpiece contact Remove the battery pack before removing staples or mechanism during operation of the tool. Doing so could clearing a jammed staple. Failure to do so could result in result in possible serious injury. serious personal injury.
- Page 14 Safety BATTERY PACK REMOVAL AND PREPARATION FOR ENVIRONMENTAL PROTECTION RECYCLING Recycle raw materials instead of disposing WARNING of as waste. The machine, accessories packaging should sorted Upon removal, cover the battery pack’s terminals with environmental-friendly recycling. heavy-duty adhesive tape. Do not attempt to destroy or disassemble battery pack or remove any of its components.
- Page 15 PRODUCT SPECIFICATIONS BATTERY AND CHARGER Voltage 18 V Model Compatible battery pack Compatible charger (not included) (not included) Magazine capacity 105 staples Lithium-Ion RB18L13 BCS618G Staple type Narrow crown staple RB18L15 BCL14181H RB18L26 BCL14183H Staple size (length) 10 mm - 38 mm RB18L40 BCL1418IV* (3/8”...
- Page 16 Techtronic Industries (Australia) Pty. Ltd. Level 1, 660 Doncaster Road Doncaster, VIC 3108, Australia Techtronic Industries New Zealand Ltd. 18-26 Amelia Earhart Avenue Mangere, Auckland 2022, New Zealand 961152306-01...
