Step-by-step installation instructions.
*For drain line options see Filtration Drain Connection Installations section.
16

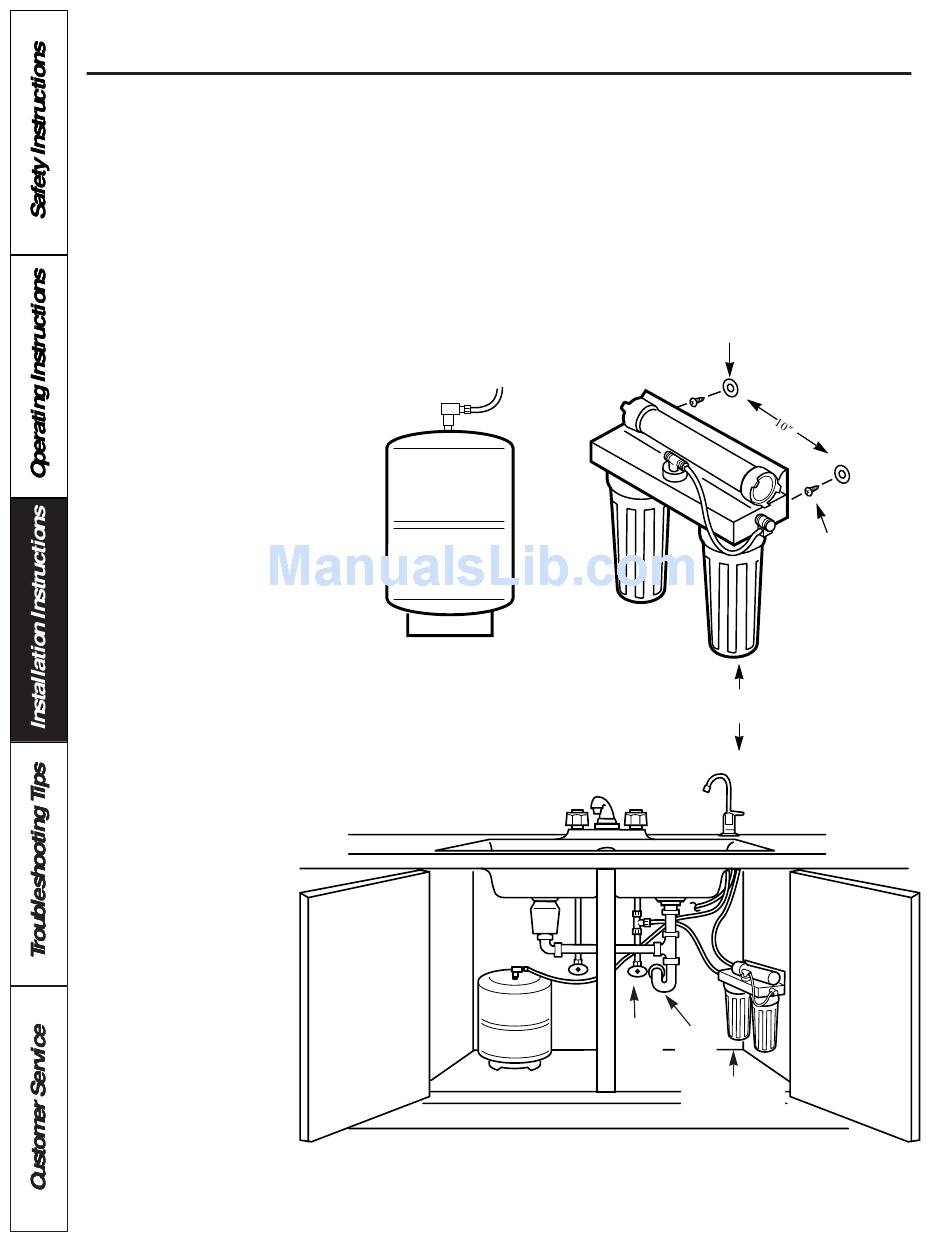

Reverse Osmosis System Assembly and Storage Tank Installation
1. Hold the Reverse Osmosis assembly up to the wall surface where you will install it. Mark
locations for the hanger washers and screws.
2. Fasten the hanger washers to the wall surface. Wood screws are included for fastening to
a wood surface. Provide other screws as needed.
3. Hang the Reverse Osmosis assembly on the hanger washers.
4. Connect the tubing to the storage tank: Run the length of 3 ⁄ 8² tubing (marked
"STORAGE TANK") from the tee fitting on the Reverse Osmosis module to the tank
shutoff valve. Use Teflon Tape
Fig. 6A.
Storage tank
Fig. 6B.
to prevent leaks.
TM
Storage tank
Cold
water
supply
Hanger
washer
(2)
Screw
(2)
2² minimum clearance
for changing cartridges
RO faucet
Sink
p-trap
Reverse Osmosis
system
