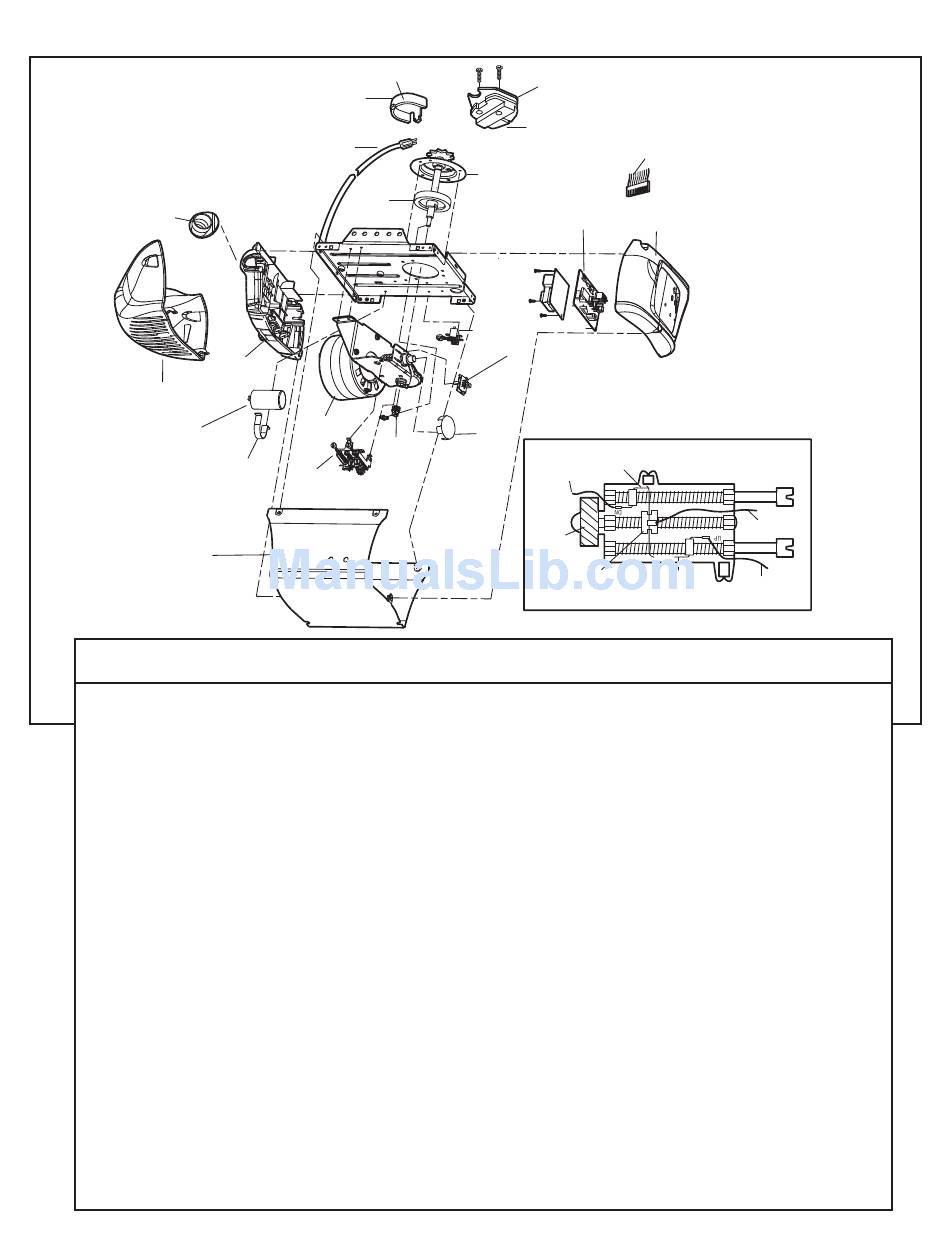

Motor Unit Assembly Parts

6
7
8
12
KEY PART
NO. NO.
1a 31D380
1b 41A4208-2
2 41C4206-2
41C4798-2
3 41A2817
4 41B4245
5 41A5484-7
6 4A1344
7 108D79
8 30B532
9 12A373
10 41A3150
11 41D3058
12 41A5525-1
13 81C253
14 41A5640
Model 1215EM
a 1
4
3
19
11
13
14
9
DESCRIPTION
Sprocket cover (Model 1215EM)
Chain spreader (Model 1225EM)
Gear and sprocket assembly
(Model 1225EM)
Gear and sprocket assembly
(Model 1215EM) Complete with:
Spring washer, thrust washer,
retaining ring, bearing plate, roll pins
(2), drive gear and worm gear,
helical gear w/retainer and grease
Drive/worm gear kit w/grease, roll
pins (2)
Line cord
End panel w/all labels
Light socket
Lens
Capacitor - 1/2 HP
Capacitor bracket
Terminal block w/screws
Universal replacement motor &
bracket assembly
Cover
Limit switch drive & retainer
Limit switch assembly
Model 1225EM
1b
18
2
17
10
16
15
(Down)
Brown
Contact
Wire
Drive
Gear
Center Limit
Contact
KEY PART
NO. NO. DESCRIPTION
15 41A2822-1
16 41C4398A
17 41A5629-1AM Receiver logic board assembly.
41A5629-2 AM Receiver logic board assembly.
18 41C5497
41C5498
19a 41D180-1
19b 41D181
41A2826
41A2825
971LM
973LM
12A20
29B137
41A2828
114A3657
38
5
LIMIT SWITCH ASSY.
Grey
Wire
(Up)
Yellow
Contact
Wire
Interrupter cup assembly
RPM sensor assembly
(Model 1225EM)
(Model 1215EM)
High voltage wire harness
assembly.
Low voltage wire harness
assembly.
End panel w/all labels (1225EM)
End panel w/all labels (1215EM)
NOT SHOWN
Motor shaft bearing kit
Opener assembly hardware kit
(includes screws not designated
by a number in illustration)
Single-Button remote control
3-Button remote control
3V CR2032 Lithium battery
Transmitter visor clip
Emergency release rope & handle
assembly
Owner's Manual
