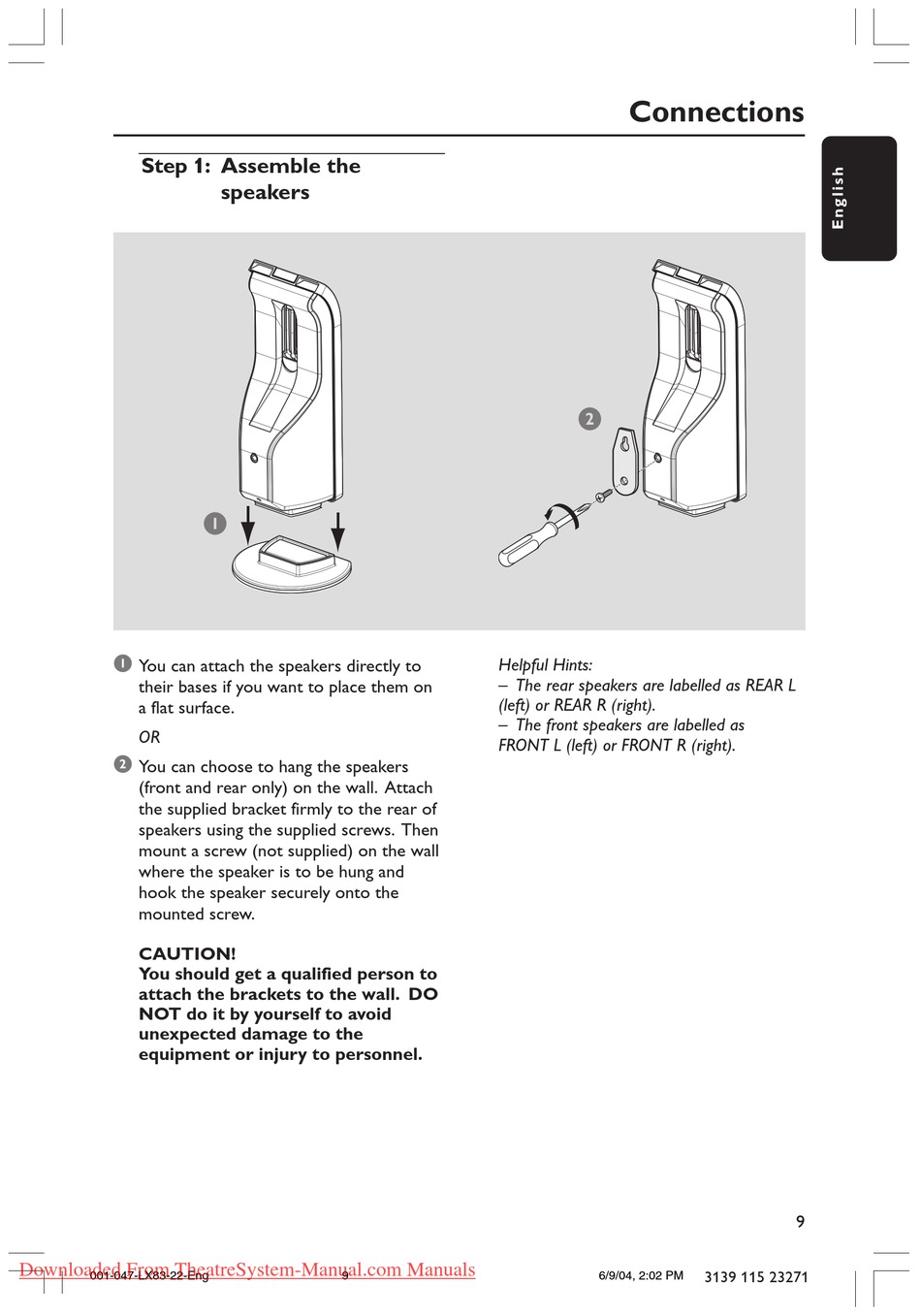

Step 1: Assemble the
1
You can attach the speakers directly to
their bases if you want to place them on
a flat surface.
OR
2
You can choose to hang the speakers
(front and rear only) on the wall. Attach
the supplied bracket firmly to the rear of
speakers using the supplied screws. Then
mount a screw (not supplied) on the wall
where the speaker is to be hung and
hook the speaker securely onto the
mounted screw.
CAUTION!
You should get a qualified person to
attach the brackets to the wall. DO
NOT do it by yourself to avoid
unexpected damage to the
equipment or injury to personnel.
Downloaded From TheatreSystem-Manual.com Manuals
001-047-LX83-22-Eng
speakers
1
9

Connections

2
Helpful Hints:
– The rear speakers are labelled as REAR L
(left) or REAR R (right).
– The front speakers are labelled as
FRONT L (left) or FRONT R (right).
