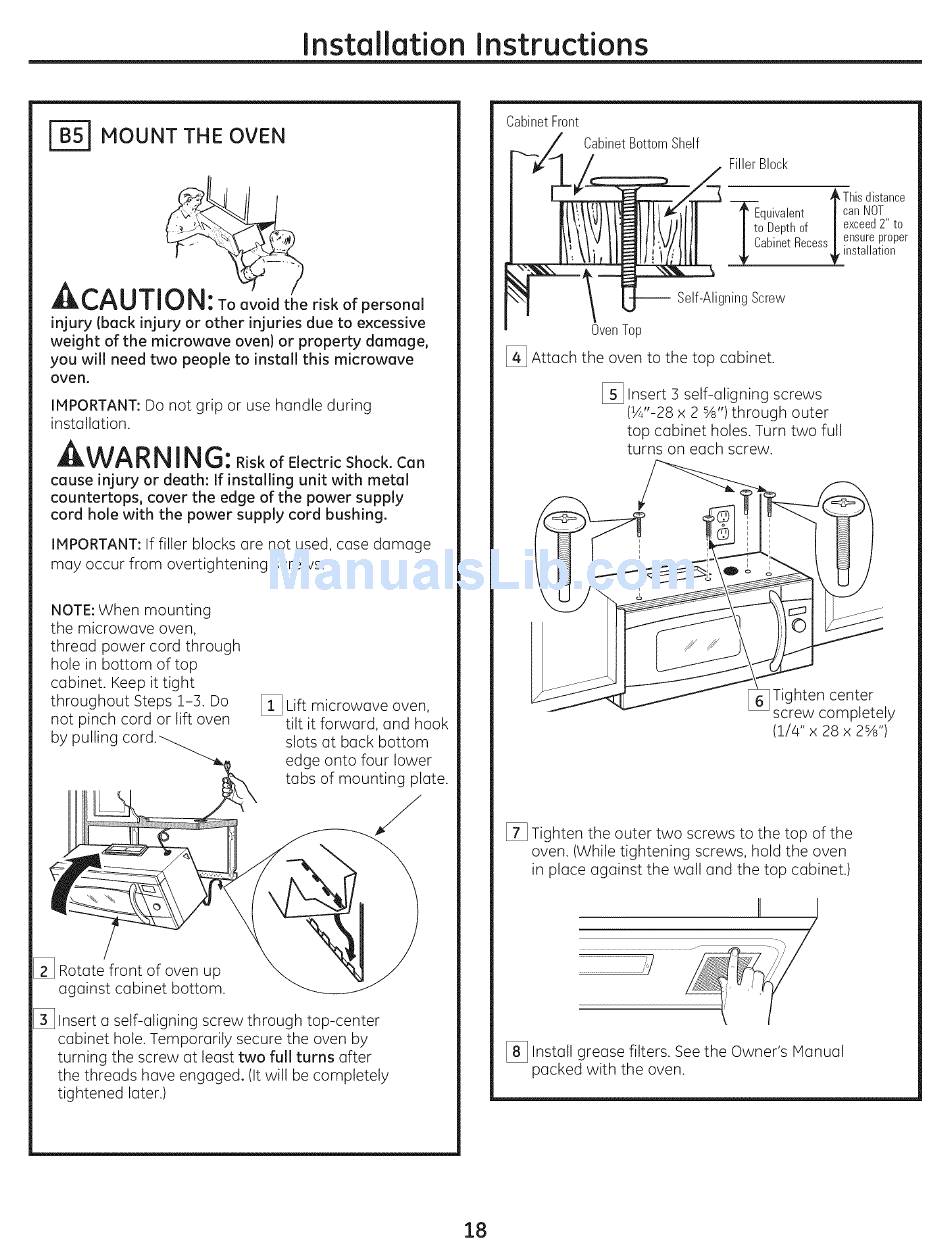

GE PSA1200 Installation Instructions Manual page 18

Installation Instructions
[_ MOUNT THE OVEN
ACAUTI " risk
o f personal
injury (back injury or other injuries due to excessive
weight of the microwave oven) or property damage,
you will need two people to install this microwave
oven.
IMPORTANT: Do not grip or use handle during
installation.
WARN ING: Risk ofElectric Shock. Can
cause injury or death: If installing unit with metal
countertops, cover the edge of the power supply
cord hole with the power supply cord bushing.
IMPORTANT: If filler blocks are not used, case damage
may occur from overtightening screws.
NOTE:When mounting
the microwave oven,
thread power cord through
hole in bottom of top
cabinet. Keep it tight
throughout Steps 1-3. Do
not pinch cord or lift oven
by pulling
[_ Lift microwave oven,
tilt it forward, and hook
slots at back bottom
edge onto four lower
tabs of mounting plate.
[_ Rotate front of oven up
against cabinet bottom.
[_ Insert a self-aligning screw through top-center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after
the threads have engaged. (It will be completely
tightened later.)
CabinetFront
CabinetBottomShelf
FillerBlock
*_ This distance
--_quivalent |can NOT
I to Depthof | exceed2" to
I CabinetRecess| ensur,eI_roper
lnstallatlon
-- Self-AligningScrew
Oven Top
[_ Attach the oven to the top cabinet.
[_ Insert 3 self-aligning screws
(¼"-28 x 2 %') through outer
top cabinet holes. Turn two full
turns on each screw.
Tighten center
screw completely
(1/4" x 28 x 2%")
[] Tighten the outer two screws to the top of the
oven. (While tightening screws, hold the oven
in place against the wall and the top cabinet.)
II I
/
[_ Install grease filters. See the Owner's Hanual
packed with the oven.
