Read the instructions carefully and follow the rules for safe
operation.
Failure to do so could result in serious injury.
echo, incorporated
400 Oakwood Road, Lake Zurich, Illinois 60047-1564
Phone : 847-540-8400
Printed in Japan

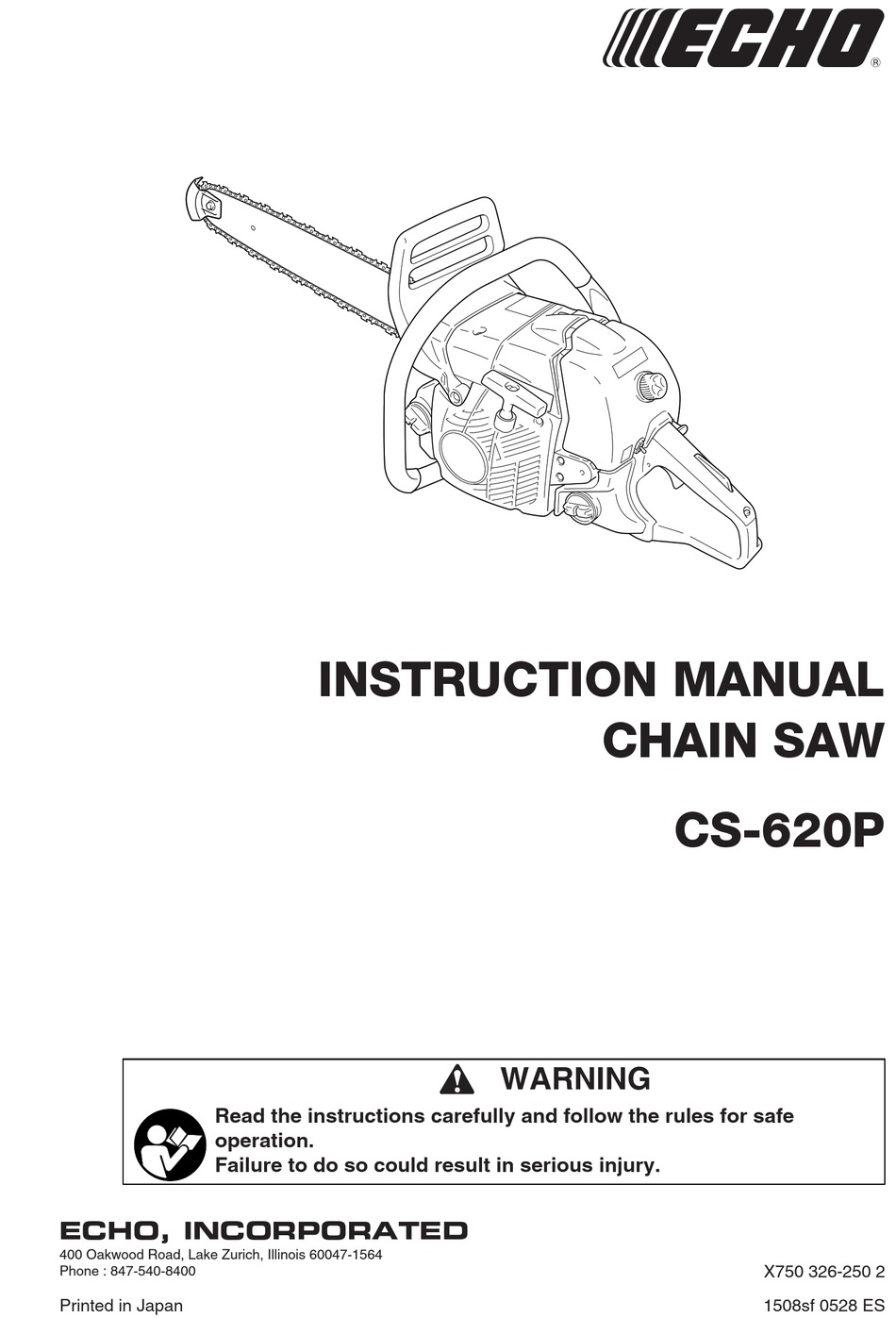

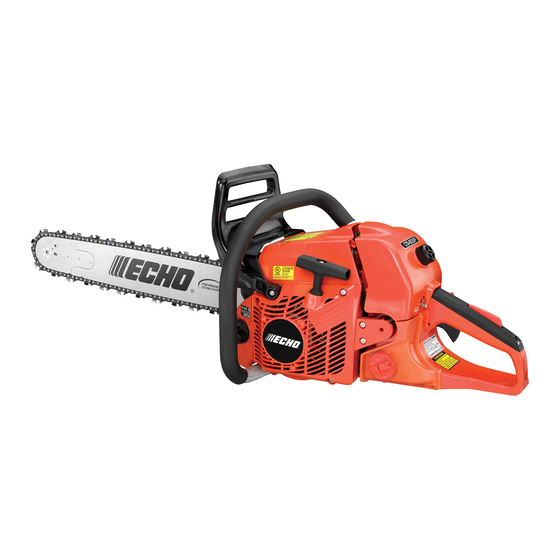

inSTruCTiOn manuaL
CHain Saw
WARNING
CS-620P
X750 326-250 2
1508sf 0528 ES
Advertisement
Table of Contents
Related Manuals for Echo CS-620P
Summary of Contents for Echo CS-620P
-
Page 1: Instruction Manual
CHain Saw CS-620P WARNING Read the instructions carefully and follow the rules for safe operation. Failure to do so could result in serious injury. echo, incorporated 400 Oakwood Road, Lake Zurich, Illinois 60047-1564 X750 326-250 2 Phone : 847-540-8400... - Page 2 WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Copyright © 2013 All Rights Reserved.
-
Page 3: Rules For Safe Operation
The Kick Guard device is not installed on the guide bar when you purchase your 3. Make sure that the area in which you ECHO chain saw. are cutting is free from obstructions. ® The Kick Guard can be used in a majority... - Page 4 SAE Standard J335 are standard to the rear, and the muffler away from on ECHO chain saws to reduce the possibility of forest fires. your body. When carrying a chain saw with the engine running, push the front Do not operate the chain saw with a loose or defective muffler.
-
Page 5: Table Of Contents
The enclosed message provides information CAUTION necessary for the protection of the unit. The safety alert symbol accompanied by the word “CAUTION” calls attention to an act or condition which may lead to minor or moderate personal injury if not avoided. CS-620P... - Page 6 PARTS” section will help you locate them. Make sure the decal is legible and that you understand and follow the instructions on it. If a decal cannot be read, a new one can be ordered from your ECHO dealer. CS-620P...
-
Page 7: Packing List
The ECHO product you purchased has been After opening the carton, check for damage. factory pre-assembled for your convenience. Immediately notify your retailer or ECHO dealer of Due to packaging restrictions, guide bar and saw damaged or missing parts. chain installation and other assembly may be Use the packing list to check for missing parts. -
Page 8: Nomenclature Of Parts
Note: There may be other replacement components for achieving kickback protection. For details, please refer * If a decal cannot be read, a new one can be to the chain and bar combination sheet shown in the instruction manual. ordered from your ECHO dealer. CS-620P... - Page 9 It covers the cylinder, spark plug and 11. Chain catcher - A projection designed to silencer. reduce the risk of the operator’s right hand from being hit by a chain which has broken or derailed from the guide bar during cutting. CS-620P...
-
Page 10: Operator Safety
If this guideline is not followed, hearing loss can numbness in the fingers. occur. The following precautions are strongly ECHO recommends wearing hearing protection recommended because the minimum exposure at all times. which might trigger the ailment is unknown. WEAR PROPER CLOTHING •... -
Page 11: Spark Arrestor Muffler
ECHO chain brakes have been designed and Reduced radius belongs on top tested to comply with international safety standards as follows. -
Page 12: Preparation For Use
Clutch cover Guide bar adjuster hole Nuts 5. Install the clutch cover over the guide bar studs. Ensure chain tension adjuster pin fits into the guide bar adjuster hole. Tighten clutch cover nuts finger tight. CS-620P... -
Page 13: Adjusting Chain Tension
5. Pull the chain around the bar by hand. Loosen the adjustment if you feel tight spots. 6. When chain is properly tensioned, tighten clutch cover nuts securely - 20 to 23 N·m (175 to 200 in. lb.). 7. Keep chain properly tensioned at all times. CS-620P... -
Page 14: Fuel And Lubricant
ECHO brand premium Power Blend X™ Universal 2-Stroke Oil may be mixed at 50 : 1 ratio for 2-Stroke Oil meets these standards. application in all ECHO engines sold in the past Engine problems due to inadequate lubrication regardless of ratio specified in those manuals. -
Page 15: Chain Lubricant
• Do not use used or reclaimed oil to avoid various oiler problems. • Use ECHO bar and chain oil. • Use bar and chain oil of the following grades: SAE No. 30 ..in summer SAE No. 10 ..in winter or when cutting... -
Page 16: Emission Data
EMISSION COMPLIANCE PERIOD: 300 Hours THIS ENGINE MEETS U.S. EPA EXH/EVP EMISSION label varies by engine family). REGULATIONS FOR MODEL YEAR * * * * REFER TO OWNER’S MANUAL FOR MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS. * * * ? ? ? ? CS-620P... -
Page 17: Operation
Choke towards the operator immediately. Throttle trigger lockout (Chain brake unlocked position) • Never use throttle latch for cutting. • Use the chain brake only in starting or in emergencies. Throttle trigger Starter handle Unlock chain brake CS-620P... -
Page 18: When The Engine Is Cold
• Choke may be used if necessary, but after first firing sound, pull throttle trigger to release choke. Starter handle • After starting the engine, pull front hand guard Unlock chain brake towards the operator immediately. (Chain brake unlocked position) CS-620P... -
Page 19: Checking Chain Tension
NOTICE STOP If engine does not stop, pull choke control knob out fully to stop engine. Return the unit to your authorized ECHO dealer Throttle trigger to check and repair stop switch before starting the engine again. CHECKING CHAIN TENSION •... -
Page 20: Cutting Instruction
CUTTING INSTRUCTION GENERAL CAUTION • Read the ECHO “CHAIN SAW SAFETY MANUAL” included with your chain saw for additional cutting and safety instructions. • Wear suitable hearing protection such as earmuffs or earplugs to protect against objectionable or uncomfortable loud noises. -
Page 21: Felling The Tree
Then remove the saw for the second cut. Insert the saw in the first cut, very carefully so as not to cause kickback. The final cut is made by drawing the saw forward in the cut to reach the hinge. CS-620P... - Page 22 • The chain saw industry and government agencies have attempted to prescribe various safety devices, but the best protection is to avoid kickback. • Comply with the safety precautions as listed in this Manual and Safety Manual. CS-620P...
-
Page 23: Chain Brake Operation
When the brake lever trips, the chain should stop. Immediately release the throttle trigger. WARNING If the chain does not stop immediately, return the saw to your authorized ECHO dealer for Chain brake unlock repair. When the lever is fully pulled toward the operator, brake is unlocked. -
Page 24: Automatic Chain Brake
Pull the air shutter to cold position. (push; closed) (pull; opend) NOTICE Air cleaner cover For operation at normal temperature, return the air shutter to its original place. (5°C, 41°F) It causes over heating of the engine. Air shutter CS-620P... -
Page 25: Chain And Guide Bar Combination
CHAIN AND GUIDE BAR COMBINATION The following combinations are recommended for model CS-620P. Guide bar Saw chain ECHO Part No. Length mm (in.) Pitch mm (in.) ECHO Part No. Links Symmetrical 406 (16) 16D0PS3860 72LPX60CQ 457 (18) 18D0PS3866 72LPX66CQ 508 (20) 20D0PS3870 9.53 (3/8) -
Page 26: Maintenance And Care
MAINTENANCE AND CARE SKILL LEVELS Your ECHO chain saw is designed to provide many hours of trouble free service. Regular scheduled Level 1 = Easy to do. Most required tools come maintenance will help your chain saw achieve that with unit. -
Page 27: Carburetor Adjustment
If a tachometer is available idle speed should be To maintain proper engine operation and emission set to 2800 r/min. compliance above 1100 feet ASL the carburetor may need to be adjusted by an authorized ECHO CAUTION service dealer. When starting, idling adjustment speed... -
Page 28: Air Filter
• Pull it out through oil filling hole with a piece of steel wire or the like. • If the filter is dirty, wash it in gasoline or replace • When the inside of the tank gets dirty, rinsing the tank out with gasoline can clean it. CS-620P... - Page 29 When the screw touches stopper and stops, this position indicates maximum discharge volume. (13 to 14 mL/min at 7000 r/min) - Do not turn the adjusting screw beyond the maximum or minimum limit of volume adjustment. CS-620P...
-
Page 30: Setting The Saw Chain
• For setting saw chain, round file 5.5 mm (7/32 in.) diameter and flat file are used. • To keep correct position and correct angle, use Keep this angle ® the file holder (Sure Sharp 25° Push file as shown 10° Hold the file tipped 10° upward CS-620P... - Page 31 - If the saw chain becomes soiled with resin, for instance, clean it with kerosene and soak in it oil. NOTICE Parallel These angles are referred to as Oregon 72LPX. To sharpen other follow chain manufacturer’s instruction. Depth gauge CS-620P...
-
Page 32: Troubleshooting
• Fuel filter clogged • Clean or replace cranks carburetor carburetor • Fuel line clogged • Clean • Carburetor • Ask your ECHO dealer Fuel at No fuel at • Carburetor • Ask your ECHO dealer cylinder cylinder Muffler wet with •... -
Page 33: Storage After Use
• Store in a dry area, free from dust. • For future reference, you should keep this Instruction manual and the Safety manual. • If this Instruction manual or the Safety manual has become illegible or is lost, please purchase a new one from your ECHO dealer. CS-620P... -
Page 34: Technical Data
Recoil starter Power transmission Automatic centrifugal clutch Fuel Mixture ratio 50 : 1 ratio with ECHO Power Blend X™, ISO-L- EGD (ISO/CD 13738) and JASO M345-FD two- stroke, air-cooled engine oil. Gasoline Use 89 octane unleaded. Do not use fuel containing methyl alcohol, more than 10 % ethyl alcohol or 15 % MTBE. -
Page 35: Warranty Statements
The owner shall demonstrate reasonable care and use, and follow preventative maintenance, storage, fuel and oil usage as prescribed in the operator’s manual. Should a product difficulty occur, you must, at your expense, deliver or ship your ECHO unit to an authorized ECHO servicing dealer for warranty repairs (within the applicable warranty period), and arrange for pick-up or return of your unit after the repairs have been made. - Page 36 ECHO does not offer an over the counter exchange program. Any ECHO product re-built other than by ECHO or sold through an unauthorized dealer, or an unauthorized outlet store, is sold without ECHO’s limited warranty coverage. The ECHO Limited Warranty coverage is extended to the original purchaser only, and is not transferable except for emission related parts.
-
Page 37: Warranty Registration Sheet
