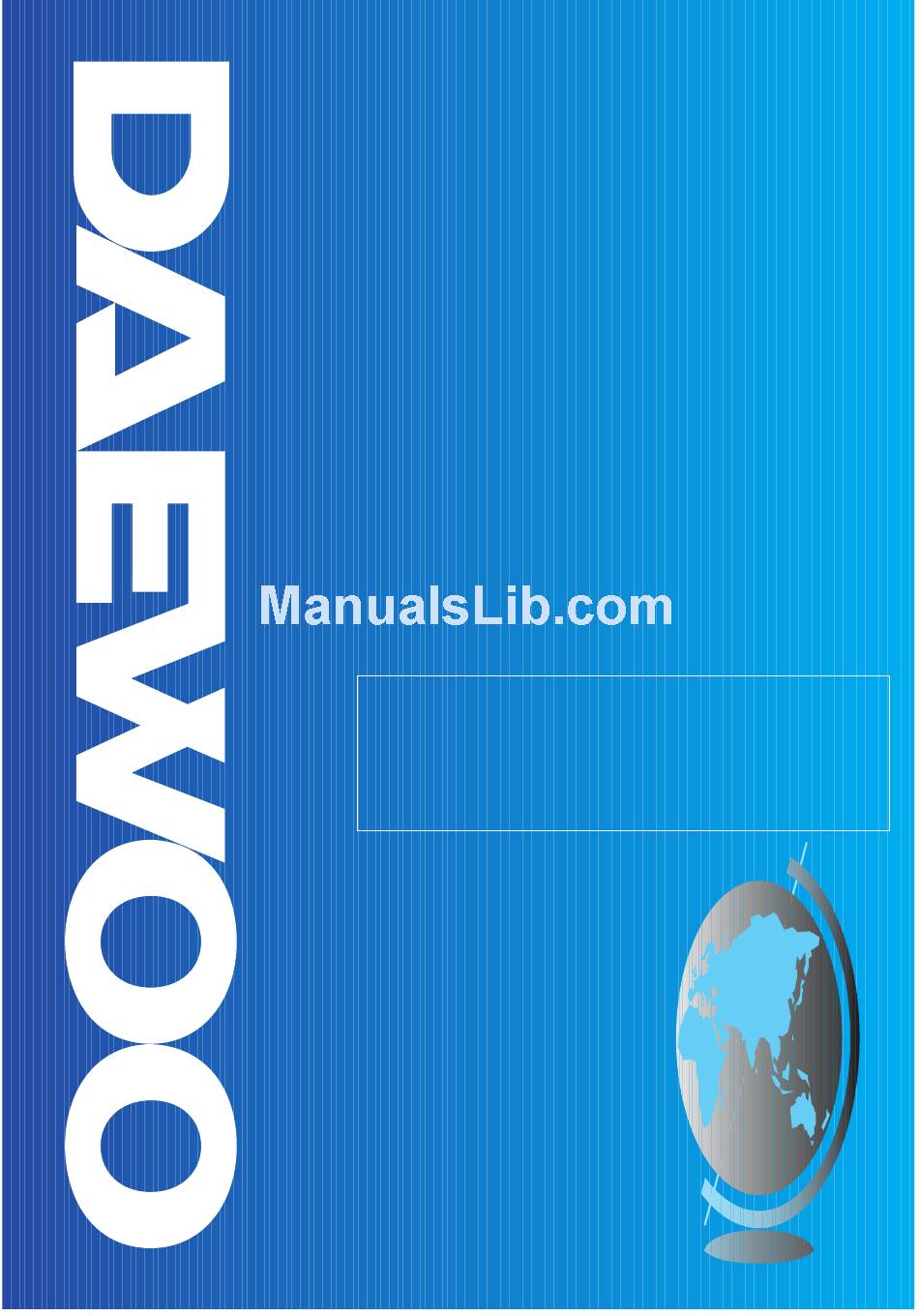

Service Manual
Vacuum Cleaner
Model: RC-705
Caution
: In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center (http://svc.dwe.co.kr).
DAEWOO ELECTRONICS CO., LTD.
Advertisement
Related Manuals for Daewoo RC-705
Summary of Contents for Daewoo RC-705
-
Page 1: Vacuum Cleaner
: In this Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information,please refer to PPL(Parts Price List) in Service Information Center (http://svc.dwe.co.kr). DAEWOO ELECTRONICS CO., LTD. - Page 2 CONTENTS 1. SPECIFICATION ......................1 2. DESCRIPTIONS ......................3 3. WIRING DIAGRAM ..................... 4 4. CAUSE OF TROUBLE AND COUNTERMEASURE ......5 5. DISASSEMBLING AND TREATMENT ............7 6. EXPLODED VIEW AND PARTS LIST ............12...
-
Page 3: Specifications
1. SPECIFICATIONS RATED VOLTAGE / FREQUENCY AC 100V / 50~60HZ AC 110V / 60HZ AC 120V / 60HZ AC 220V / 50HZ AC 220V / 60HZ AC 230V / 50HZ AC 240V / 50HZ RATED INPUT 1200W 431 x 241 x 284 mm (W x H x D) DIMENSION (BODY) WEIGHT(BODY) 6.1kg... -
Page 5: Wiring Diagram
3. WIRING DIAGRAM THERMOSTAT SLIDE VOLUME MOTOR CORD REEL P. C. B MICRO S/W CIRCUIT DIAGRAM PART NAME SPEC R1, R2 10K OHM, 1/2W 180K OHM, 1/2W YELLOW 240K OHM, 1/2W BLUE BLUE MICRO BLACK BLACK 100 OHM, 1W SWITCH 12uH FILTER COIL WHITE... - Page 15 Caution: In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr) PART CORD PART NAME DESCRIPTION Q'TY...
-
Page 17: Body Assembly
Caution: In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr) BODY ASSEMBLY : PART CORD PART NAME DESCRIPTION... - Page 19 Caution: In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr) COVER ASSEMBLY : 3621407800/3621406800 PART CORD PART NAME DESCRIPTION...
-
Page 21: Motor Assembly
Caution: In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr) MOTOR ASSEMBLY : PART CORD PART NAME DESCRIPTION... -
Page 23: Cord Reel Assembly
Caution: In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr) CORD REEL ASSEMBLY : PART CORD PART NAME DESCRIPTION... - Page 24 Caution: In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr) 6-6. DUST METER ASSEMBLY PART CODE PART NAME DESCRIPTION...
- Page 25 6-7-1) HOSE ASSEMBLY:...
- Page 26 Caution: In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr) PART CORD PART NAME DESCRIPTION Q'TY...
- Page 27 6-7-2) HOSE ASSEMBLY: II 13 12 11 WIRE WIRE 13 12 11 1.45m...
- Page 29 Caution: In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr) PART CORD PART NAME DESCRIPTION Q'TY...
- Page 30 6-8-1) SUCTION BRUSH ASSEMBLY: I (3629301700) (3629301600)
- Page 31 Caution: In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr) PART CORD PART NAME DESCRIPTION Q'TY...
- Page 32 6-8-2) WIDE SUCTION BRUSH ASSEMBLY: II (3629302000) (3629301410)
- Page 33 Caution: In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr) PART CORD PART NAME DESCRIPTION Q'TY...
- Page 34 6-9-1) EXTENSION PIPE ASSEMBLY...
- Page 35 Caution: In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr) PIPE ASSEMBLY: I PART CORD PART NAME DESCRIPTION...
- Page 36 Caution: In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr) 6-9-2) EXTENSION PIPE ASSEMBLY : 3624404600 3624404600 PART CODE PART NAME...
- Page 37 Caution: In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr) 6-9-3) EXTENSION PIPE ASSEMBLY : 3624404500 PART CODE PART NAME DESCRIPTION...
- Page 38 Caution: In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr) 6-10) DUSTING BRUSH ASSEMBLY PART CODE PART NAME DESCRIPTION...
