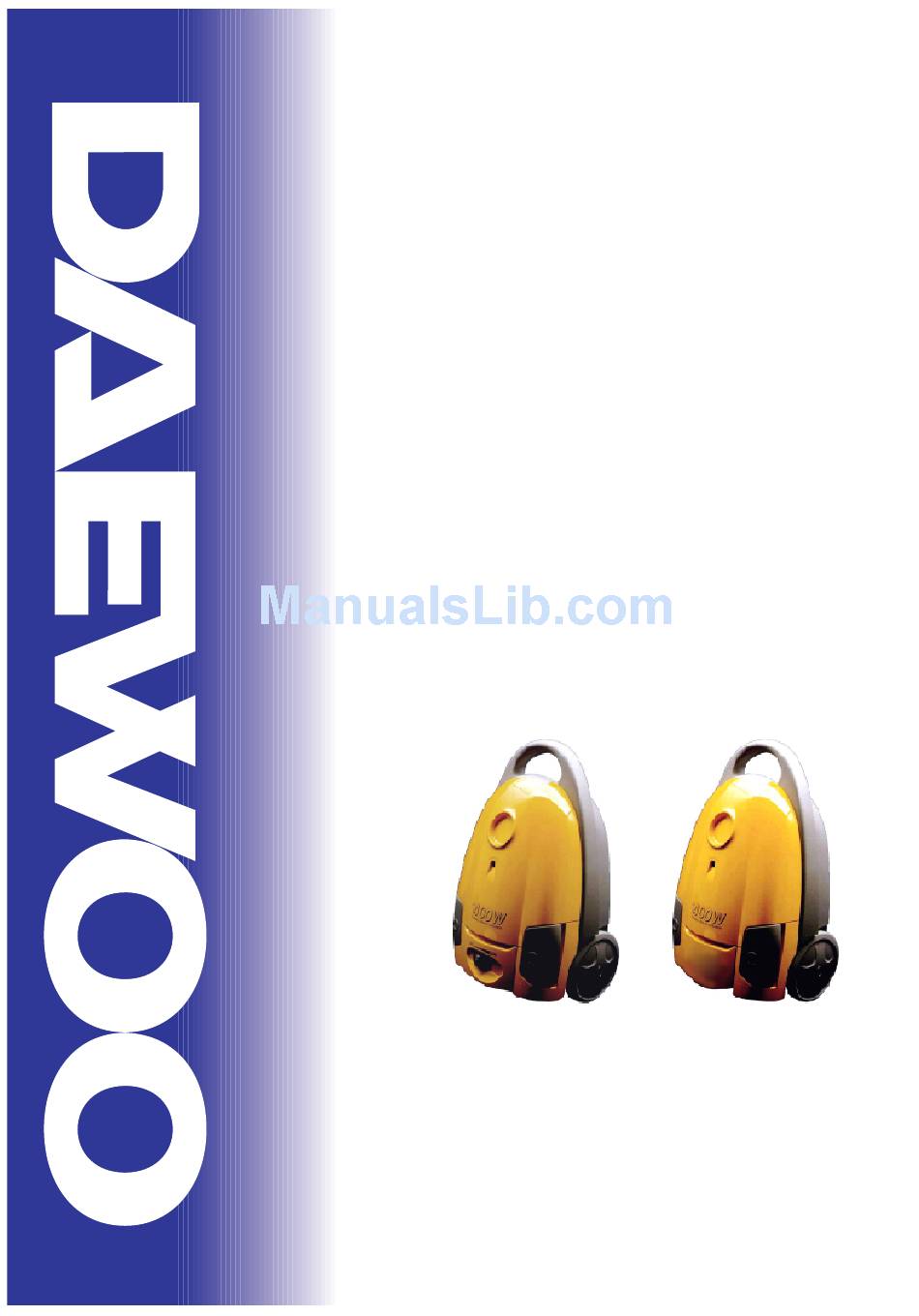

Service Manual
VACCUM CLEANER
RC-320B
MODEL :
RC-320S
RC-320F
RC-320B/S
DAEWOO ELECTRONICS CO., LTD
http : //svc.dwe.co.kr
S/M No. : RC320FB010
RC-320F
MAY. 2000

Advertisement

Table of Contents
loading

Related Manuals for Daewoo RC-320B

Summary of Contents for Daewoo RC-320B

  • Page 1 S/M No. : RC320FB010 Service Manual VACCUM CLEANER RC-320B MODEL : RC-320S RC-320F RC-320B/S RC-320F DAEWOO ELECTRONICS CO., LTD http : //svc.dwe.co.kr MAY. 2000...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. SPECIFICATIONS .......................... 2 2. EXTERNAL VIEW ........................... 2 2-1. ASSEMBLY ..........................2 2-2. MODEL RC-320F, RC-320B, RC-320S ..................3 3. DIAGRAM ............................4 3-1. WIRING DIAGRAM ........................4 3-2. CIRCUIT DIAGRAM ........................6 4. TROUBLE SHOOTING GUIDE ...................... 8 5.

  • Page 3: Specifications

    1. SPECIFICATIONS Model RC-320F RC-320B RC-320S Rated Voltage AC 230V AC 230V AC 230V 50/60Hz 50/60Hz 50/60Hz Frequency Input Watt MAX 1200W MAX 1300W MAX 1400W Weight(Body) 3.8Kg 3.8Kg 3.8Kg 446X217X284mm 446X217X284mm 446X217X284mm Dimension(LXHXD) Cord Length Power Control Body ON/OFF...

  • Page 4: Model Rc-320F, Rc-320B, Rc-320S

    EXTERNAL VIEWS 2-2. MODEL RC-320F, RC-320B, RC-320S...

  • Page 5: Diagram

    3. DIAGRAM 3-1. WIRING DIAGRAM (DESA, DESPA, DESUK) 1) STANDARD RC-320F RC-320B...
  • Page 6 DIAGRAM 3-1. WIRING DIAGRAM (DEPOL) 2) NON-STANDARD RC-320F RC-320B, RC-320S...

  • Page 7: Circuit Diagram

    DIAGRAM 3-2. CIRCUIT DIAGRAM (DESA, DESPA, DESUK) 1) STANDARD RC-320F RC-320B...
  • Page 8 DIAGRAM 3-2. CIRCUIT DIAGRAM (DESOL) 2) NON-STANDARD RC-320F RC-320B...

  • Page 9: Trouble Shooting Guide

    4. TROUBLE SHOOTING GUIDE TROUBLE CAUSE COUNTERMEASURE SUCTION POWER FILTER BAG(PAPER OR CLOTH) CHANGE IT WITH NEW ONE IS WEAK IS FULL WITH DUST OR REMOVE THE DUST CLOGGING OR TEAR IN HOSE REMOVE OBSCTACLE OR REPLACE THE HOSE DEFECTIVE MOTOR REPLACE THE MOTOR (SEE 5-2) BREAKING IN POWER CORD...

  • Page 10: Disassembling And Treatment

    5. DISASSEMBLING AND TREATMENT 5-1. CLEANER ASSEMBLY 1. TAKE THE COVER TOP CUT OF THE COVER BODY BY USING AN AWL. 2. SEPARATE THE COVER DUST ASSEMBLY FROM THE COVER BODY. 3. UNSCREW THE 2 SCREWS(2) THEN LIFT THE COVER BODY UP FROM THE BODY ASSEMBLY.

  • Page 11: Motor Assembly

    DISASSEMBLING AND TREATMENT 5-2. MOTOR ASSEMBLY 1) TAKE THE MOTOR ASSEMBLY OUT OF THE BODY 2) CHECK THE MOTOR(1) (WHETHER THE MOTOR IS BURNT OUT OR NOT).

  • Page 12: Cord Reel Assembly

    DISASSEMBLING AND TREATMENT 5-3 CORD REEL ASSEMBLY 1) TAKE THE CORD REEL OUT OF THE BODY. 2) UNSCREW THE SCREW(14) AND SEPARATE THE BOBBIN(1) FROM THE BRACKET(9) AND CHECK THE CONTACTS BETWEEN THE Y TYPE TERMINALS AND THE RING TYPE TERMINALS(3, 4). 4) CHECK THE LEVER SPRING(17).

  • Page 13: Cover Dust Assembly

    DISASSEMBLING AND TREATMENT 5-4 COVER DUST ASSEMBLY 1) UNSCREW THE 2 SCREWS(6) AND SAPARATE THE SOCKET(4) FROM THE COVER DUST(1).

  • Page 14: Cover Body Assembly

    DISASSEMBLING AND TREATMENT 5-3 COVER BODY ASSEMBLY 1) CHECK THE CONNECTIONS BETWEEN THE PCB ASSY(2) AND THE WIRE. 2) CHECK THE PCB ASSY(2). 3) CHECK THE SWITCH(4).

  • Page 15: Exploded View And Parts List

    6. EXPLODED VIEW AND PARTS LIST 6-1. CLEANER ASSEMBLY 1) MODEL RC-320F(3620012900) PART NAME PART CODE SPECS. Q'YT BODY AS 3620409000 ASSY ASSY MOTOR 3620013200 ASSY(RC-320F) CORD REEL AS 3629507000 ASSY NOZZLE CREVICE 3628100600 COVER BODY 3621424400 SWTICH PUSH 3629002000 7A/250V, (SKT) SPRING BUTTON 3625107400...
  • Page 16 EXPLODED VIEW AND PARTS LIST 2) MODEL RC-320B (3620013000)
  • Page 17 EXPLODED VIEW AND PARTS LIST PART NAME PART CODE SPECS. Q'YT BODY AS 3620409000 ASSY ASSY MOTOR 3620013300 ASSY(RC-320B) CORD REEL AS 3629507100 ASSY NOZZLE CREVICE 3628100600 COVER BODY AS 3621426200 ASSY SCREW TAPPTITE 7171402011 TT2 PAN 4X20 MFZN FILTER EXHAUST...
  • Page 18 EXPLODED VIEW AND PARTS LIST 3) MODEL RC-320S (3620013100)
  • Page 19 EXPLODED VIEW AND PARTS LIST PART NAME PART CODE SPECS. Q'YT BODY AS 3620409000 ASSY ASSY MOTOR 3620013400 ASSY(RC-320S) CORD REEL AS 3629507100 ASSY NOZZLE CREVICE 3628100600 COVER BODY AS 3621426200 ASSY SCREW TAPPTITE 7171402011 TT2 PAN 4X20 MFZN FILTER EXHAUST 3621906900 POLYESTER COVER DUST AS...

  • Page 20: Body Assembly

    EXPLODED VIEW AND PARTS LIST 6-2. BODY ASSEMBLY 1) MODEL RC-320F, RC-320B, RC-320S (3620409000)
  • Page 21 EXPLODED VIEW AND PARTS LIST PART NAME PART CODE SPECS. Q'YT BODY 3620408800 ROLLER BACK 3624704900 BRACKET ROLLER 3620601500 ROLLER FRONT 3624703600 SHAFT ROLLER 3624901000 SWRM SCREW TAPPING 7128401212 T2S WAS 4X12 MFZN BK HOLDER BRUSH 3623005500 SCREW TAPPING 7121401412 T2S PAN 4X14 MFZN BK HOLDER FILTER 3623005600...

  • Page 22: Cover Assembly

    EXPLODED VIEW AND PARTS LIST 6-3. COVER ASSEMBLY 1) COVER DUST ASSEMBLY (3621425900) PART NAME PART CODE SPECS. Q'YT COVER DUST 3621424500 CLAMP COVER 3621202600 SPRING CLAMP 3625106400 HSW3 SOCKET 3629801200 DUST METER AS 3629702000 ASSY SCREW TAPPING 7121401011 T2S PAN 4X10 MFZN...
  • Page 23 EXPLODED VIEW AND PARTS LIST 2) COVER BODY ASSEMBLY (3621426200) MODEL : RC-320B, RC-320S PART NAME PART CODE SPECS. Q'YT COVER BODY 3621424400 PCB AS 3624311000 ASSY SCREW TAPPING 7121401411 T2S PAN 4X14 MFZN SWITCH PUSH 3629002000 7A/250V(SKT) BUTTON SWITCH...

  • Page 24: Motor Assembly

    EXPLODED VIEW AND PARTS LIST 6-4. MOTOR ASSEMBLY 1) MODEL RC-320F (3620013200) PART NAME PART CODE SPECS. Q'YT MOTOR UNIVERSAL 3962511400 230V 1100W DMI(E) PACKING MOTOR 3624006900 ABSORBER SOUND 4569C10071 PU FOAM (T=10) MOUNT MOTOR 3627900900 TERMINAL AS 3622711900 ASSY...
  • Page 25 EXPLODED VIEW AND PARTS LIST 2) MODEL RC-320B (3620013300) PART NAME PART CODE SPECS. Q'YT MOTOR UNIVERSAL 3962511400 230V 1200W DMI(E) PACKING MOTOR 3624006900 ABSORBER SOUND 4569C10071 PU FOAM (T=10) MOUNT MOTOR 3627900900 TERMINAL AS 3622712200 ASSY...
  • Page 26 EXPLODED VIEW AND PARTS LIST 3) MODEL RC-320S (3620013400) PART NAME PART CODE SPECS. Q'YT MOTOR UNIVERSAL 3962511400 230V 1300W DMI(E) PACKING MOTOR 3624006900 ABSORBER SOUND 4569C10071 PU FOAM (T=10) MOUNT MOTOR 3627900900 TERMINAL AS 3622712200 ASSY...

  • Page 27: Cord Reel Assembly

    EXPLODED VIEW AND PARTS LIST 6-5. CORD REEL ASSEMBLY 1) MODEL RC-320F (3629507000) PART NAME PART CODE SPECS. Q'YT BOBBIN 3629200600 HOLDER TERMINAL 4565A36020 PC (V-0) TERMINAL 4565A36034 C2600P-1/2H T=0.3 TERMINAL 4565A36024 C2600P-1/2H T=0.3 CORD POWER 3621300700 250V16A, H05H2F,5m SCREW TAPPING 7121301411 T2S PAN 3X14 MFZN SPRING AS...
  • Page 28 EXPLODED VIEW AND PARTS LIST 2) MODEL RC-320B, RC-320S(3629507100)
  • Page 29 EXPLODED VIEW AND PARTS LIST PART NAME PART CODE SPECS. Q'YT BOBBIN 3629200600 HOLDER TERMINAL 4565A36020 PC (V-0) TERMINAL 4565A36034 C2600P-1/2H T=0.3 TERMINAL 4565A36024 C2600P-1/2H T=0.3 CORD POWER 3621300700 250V16A, H05H2F, 5m SCREW TAPPING 7121301411 T2S PAN 3X14 MFZN SPRING AS 3625102005 SUS30-EH+Cover,3800mm SCREW TAPPING...

  • Page 30: Hose Assembly

    EXPLODED VIEW AND PARTS LIST 6-6. HOSE ASSEMBLY(3623206200) PART NAME PART CODE SPECS. Q'YT PIPE ADAPTER 3629101700 HOSE 3623206300 EVA 1.6m (Non-Current) HOLDER HOSE 4569A71021 PIPE HOSE 3624408200 VALVE AIR 3625400400 CUFF HOSE 3626800200 LDPE PACKING HOSE 3624005900 SPONGE...

  • Page 31: Brush Assembly

    EXPLODED VIEW AND PARTS LIST 6-7. BRUSH ASSEMBLY 1) MODEL RC-320F, RC-320S(3629304900) PART NAME PART CODE SPECS. Q'YT BODY BRUSH 3620406400 ROLLER-F BRUSH 3624703100 SHAFT ROLLER 3624900900 PICKER LITTER 3622700700 PIPE BRUSH 3624408300 NECK BRUSH 3628001600 ROLLER-B BRUSH 3624703000 COVER BRUSH 3621417200 SCREW TAPPTITE 7171401411...
  • Page 32 EXPLODED VIEW AND PARTS LIST 2) RC-320S (3629307400) PART NAME PART CODE SPECS. Q'YT PIPE BRUSH 3624412400...

  • Page 33: Pipe Assembly

    EXPLODED VIEW AND PARTS LIST 6-8. PIPE ASSEMBLY 1) MODEL RC-320F (3624408500) PART NAME PART CODE SPECS. Q'YT PIPE EXTENSION 3624408500 2) MODEL RC-320B (3624403510) PART NAME PART CODE SPECS. Q'YT PIPE STEEL 3624403510 SPC T=0.7(LD=32.6) 3) MODEL RC-320S (3624412300)
  • Page 34 DAEWOO ELECTRONICS CO., LTD 686, AHYEON-DONG MAPO-GU SEOUL, KOREA C.P.O. BOX 8003 SEOUL, KOREA TELEX : DWELEC K28177-8 CABLE : “DAEWOOELEC” FAX : 02)360-7877 TEL : 02)360-7803 E-mail : G7F00E@web.dwe.co.kr PRINTED DATE : MAY. 2000...
