Applicable Tire Size Capacity:
any 24-inch – 700 x 45c
(Max Tire Outer Diameter = 714mm)

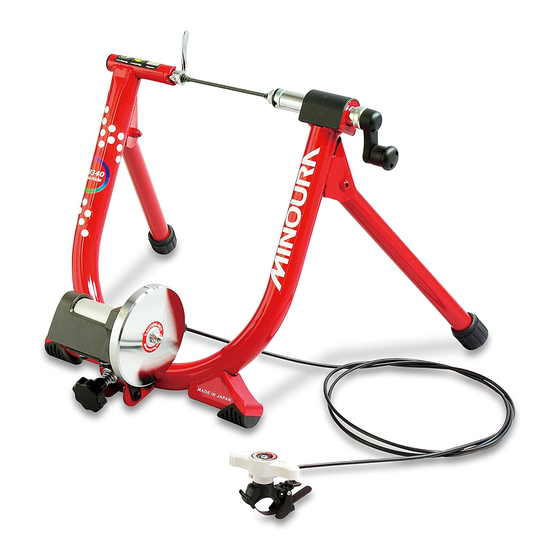

Main Features
• The basic LiveRide series trainer combined with the simple & durable U-shaped design main frame and the powerful
Advanced-Magturbo resistance unit
• Uses a super-strong Neodymium magnet for providing extremely wide and controllable resistance range
• Easy-to-grip wing design remote shifter enables to choose your desired power from 7 resistance levels easily
• Thick outer edge flywheel design generates more initial inertia rather than a plain disc type flywheel
• 'LiveTraining' smart phone training application compatible
Please Note
Contact
MINOURA North American Tech Center
(for U.S. residents ONLY)
Hayward, California, U.S.A.
Phone: 1-510-538-8599 (8 am - 5 pm, Mon - Fri, PST)
Fax:
1-510-538-5899
Email: support@minourausa.com
indoor bicycle trainer
(ETRTO 47-622)
This trainer must be used with a completely smooth (no knobs or raised tread) tire.
Failure to do so will ruin the mag unit, your tire, and void any possible warranty.
If you need help, please contact the shop first where you originally purchased this product
or call the distributors in your country. The distributors list can be found on our web site.
When you cannot get enough service, you can contact us;
MADE IN JAPAN
instructions manual
MINOURA Japan Headquraters
(for ALL customers)
1197-1 Godo, Anpachi, Gifu 503-2305 Japan
Phone: +81-584-27-3131
Fax:
+81-584-27-7505
Email: minoura@minoura.jp
Web: www.minoura.jp
(ver. 1.3 2014/2)
Advertisement
Related Manuals for MINOURA LiveRide LR340
Summary of Contents for MINOURA LiveRide LR340
- Page 1 Contact or call the distributors in your country. The distributors list can be found on our web site. When you cannot get enough service, you can contact us; MINOURA North American Tech Center MINOURA Japan Headquraters (for U.S. residents ONLY) (for ALL customers) Hayward, California, U.S.A.
-
Page 2: Important Notes
The kit contains only M5 hex wrench. • Use the supplied rear quick release skewer for maximum stability. The hub clamping parts (couplings) fits the supplied quick release skewer only. Minoura is not responsible for any problem caused from using your own skewer. - Page 3 (not supplied) Replace your rear wheel quick release skewer to the supplied one. Minoura guarantees the stability only when using the supplied skewer due to the coupling inner shape. If your bike is not equipped with quick release skewer and it's a hub nut type, you should remove the black plastic Grommet (Skewer Nut Protector) (F-9) from the right side Coupling (F-1).
- Page 4 Place your rear wheel in between the couplings. (Wheel is not shown here) 1) Turn the Hub Handle counter-clockwise to open the trainer. You should almost completely open the coupling using the hub Coupling handle for easier wheel installation. (see Fig. D) Be careful not to over-loosen the Hub Handle.
- Page 5 Contact the Drive Roller to the rear tire by turning the Roller Pressure Adjust Knob clockwise. (see Fig. H) The best position is that the roller compresses the tire in the depth of 3 – 4 mm. (see Fig. I) Please note: Too little or too much tire pressure will cause premature tire wear.
- Page 6 If the rear tire has touched any other parts than the Drive Roller, that part may be damaged and your tire will wear out quickly. To remove the bike from the LR340, loosen the micro adjust knob first, then loosen the Hub Handle. If you remove the bike without changing the roller position, the next installation may become difficult because the rear wheel has been pushed forward by the roller.
- Page 7 Why My Remote Shifter Doesn't Work Properly? If you have a shifting issue where you can't set the remote at L or H, your cable may be stretched. To fix this problem, follow the adjust the cable tension. Set your remote shifter at "H" position and remove the shifter from your handlebar, then straighten the cable as much as possible.
- Page 8 When ordering replacement parts, clearly tell the part number to the shop people LR340 Schematics in order to avoid getting similar but wrong parts. Coupling Cover Grommet BF-12 Main Frame (Red) Hub Clamp Handle Coupling (Right) BF-11 Wing Nut BF-4 Leg Rubber Cover (Red) BF-6 Leg Rubber...
