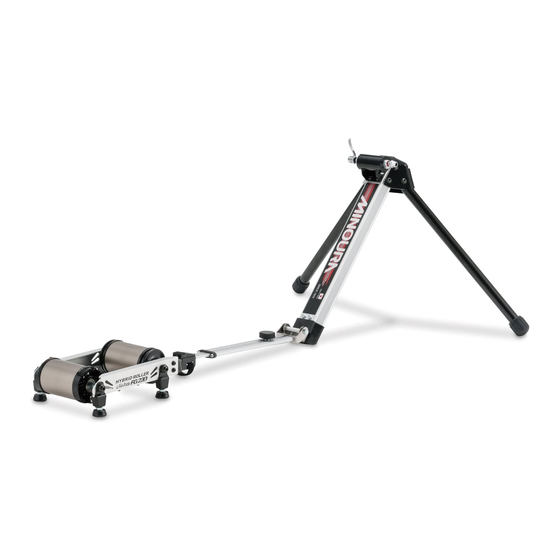

Indoor Bike Trainer
[Applicable Wheel Size]
650c – 700c
26 – 29 inch
[Applicable Wheebase Size]
930 – 1,200mm
• This trainer is designed for use only on stable or indoor surfaces. The trainer is not
Caution
designed to be used in muddy or off road conditions. Getting dirt in the resistance unit
may cause damage. Using muddy or dirty tires will cause premature wear on the rollers.
• Using 24" or smaller wheels may put undue stress on the unit and will alter the angle of
the bicycle significantly.
• When setting up the FG220 pedal slowly at first to make sure the rear wheel stays on
the roller and is positioned properly.
If you need help, please contact the shop first where you originally purchased this product or call the distributors
Contact
in your country. The distributors list can be found on our web site.
MINOURA North American Tech Center
(for U.S. residents ONLY)
Hayward, California, U.S.A.
Phone: 1-510-538-8599 (8 am - 5 pm, Mon - Fri, PST)
Fax:
1-510-538-5899
Email: support@minourausa.com
MADE IN JAPAN
(Shown with 700c road bike)
MINOURA Japan Headquraters
(for ALL customers)
1197-1 Godo, Anpachi, Gifu 503-2305 Japan
Phone: +81-584-27-3131
Fax:
+81-584-27-7505
Email: minoura@minoura.jp
Web: www.minoura.jp
(ver.1.1 2016/12)
Advertisement
Related Manuals for MINOURA LiveRide FG220
Summary of Contents for MINOURA LiveRide FG220
- Page 1 If you need help, please contact the shop first where you originally purchased this product or call the distributors Contact in your country. The distributors list can be found on our web site. MINOURA North American Tech Center MINOURA Japan Headquraters (for U.S. residents ONLY) (for ALL customers) Hayward, California, U.S.A.
- Page 2 • Minoura recommends the use of a completely slick (no tread) tire to reduce noise and increase the longevity of the tire and rollers.
- Page 3 Part Names Adapter Sleeve for 15mm Thru Axle Front Fork Support (Red, inside) (9mm Q/R, 15mm Thru Axle compatible) Front Frame Tripod Left Side Leg Front Frame / Tripod Center Leg Front Frame / Front Roller Tripod Right Side Leg (free spinning side) Center Frame Locking Knob Power Adjust Lever...
- Page 4 Flip out the retracted rear frame, and place on the floor. Adjust each foot adjuster length to sit stable. Turn the lock nut toward the frame to lock. Remove the front wheel from your bicycle and set the front fork into the mount firmly. Place the rear wheel on both rear rollers.
- Page 5 Adjust the center frame position properly that the rear tire contacts both rollers. If the tire touches the rear roller only and a clearance exists between the tire and the front roller, the center frame repeats jumping while riding. Set the rear frame backward. If the tire touches the front roller only, slippage occurs and it will bring premature tire wear.
- Page 6 How To Use The 15mm Thru Axle Required Tool : 3mm Hex Wrench (not included) (The bottom side of the fork mount) The front fork support is compatible with both the standard 9mm quick release skewer and the 15mm Headless thru type axle.
