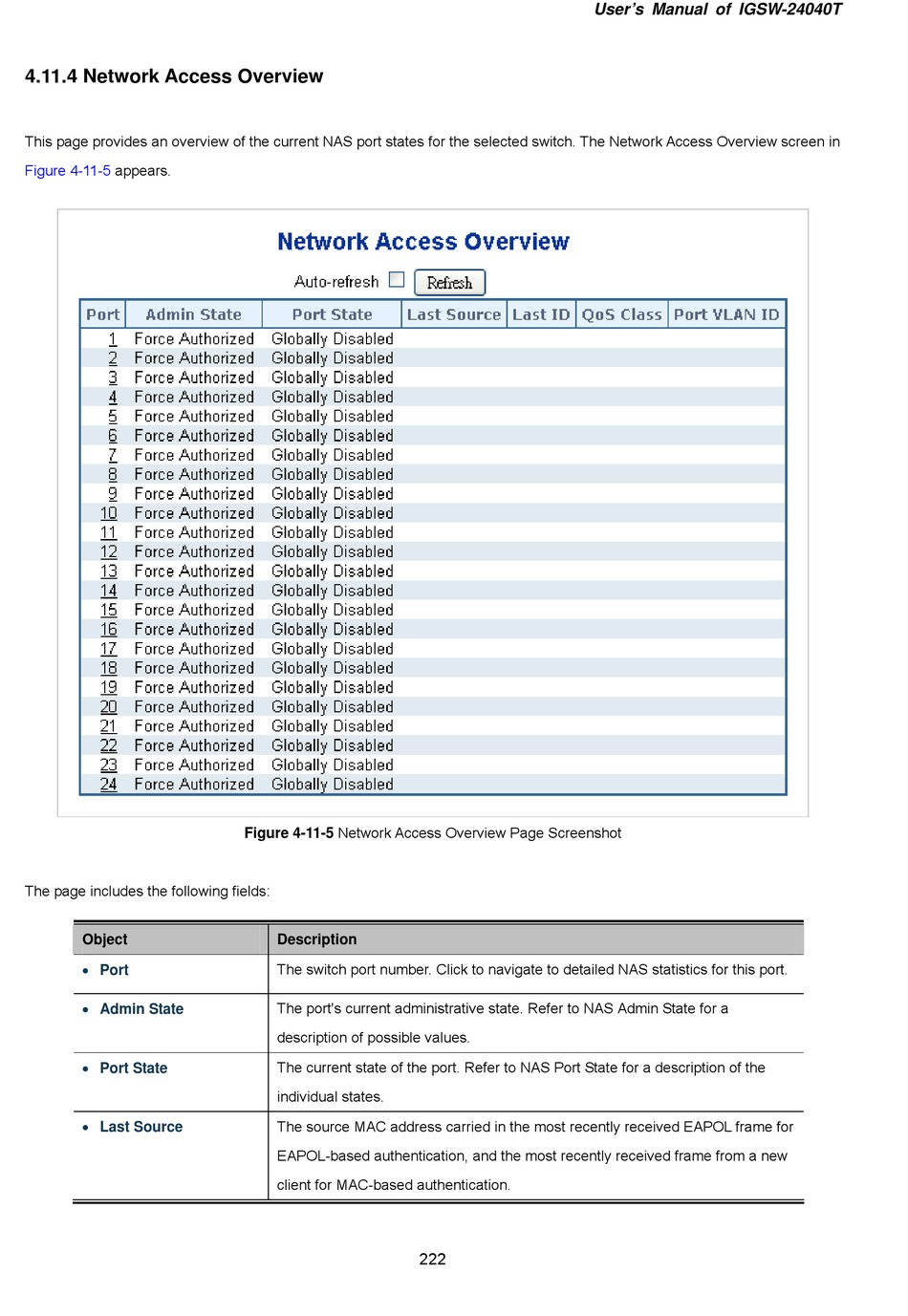

4.11.4 Network Access Overview

This page provides an overview of the current NAS port states for the selected switch. The Network Access Overview screen in
Figure 4-11-5 appears.
The page includes the following fields:
Object
 Port
 Admin State
 Port State
 Last Source
Figure 4-11-5 Network Access Overview Page Screenshot
Description
The switch port number. Click to navigate to detailed NAS statistics for this port.
The port's current administrative state. Refer to NAS Admin State for a
description of possible values.
The current state of the port. Refer to NAS Port State for a description of the
individual states.
The source MAC address carried in the most recently received EAPOL frame for
EAPOL-based authentication, and the most recently received frame from a new
client for MAC-based authentication.
