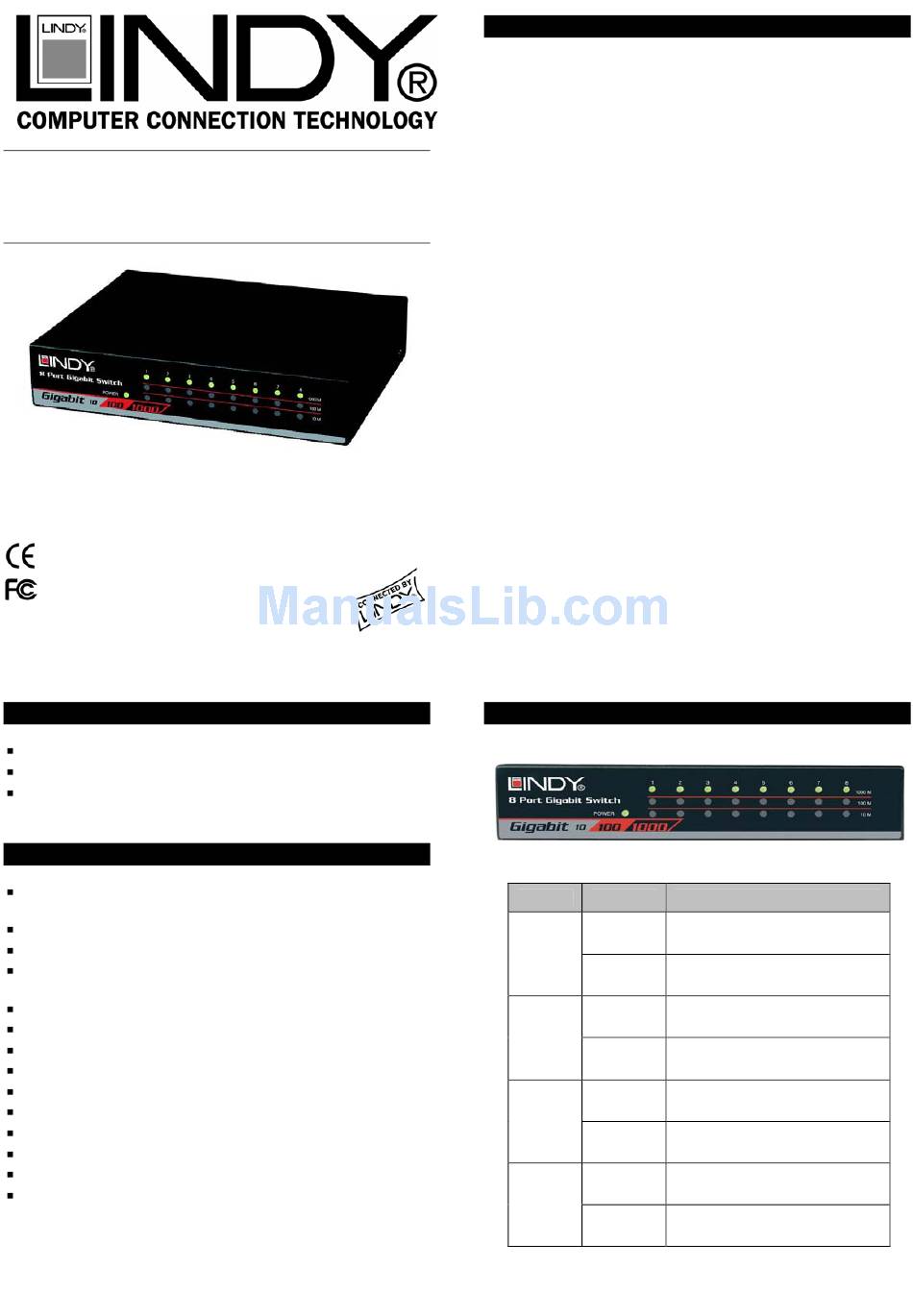

Lindy 25007 User Manual

Desktop Switch
User Manual
LINDY No. 25007
www.lindy.com
For Home and Office Use
Tested to Comply with FCC Standards
Packing List
8 Port Gigabit Desktop Switch
External Power Supply
This manual
Specifications
Standards: IEEE 802.3 10Base-T, 802.3u 100Base-TX,
802.3ab 1000Base-T
Ports: 8 x RJ-45 10/100/1000Mbps Gigabit Ethernet
Auto MDI/MDI-X (Auto crossover)
Network speed: 10/100/1000Mbps & Full/Half-duplex mode
auto detection (1000Mbps Full duplex only)
Switching Architecture: Store and Forward
MAC Address: 8K
Buffer Memory: 144kB
Nway Auto-negotiation: All ports
Dimensions: 146 x 118 x 33mm (WxDxH)
Weight: 0.5kg
Power Supply: 12V DC, 1A
Operating Temperature: 10-45°C
Operating Humidity: 10-90% (Non-condensing)
Cable Requirements: Gigabit requires RJ-45 STP/UTP, Cat.
5e or higher
8 Port Gigabit
English
Introduction
Thank you for purchasing the LINDY 8 Port Gigabit Desktop
Switch. This high-performance network switch is ideal for use in
either the home or the office. Its small footprint design means it
can easily fit on your desktop without taking up too much space.
All of its ports are capable of 10, 100 or 1000Mbps auto-
negotiation, while the 10/100/1000Mbps auto-sensing ability
provides the easiest, most hassle-free way to migrate from a
Fast Ethernet to a Gigabit Ethernet network.
This switch delivers a dedicated 10/100/1000Mbps connection to
every attached client with no bandwidth congestion issues. It
also supports an auto MDI/MDI-X function - each port can be
used to connect to another switch or hub without the need for
crossover cables!
Store-and-forward architecture is used by the switch to filter and
forward data after each packet is received and examined to be
free of errors. All of the ports support full and half-duplex
operation which doubles the network bandwidth and allows the
simultaneous transmission and reception of frames without
causing collisions.
The switch provides 9KB Jumbo frame support which can
improve network performance by allowing more data to be sent
per transmitted frame.
LED Indicators
LED Status
On
POWER
Off
On
1000M
Flashing
On
100M
Flashing
On
10M
Flashing
Operation
Power is on
Power is off
Connected at 1000Mbps
The port is transmitting or
receiving data
Connected at 100Mbps
The port is transmitting or
receiving data
Connected at 10Mbps
The port is transmitting or
receiving data
