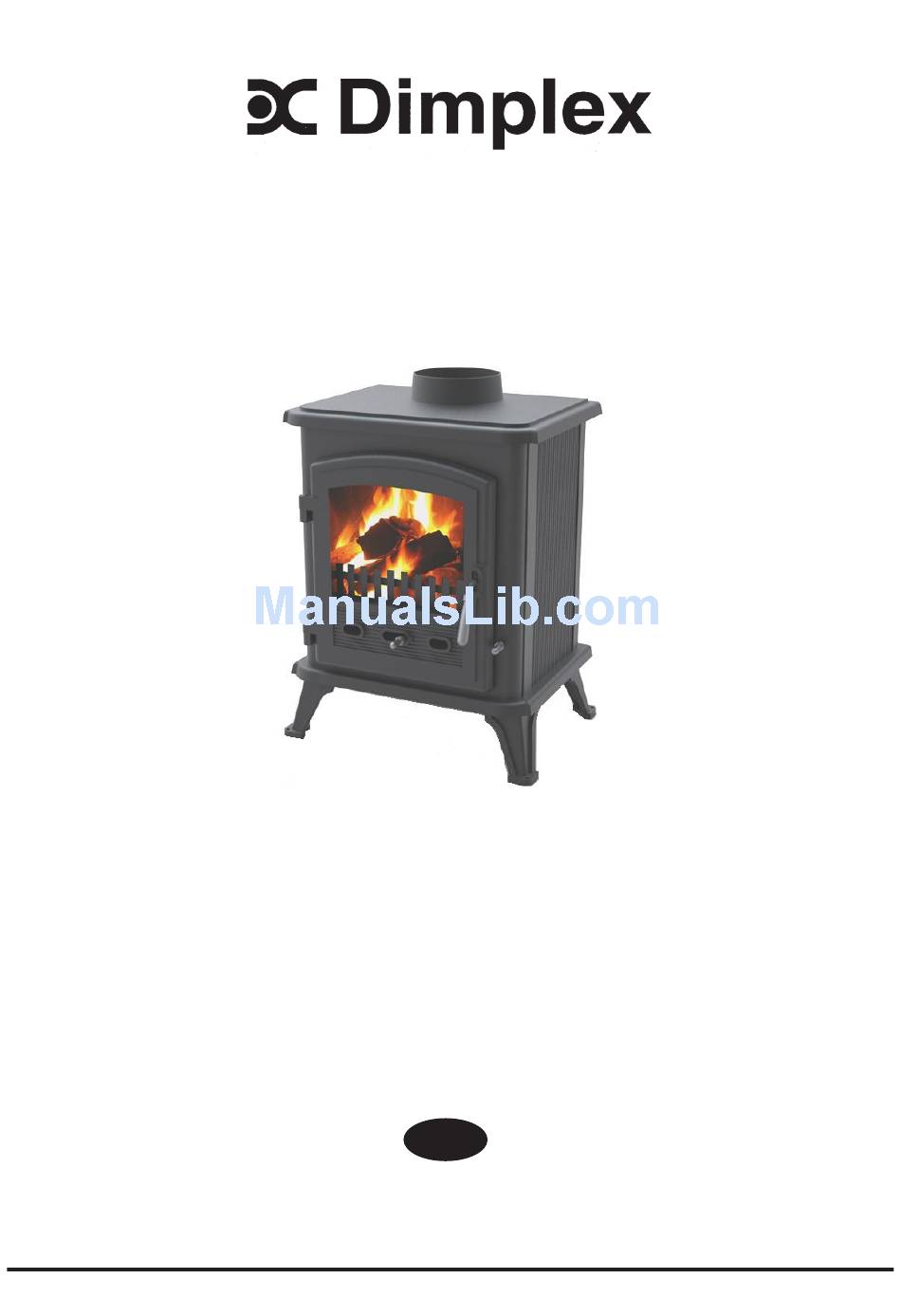

Westcott 5 Clean Burn Stove
Please hand these instructions to the stove user when installation
is complete. Leave the system ready for operation and instruct the
user in the correct use of the appliance and operation of controls.
Installation should only be carried out by a suitably qualified
installer that is registered with HETAS (UK) or with the Irish
Nationwide Fireplace Organisation (INFO).
Installation must comply with Building Regulations.
UK
08/51351/0 - Issue 0
The product complies with the European Safety Standards EN13240 for Room heaters fired by solid fuel.
Advertisement
Table of Contents
Related Manuals for Dimplex Westcott 5 WST5SE
Summary of Contents for Dimplex Westcott 5 WST5SE
- Page 1 Westcott 5 Clean Burn Stove Please hand these instructions to the stove user when installation is complete. Leave the system ready for operation and instruct the user in the correct use of the appliance and operation of controls. Installation should only be carried out by a suitably qualified installer that is registered with HETAS (UK) or with the Irish Nationwide Fireplace Organisation (INFO).
- Page 2 L (Dia) Table 1 - Dimensions Westcott 5 Clean Burn Note: All Dimensions in mm. Dimensions stated may be subject to a slight ± variation. ( 25.4mm = 1”) Table 2 - Technical Specification Westcott 5 Clean Burn Wood Only Fuel Type (Moisture <20%) Nominal heat output...
- Page 3 Solid, non-combustible material e.g. masonary or concrete Z = At least 150mm or to a suitably heat resistant wall (See table 3) See Table 3 CONSTRUCTIONAL HEARTH NON COMBUSTIBLE 150mm 125mm THICK MINIMUM 125mm Table 3 - Position of Hearth & Appliance from adjacent walls Hearth distance ‘X’...
-
Page 5: Important Safety Advice
- 1 - Westcott 5 Clean Burn Stove (WST5SE) IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE Health and Safety Precautions Important Safety Advice Handling: Adequate facilities must be available for the unloading Please read these instructions carefully before installing and handling of this appliance. - Page 6 - 2 - can be used. These chimneys must be fitted in accordance with the top to obtain maximum heat output and for access to the rear the manufacturers instructions and in compliance with Building of the stove for maintenance and cleaning. Regulations.
-
Page 7: Safety Notes For Your Guidance
- 3 - is fitted. If a ceiling fan is present it must be operated on max for Running the Stove the duration of the test. If there are any extraction fans in adjacent When your fuel is well alight you can start to restrict the primary rooms these too must be operated on maximum setting during the air intake. -
Page 8: General Maintenance
Chimney and/or flue pipe restricted, room ventilation restricted: • Only genuine Dimplex spare parts should be used. Parts that On installation these should have been checked but regular may need occasional replacement are: firebricks, ashpan, fire maintenance is necessary as conditions can change; e.g. soot grate, log guard. - Page 9 WESTCOTT 5 CLEAN BURN WESTCOTT 5 CLEAN BURN STOVE - SPARE PARTS Item Description Part No Door MF09015 Grate Accessory Pack (incl Grate Outer, Grate inner, Con Rod) MF10005 Front Bar (log bar) MF09018 Air Wash Plate MF10006 Top Brick Baffle Plate Assembly MF10007 Grate/Ashpan Operating Tool MF09007...
- Page 12 TEL: 0845 600 5111 DIMPLEX FAX: 01489 773050 MILLBROOK HOUSE WEBSITE: www.dimplex.co.uk GRANGE DRIVE HEDGE END Republic of Ireland Tel: 01 842 4833 SOUTHAMPTON SO30 2DF [c]A Division of GDC Group Ltd. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of...
