- Page 1 • Easy ‘How to use’ guides for storage heaters • Service and repairs • Where to buy our products • Literature downloads • Heating requirement calculator Visit ‐ www.dimplex.co.uk/support A division of GDC Group Ltd Registered No: 1313016 England VAT GB 287 1315 50004 Millbrook House Grange Drive Hedge End Southampton SO30 2DF EEE Producer Registration Number –...

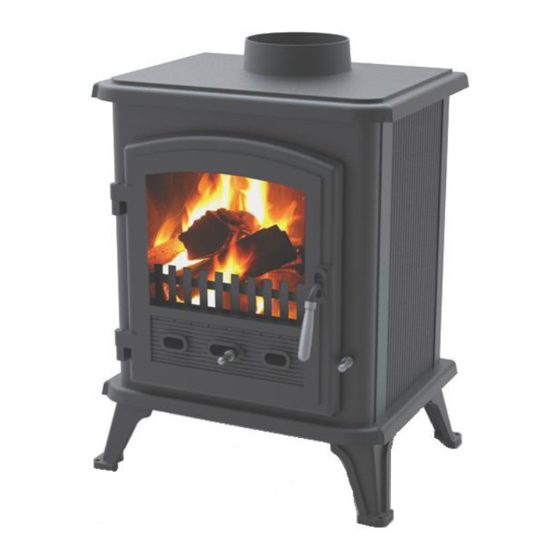

- Page 2 Westcott 5 Clean Burn Stove Please hand these instructions to the stove user when installation is complete. Leave the system ready for operation and instruct the user in the correct use of the appliance and operation of controls. Installation should only be carried out by a suitably qualified installer that is registered with HETAS (UK) or with the Irish Nationwide Fireplace Organisation (INFO).
- Page 3 L (Dia) Table 1 - Dimensions Westcott 5 Clean Burn Note: All Dimensions in mm. Dimensions stated may be subject to a slight ± variation. ( 25.4mm = 1”) Table 2 - Technical Specification Westcott 5 Clean Burn Wood Only Fuel Type (Moisture <20%)
- Page 4 Solid, non-combustible material e.g. masonary or concrete Z = At least 150mm or to a suitably heat resistant wall (See table 3) See Table 3 CONSTRUCTIONAL HEARTH NON COMBUSTIBLE 150mm 125mm THICK MINIMUM 125mm Table 3 - Position of Hearth & Appliance from adjacent walls Hearth distance ‘X’...
-
Page 6: Important Safety Advice
- 1 - Westcott 5 Clean Burn Stove (WST5SE) IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE Health and Safety Precautions Important Safety Advice Handling: Adequate facilities must be available for the unloading Please read these instructions carefully before installing and handling of this appliance. - Page 7 1.2mm. The diameter of the flue pipe should be 125mm The chimney should be checked before the stove is installed to (5”) for the Westcott 5 clean burn model. ensure that there is adequate flue pull. The draught can be checked Connect the flue pipe to the stove making sure that it fits snugly initially by using a smoke match close to the flue opening.
-
Page 8: Operating Instructions
- 3 - Operating Instructions of glowing embers to ignite fuel in a reasonable period. If there are too few embers add kindling first to get fire going again before Please read fully these operating instructions and advise any other refuelling. -
Page 9: Troubleshooting
- 4 - Safety Notes for Your Guidance Troubleshooting FIRES CAN BE DANGEROUS. 1. Poor heat output Always use a fire guard in the presence of children, the elderly a. Stove too small for room: Seek advice from a Qualified Heating or the infirm. -
Page 10: The Clean Air Act 1993 And Smoke Control Areas
Act to authorise smokeless fuels or exempt It is a condition of the guarantee that only genuine Dimplex spare appliances for use in smoke control areas in England. In Scotland parts are used. Parts that may need occasional replacement are and Wales this power rests with Ministers in the devolved fire bricks, ashpan, grate and log retainer. - Page 12 WESTCOTT 5 CLEAN BURN WESTCOTT 5 CLEAN BURN STOVE - SPARE PARTS Item Description Part No Door MF09015 Grate Accessory Pack (incl Grate Outer, Grate inner, Con Rod) MF10005 Front Bar (log bar) MF09018 Air Wash Plate MF10006 Top Brick Baffle Plate Assembly...
- Page 13 TEL: 0845 600 5111 DIMPLEX FAX: 01489 773050 MILLBROOK HOUSE WEBSITE: www.dimplex.co.uk GRANGE DRIVE HEDGE END Republic of Ireland Tel: 01 842 8222 SOUTHAMPTON SO30 2DF [c]A Division of GDC Group Ltd. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of...
