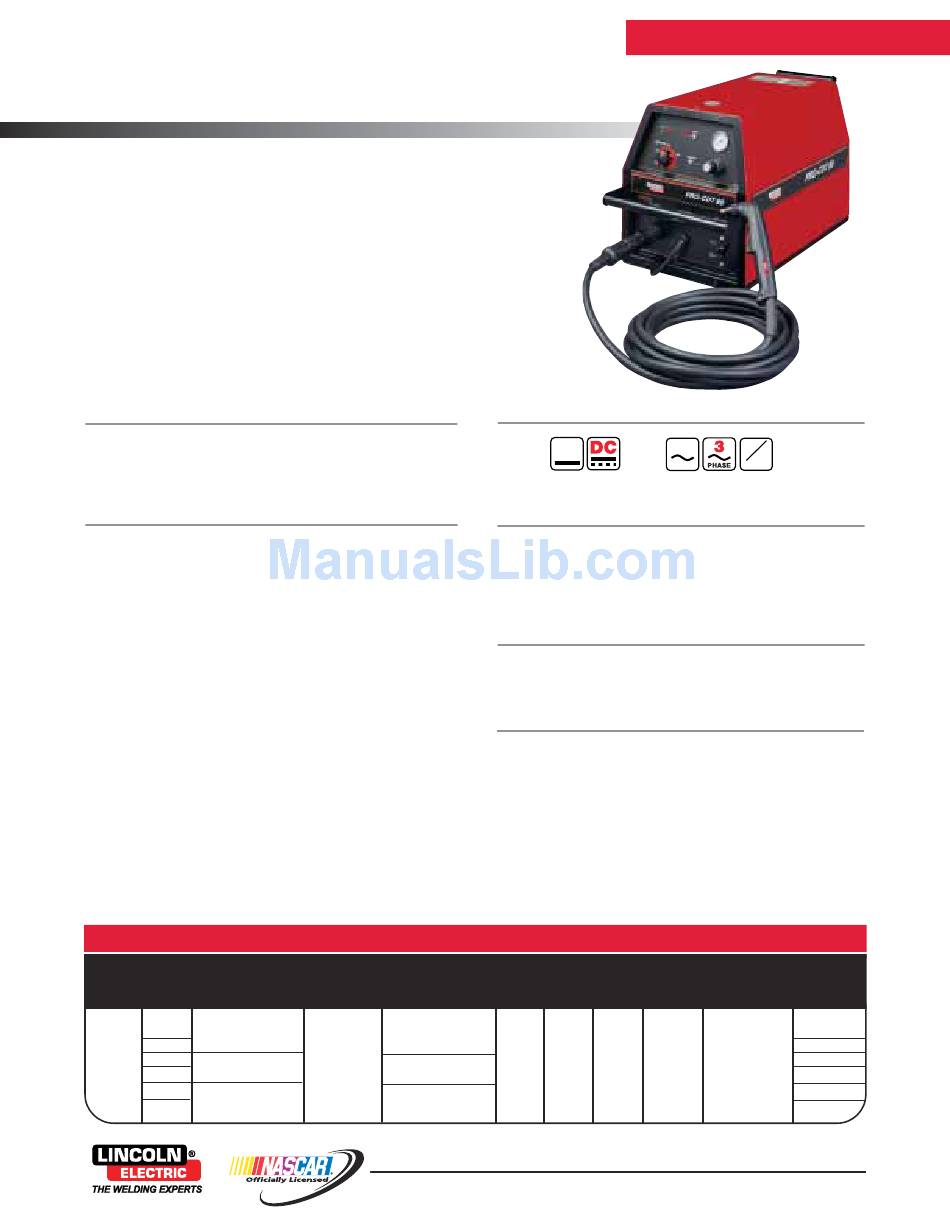

Lincoln Electric PCT 80 Technical Specifications

®
Pro-Cut
The Pro-Cut 80 exhibits maximum cutting ability with a full 85 amps of power,
slicing through metal up to 1-1/4" (32mm) thick with ease! Using six patented
technologies, the unit is perfect for maintenance, fabrication or other applications
which require cutting of thicker metals. The machine weighs only 95 lbs. (43 kg.)
and its optional "valet style" undercarriage provides uncluttered cable storage
and easy transport on the job site.
Processes
Air Plasma Cutting Gouging
Advantage Lincoln
• 85 amps of power for quality cut performance up to 1-1/4"
(32mm) in only a 95 lb. (43kg) package.
• Dual winding technology for fast arc transfers and improved cut
quality.
• Patented PCT 80 torch and VORTECH™ technology
consumables for excellent cutting speed and performance.
• Can be powered by most Lincoln engine driven welders for
ultimate portability.
• Back-lit LED system for status indicators eliminates confusion
yet conveys all the information necessary to monitor the power
source readiness.
• Parts-In-Place safety indicator and lockout circuit to protect
both the operator and the system.
• Quick disconnect torch for fast and easy torch removal.
• "Valet Style" undercarriage available for easy transport around
the shop or site.
• CNC/Robotic Interface is included as a standard feature.
• Three-year warranty on parts and labor. (1 year warranty on
plasma torch.)
Product Product Input
Name Number Power
K1581-1
K1581-2 208/230/460/1/3/50/60
K1581-3
Pro-Cut 80 K1581-4 460/575/3/50/60
K1677-1
K1677-2 200/380-415/3/50/60
80
TECHNICAL SPECIFICATIONS
Input
Rated Output Current @
Current/Duty Cycle Rated Output
1-ph: 87/81/48A
3-ph: 48/44/25A
80A/60%
65A/100% 3-ph: 25/20A
3-ph: 46/27/24A
PLASMA
Description
Output Input
CC
PHASE
Base Unit Includes
• PCT 80 Torch
• Work lead and clamp
• Spare consumables
• Built-in air filter and pressure regulator with gauge
Recommended General Options
Valet Style Undercarriage, Combination Circle Cutting Kit, Inverter
and Wire Feeder Cart, Suction Pivot, Replacement Bushing,
Torches
Order
K1581-1 w/25 ft. (7.6m) torch
K1581-2 w/50 ft. (15.2m) torch 208/230/460/1/3/50/60
K1581-3 w/25 ft. (7.6m) torch
K1581-4 w/50 ft. (15.2m) torch 460/575/3/50/60
K1677-1 w/25 ft. (7.6m) torch
K1677-2 w/50 ft. (15.2m) torch 220/380/415/3/50/60
Air Air
Pilot Output Pressure Flow
Current Range Required Rate
18A 35-85A 70 PSI 480 SCFH
1 50
60
Hz
208/230/460/1/3/50/60
460/575/3/50/60
220/380/415/3/50/60
Dimensions Net Weight
H x W x D w/Torch
in. (mm) lbs (kg)
98 (44.5)
113 (51.4)
13.7 x 16.5 x 29.5 98 (44.5)
(348 x 419 x 749) 113 (51.4)
98 (44.5)
113 (51.4)
Publication E11.70 3/04
