Marantz DV2100 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Service
Manual
1.
TECHNICAL SPECIFICATIONS ............................................................................. 1
2.
CONNECTION FACILITIES .................................................................................... 2
3.
INFORMATIONS ..................................................................................................... 3
4.
SERVICE HINTS AND TOOLS ............................................................................... 4
5.
WARNING AND LASER SAFETY INSTRUCTIONS ............................................... 5
6.
BLOCK DIAGRAM .................................................................................................. 7
7.
WIRING DIAGRAM ................................................................................................. 9
8.
SCHEMATIC DIAGRAM AND PARTS LOCATION ............................................... 11
9.
SERVICE MODE .................................................................................................. 25
10.
WAVEFORM ......................................................................................................... 26
11.
REMOVE THE DVD MECHANISM ....................................................................... 27
12.
IC DATA ................................................................................................................ 28
13.
EXPLODED VIEW AND PARTS LIST ................................................................... 33
14.
ELECTRICAL PARTS LIST ................................................................................... 36
DB-VLD101/102 DVD Loader
2.1
EXTERIOR .......................................................................................................... 2-1
2.2
LOARDING MECHANISM ASS'Y ....................................................................... 2-2
2.3
TRAVERSE MECHANISM ASS'Y ....................................................................... 2-3
DB-VPB220/221 DVD PCB Module
3.1
BLOCK DIAGRAM AND SCHEMATIC DIAGRAM .............................................. 3-1
3.2
PCB CONNECTION DIAGRAM ........................................................................ 3-12
3.3
PCB PARTS LIST ............................................................................................. 3-25
Please use this service manual with referring to the user guide (D.F.U) without fail.
STANDBY

TABLE OF CONTENTS

DV2100
96kHz
5.1CH
OSD
CONDITION
ANGLE
DOWN MIX
LAST MEMO
REM
TITL
TIME
TRK
CHP
TOTL
REM
TRK
TIME
TOTL
REM STEP
SYNC
DIG
MANU OPT
ANA
SCAN
PROG
TRK
RAND
REPT ALL A-B
SYS
L
CD -R W
CD -R W
R
DUBBING
Dolby V
DV2100/
N1S, /C1S
DVD Player
OPEN/CLOSE
404K855010 AO
3120 785 22520
First Issue:2001.07

Advertisement

Table of Contents
loading

Related Manuals for Marantz DV2100

Summary of Contents for Marantz DV2100

  • Page 1: Table Of Contents

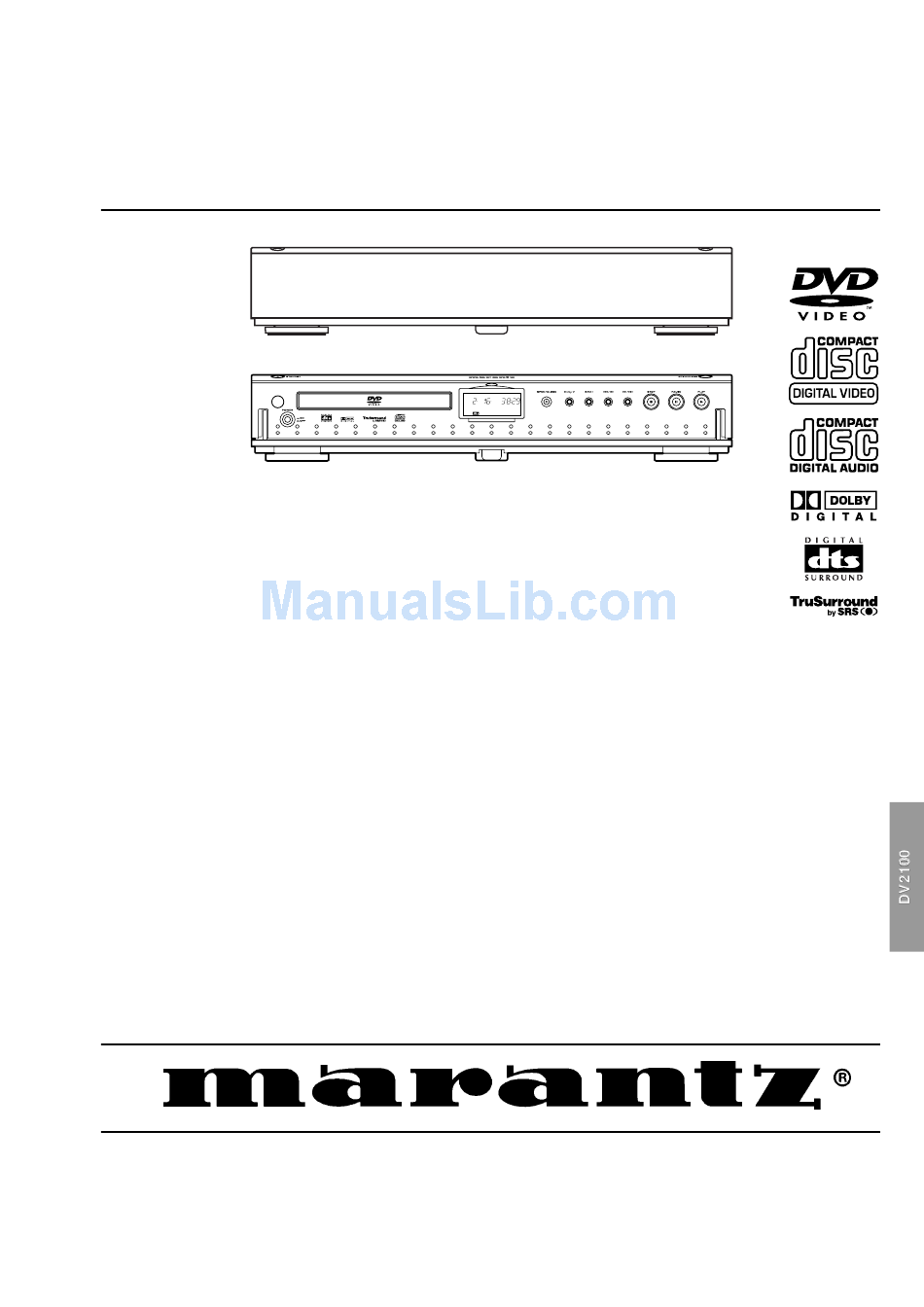

    Service DV2100/ N1S, /C1S Manual DVD Player STANDBY OPEN/CLOSE 96kHz 5.1CH CONDITION ANGLE DOWN MIX LAST MEMO TITL TIME TOTL TIME TOTL REM STEP SYNC MANU OPT SCAN PROG RAND REPT ALL A-B CD -R W CD -R W DUBBING...
  • Page 2 MARANTZ Parts for your equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified.
  • Page 3 1. TECNICAL SPECIFICATIONS General System..................... DVD system and Compact Disc digital audio system Power requirements N Version............................AC230V, 50Hz, 17W C Version............................AC220V, 60Hz, 16W Weight..................................4.2kg Dimensions........................420 (W) x 309 (D) x 76 (H) mm (Not including protruding cables, etc.) Operating temperature.......................

  • Page 4: Connection Facilities

    2. CONNECTION FACILITIES SCART (/N1S versions only) Full according PQR3 IMS Connector implementation according EN50049-1; color = black; dual SCART Fully according to prEN1057-2-1 Signal switching is P50 controlled; supported features of mode 3 see survey of applicable standards. 2-1 Video performance (/N1S only) 1 3 5 7 9 11 13 15 17 19 2 4 6 8 10 12 14 16 18 20 2-1-1 SCART II (connected to TV)

  • Page 5: Informations

    Please refer to the DVD’s manual /C1S ASIAN PACIFIC to see which scenes have multi-angles. THE DISCS THAT THE DV2100 CAN HANDLE The following discs can be played back with a DV2100. disc mark playback capability size...

  • Page 6: Service Hints And Tools

    4. SERVICE HINTS AND TOOLS SERVICE TOOLS The tools listed below are standard test tools that can be used for repairing and testing Marantz CD Players & Recorders. Audio signals disc 4822 397 30184 Disc without errors (SBC444)+ Disc with DO errors, black spots and fingerprints (SBC444A)

  • Page 7: Warning And Laser Safety Instructions

    5. WARNING AND LASER SAFETY INSTRUCTIONS WARNING WAARSCHUWING All ICs and many other semi-conductors are Alle IC’s en vele andere halfgeleiders zijn susceptible to electrostatic discharges (ESD). gevoelig voor elektrostatische ontladingen Careless handling during repair can reduce (ESD). life drastically. Onzorgvuldig behandelen tijdens reparatie When repairing, make sure that you are kan de levensduur drastisch doen...

  • Page 8: Laser Safety

    LASER SAFETY This unit employs a laser. Only a qualified service person should remove the cover or attempt to service t his device, due to possible eye injury. LASER DEVICE UNIT Type: Semiconductor laser GaAlAs Wave length: 650 nm (DVD) 780 nm (VCD/CD) Output Power: 7 mW (DVD)

  • Page 9: Block Diagram

    6. BLOCK DIAGRAM J102 DIR_LRCK Q441 DIR_BCK DVD_DTS COAX J101 DVD MODULE AV_LRCK SYS_MUTE DVD/THROUGH AV_BCK SYS-L Q401 2CH/6CH DIR_DATA AC3/PCM J301 Q501 SYS-R Q502 DIR_LRCK Q551 2CH L/R DIR_BCK DTS_L/R 6CH L/R DTS_LS/RS Q451 DTS_C/LFE L/R(2CH) ,AV1_LRCK AV1_BCK FL/FR , C/LFE LS/RS J201 L/R(2CH) LS/RS...

  • Page 10: Wiring Diagram

    7. WIRING DIAGRAM JF06 FOR DOWNLOAD SOFTWARE TO uP JF01 JF07 JF08 PF02 PF04 RC LEFT PCB KEY_DOOR KEY_DOOR DOOR FROB CN602 PF01 JF12 JF11 JF05 PF05 -12V P-MUTE FRONT PCB D-MOTOR-FWD STB+5 STB+5 D-MOTOR-REW POWERON POWER_ON CENTER EV+5V EV+5V DVD Mechanism Module GNDD S-OUT...

  • Page 11: Schematic Diagram And Parts Location

    8. SCHEMATIC DIAGRAM AND PARTS LOCATION VF01 HLC7599-016600 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 PF01 WG404K1060 KEY0...
  • Page 12 J302 Q391 V+5M FROM PS01 JD01 1(C-15) TO DOOR MOTOR GND TERMINAL uPC29M10HB -14.5V M-GND Q360 DRIVE2 11.0V STB_MUTE R399 0 8.9V DTC124EUA V+12A DRIVE1 DRIVE1 4.8V R398 0 6CH/2CH- -14.1V R392 -12V EARTH DRIVE2 D_CLOSE_SW D-CLOSE 470K P_MUTE R397 0 -13.7V R116 -13.7V...
  • Page 13 V+12V PJ01 QV06 V+12V 11.0V HN1C01F(1/2) WG404K1010 V-GND V-GND 11.0V RV51 V-GND QV04 LA7138M QV06 FROM DVDM CN901 1.2V HN1C01F(2/2) C1S ONLY COMPOSITE JV01 FV01 NFM40R01C221 JV02 VIDEO RV06 MUTE RV08 RV09 VSEL1 V-GND V-GND OUTPUT RV04 220 TYPE_SEL V_OUT SQUEEZE (YELLOW) CV07 0.1...
  • Page 14 F950 NFM41R01C221 R950 PC01 A-GND A-GND WG404K1020 F951 NFM41R01C221 R951 V+5VA V+5VA 4.8V A-GND A-GND 4.8V Q801 2SC4116 1 R801 F801 NFM41R01C221 C809 R805 R806 V-GND 100/10V VV+12V VV+12V Q802 2sc4116 V-GND V-GND J802 SCART CONNECTOR 11.0V V-GND V-GND V-GND R_OUT Q803 R_IN...
  • Page 15 QD01 PIN NO. QP15 QP16 2SC4116 2SA1586 0.5V 11.4V 7.5V 0.7V 1.7V -13.6V DP13 SFPL52 PS01 RP45 12.4V 6.7V QD01 12.4V LB1641 0.7V WG404K1030 5.8V RD03 0.5V 4.7 1/2W DP16 1SS301 RD02 2.7k CD05 220/16V 5.5V RP46 DP15 CD02 CD03 1SS301 0.01 0.01...
  • Page 16 QF04 QF07 QF05 QF16 QF15 QF02 QF08 QF03 QF10 QF09 PF01 QF06 Q201 Q360 Q251 Q355 Q356 Q302 Q551 QV02 QV01 Q284 Q283 Q234 Q233 Q306 Q305 Q352 Q354 Q353 Q301 Q441 QV03 QV05 QV04 QV06 Q391 Q282 Q281 Q232 Q231 Q304 Q303...
  • Page 17 QP08 PC01 QP07 QP10 QP09 QP19 QP18 QP14 QP04 Q802 Q803 Q807 Q809 PS01 QP12 QP11 QP16 QP15 QP17 QP13 QP03 QP01 QD01 N1S ONLY Q801 Q804 Q806 Q808 Q812 PF02 QF11 QF12 PF03 PF04 QF13 PS02 PS03 N1S ONLY QF14 PF05...

  • Page 18: Service Mode

    “ POWER_LED” is displayed Product version is displayed EURO 2 Press<FORWARD > DV2100/N1S-----EURO 2 DV2100/C1S ----- ASIA All parts of LCD is turned on Press<FORWARD > Press<FORWARD > Version of Front -COM is displayed Each Segment is displayed on e by one “...

  • Page 19: Remove The Dvd Mechanism

    4. Move a screwdriver from rear to front, and turn the gear pulley in the hole. (See Fig. 3) 5. then the tray is moved a little. Pull the tray with your hand at this time. Bottom of DV2100 Removed this leg.

  • Page 20: Ic Data

    12. IC DATA QF02 : MB9055A PIN CONFIGURATION P20/A16 PA4/CKOT P21/A17 P22/A18 P23/A19 P24/A20 PA1/OUT3 P25/A21 PA0/OUT2 P26/A22 P97/PPG5 P27/A23 P96/PPG4 P30/ALE P95/PPG3 P94/PPG2 P31/RD P93/PPG1 P32/WRL P92/PPG0 P33/WRH P91/OUT1 P34/HRQ P92/OUT0 P35/HAK P87/IN3 P36/RDY P86/IN2 P37/CLK P85/IN1 P40/SCK P84/IN0 P83/TOT1 P41/SOT P42/SIN...
  • Page 21 Q501:YSS912C PIN CONFIGURATION BLOCK DIAGRAM SDOB Interface VDD1 /CSB RAMD7 RAMCEN 24 * 16 OVFB RAMD6 RAMA16 Sub DSP RAMA0 RAMD5 RAMOEN RAMA15 RAMWEN RAMD4 SDIB0 RAMCEN RAMD3 SDIB1 RAMD2 SDIB2 SDIB Interface RAMD0 7 RAMD1 RAMD0 SDIBSEL VDD1 SDIB3 SDIB2 RAMA2 AVDD...
  • Page 22 Q401:UDA1328T BLOCK DIAGRAM VDDD VSSD STATIC MUTE DEEM1 CONTROL DATAI12 DEEM0 DIGITAL INTERFACE INTERFACE DATAI34 L3CLOCK DATAI56 L3DATA L3MODE VOLUME / MUTE / DE-EMPHASIS TEST1 SYSCLK INTERPOLATION FILTER TEST2 6 Channel NOISE SHAPER TEST3 VOUT1P VOUT2P VOUT2N VOUT1N PIN FUNCTION VOUT3 VOUT4 SYMBOL...
  • Page 23 QF01:NJU6450A PIN FUNCTION BLOCK DIAGRAM Page Address Register I / O Buffer Page Address Decoder ~SEG ~COM Line Decoder Line Counter E (RD) Common Displey Timing Timing R/W (RD) Staet Line Register Generator Generator PIN CONFIGURATION NJU6450A...

  • Page 24: Exploded View And Parts List

    13. EXPLODED VIEW AND PARTS LIST 9 0 1 G( N ) ONLY W0 0 1 5 1 2 7 0 0 1 D 3 X 8 ( K ) 5 1 2 7 5 1 2 7 3 X 8 ( K ) 3 X 8 ( K ) 5 1 5 7 J P 0 1...
  • Page 25 PACKING CASE 404K801010 002S CUSHION L SIDE 399K809010 003S CUSHION R SIDE 399K809020 013S CUSHION FOR SET TOP SIDE 327J809110 001M DVD MECHANISM 404K304500 (DB-VLD101) NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

  • Page 26: Electrical Parts List

    14. ELECTRICAL PARTS LIST NOTE ON SAFETY FOR FUSIBLE RESISTOR : ASSIGNMENT OF COMMON PARTS CODES. RESISTORS The suppliers and their type numbers of fusible resistors are as 1) GD05 x x x 140, Carbon film fixed resistor, 5% 1/4W follows ;...
  • Page 27 4822 130 60669 CHIP TRS. 2SC4081(Q R) HX300012A0 RF41 4822 051 30103 5% 1/16W NN05103610 2SC4116(Y GR) RF42 4822 116 83215 5.6k 5% 1/16W NN05562610 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 28 4822 124 41539 ELECT 47 F M 16V OA47601620 C133 9965 000 08352 CER. 0.1 F +80 -20% 50V F DK98104300 C201 4822 124 23052 ELECT 100 F 16V EJ10701610 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 29 4822 051 30479 CHIP 5% 1/16W NN05470610 C452 4822 126 11687 CER. 0.1 F +80 -20% 25V F DK98104200 RV52 4822 051 30479 CHIP 5% 1/16W NN05470610 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 30 4822 130 83715 CHIP DIODE 1SS301 DAN202U HZ21005000 D302 4822 130 83715 CHIP DIODE 1SS301 DAN202U HZ21005000 D351 4822 130 83715 CHIP DIODE 1SS301 DAN202U HZ21005000 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 31 JV06 N 9965 000 08365 JACK 19FMN-BMTTN-TFT YJ07014250 RP07 4822 053 11823 METAL 82k 5% 2W NK05823020 RP08 4822 053 11823 METAL 82k 5% 2W NK05823020 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 32 4822 130 10431 PHOTO UNIT COUPLER HW10032320 PC-123F2 QP04 9965 000 06384 IC TL431CZ HC33036590 QP07 9965 000 00399 IC SI-3033C +3.3V 1.5A WITH HC36903080 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 33 DB-VLD102 TABLE OF CONTENTS SECTION PAGE 2. DB-VLD 101/102 (DVD Loader for MARANTZ) 2.1 EXTERIOR ............................2-1 2.2 LOARDING MECHANISM ASS'Y......................2-2 2.3 TRAVERSE MECHANISM ASS'Y ....................... 2-3 Please use this service manual with referring to the user guide (D.F.U) without fail.

  • Page 34: Exterior

    9965 000 10286 VNE2069 Bridge 404K104110 9965 000 07948 VNL1738 Clamper 402K005210 BPZ26P080FZK Screw VWT1162 Loading Mechanism Assy NOTE : "NSP" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. Unhook Unhook DISASSEMBLY OF TRAVERSE Traverse Mechanism MECHANISM ASS'Y...

  • Page 35: Loarding Mechanism Ass'y

    9965 000 10295 VNL1815 Float Base 404K104210 9965 000 07945 VEB1286 Floating Rubb er 402K056210 9965 000 10296 VDA1701 (VDA1748) Flexible Cable (24P) *YU000900R (Pickup Assy--DVDM CN4) VEB1312 Cushion 404K056110 NOTE : "NSP" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

  • Page 36: Traverse Mechanism Ass'y

    36 9965 000 07960 VXX2650, Carriage Motor Assy *ZK000300R NSP 18 — VNE2155, Cover — NSP 37 — PBA1069, Screw — NSP 19 — VNL1746, Centering Ring — NOTE : "NSP" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
  • Page 37 DB-VPB221 TABLE OF CONTENTS SECTION PAGE 3. DB-VPB220 / 221 (DVD PCB Module for MARANTZ) 3.1 BLOCK DIAGRAM AND SCHEMATIC DIAGRAM .................. 3-1 3.2 PCB CONNECTION DIAGRAM ......................3-12 3.3 PCB PARTS LIST ..........................3-25 Please use this service manual with referring to the user guide (D.F.U) without fail.

  • Page 38: Block Diagram And Schematic Diagram

    3.1 BLOCK DIAGRAM AND SCHEMATIC DIAGRAM 3.1.1 BLOCK DIAGRAM 36/16M DVDM ASSY (24P) (24P) YCBR0-7 CN120 SPDL (Y0-Y7) (26P) 95-98, MOTOR OEIC MPEG2 100-103 CN110 RF IC SD0-SD7 DSPRF 149,150, DECODER 7,6, 7,6, B1-B4 57-60 IC101 152-155, M + 6V ENCODER DOUT0 63-66...
  • Page 39 3.1.2 LOMB, LOSB, SMEB, FGSB ASSYS and OVERALL WIRING DIAGRAM 1/4- DVDM ASSY DB-VPB220 (VWS1465) DB-VPB221 (VWS1466) : RF SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : SLIDER SERVO LOOP LINE PICKUP ASSY (VWY1055) FGSB ASSY (VWG2009) PC101 GP2S60...
  • Page 40 3.1.3 DVDM ASSY (1/4) (DVD) (DVD) (CD) RF IC SPINDLE & FTS DRIVER...
  • Page 41 DVDM ASSY (VWS1465, VWS1466) : The power supply is shown with the marked box. : RF SIGNAL ROUTE : ROM DATA SIGNAL ROUTE : FOCUS SERVO LOOP LINE : TRACKING SERVO LOOP LINE : SLIDER SERVO LOOP LINE (DVD) (DVD) DB-VPB221 Not used Not used DB-VPB220...
  • Page 42 3.1.4 DVDM ASSY (2/4) DVDM ASSY (VWS1465, VWS1466) CONVERTER IC611 WORK SRAM MC74VHCT541ADT 1/4,4/4 IC612 MC74VHCT541ADT CONVERTER VYW1750 X801 DSS1110 20MHz BASE ASIC...
  • Page 43 : RF SIGNAL ROUTE 4M DRAM : ROM DATA SIGNAL ROUTE : AUDIO SIGNAL ROUTE MN414800CSJ-07 BY CHIP DVD ENCODER (DVD) (DVD) CN101...
  • Page 44 3.1.5 DVDM ASSY (3/4) 16M SDRAM DVDM ASSY (VWS1465, VWS1466) MPEG2 DECODER CONVERTER...
  • Page 45 : ROM DATA SIGNAL ROUTE : AUDIO SIGNAL ROUTE CLOCK GENERATOR BLOCK...
  • Page 46 3.1.6 DVDM ASSY (4/4) DVDM ASSY (VWS1465, VWS1466) DB-VPB221 ONLY DB-VPB221 : 20kF DB-VPB220 : 82kF VIDEO ENCODER 13 16 12 15 14 17 DB-VPB221 : 180F DB-VPB220 : 220F...
  • Page 47 : ROM DATA SIGNAL ROUTE : AUDIO SIGNAL ROUTE : V SIGNAL ROUTE : Y SIGNAL ROUTE : C SIGNAL ROUTE : R SIGNAL ROUTE : G SIGNAL ROUTE : B SIGNAL ROUTE 1/4, 2/4 CONVERTER IC905 MC74VHCT541ADT CN666 DB-VPB221 : R949 (0 DB-VPB220 : L9490 (VTL1105) CN999 DB-VPB221 ONLY...
  • Page 48 WAVEFORMS Note : The encircled numbers denote measuring point in the schematic diagram. Measurement condition : No. 1 to 4 and 6 to 11 : Disc MA1, Title 1-chp 1 No. 5 : CD, ABEX-784 Track 1 No. 12 to 14 : MJK1, Title 1-chp 4 or T2-1 No.

  • Page 49: Pcb Connection Diagram

    3.2 PCB CONNECTION DIAGRAM NOTE FOR PCB DIAGRAMS : 1. Part numbers in PCB diagrams match those in the schematic 3. The parts mounted on this PCB include all necessary parts for diagrams. several destinations. 2. A comparison between the main parts of PCB and schematic For further information for respective destinations, be sure to diagrams is shown below.
  • Page 50 3.2.2 DVDM ASSY J601 JV01 JV05 DVDM ASSY IC23 IC26 IC24 Q810 Q808 Q803 Q804 Q805 IC25 Q809 Q807 Q811 IC21 IC801 IC807 IC22 VC21 Q801 Q802 IC806 IC903 IC261 IC303 PICKUP ASSY IC302 IC702 IC610 Q111 Q107 Q112 IC101 IC601 CN301 Q102 IC761...
  • Page 51 • This PCB is a four-layered board. DVDM ASSY IC905 IC906 IC803 IC27 IC805 IC802 IC73 CN101 IC701 IC201 Q542 IC231 Q179 IC608 Q106 IC299 Q105 Q108 Q543 IC904 IC609 Q113 Q114 IC611 IC612 IC751 Q101 Q103 IC792 IC604 Q251 IC791 IC607 (VNP1706-B)
  • Page 52 3.2.3 IC • The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams. • List of IC CY2081SL-655, PD3410A, VYW1693, M65773AFP, LC89051V, YSS912C CY2081SL-655 (DVDM ASSY : IC21) • Clock Generate IC •...
  • Page 53 PD3410A (DVDM ASSY : IC601) • System Control IC • Pin Function t f i t s i c t i l l i t f i t s i , c i - t l , c i - t l l a i e l l , c i...
  • Page 54 c t i c t i c t i c t i c t i c t i c t i c t i i n i l l o 3-17...
  • Page 55 t i s d i l t i s l l o l a i e l l l a i e l l e l l 3-18...
  • Page 56 3-19...
  • Page 57 VYW1750 (DVDM ASSY : IC603) • 16M bit Flash Memory IC • Block Diagram - DQ 29-36,38-45 RY/BY RY/BY Buffer Erase Voltage Input/Output Generator Buffers State Control BYTE RESET Command Program Voltage Register Generator Chip Enable Output Enable Data Latch Logic Y-Decoder Y-Gating...
  • Page 58 M65773AFP (DVDM ASSY : IC801) • MPEG2 Decoder IC • Block Diagram 16M bit SDRAM SDRAM Bit Streem Descrambler Controller Bit Streem Input Interface Video Decoder Sub-picture Decoder Internal Display Processor Special Playback 16M DRAM Processor Host Host CPU Video Output Interface Video Output Interface...
  • Page 59 Pin Function Pin Function ly l n i l n i l n i l n i l 3-22...
  • Page 60 Pin Function Pin Function n i l n i l n i l n i l n i l n i l n i l n i l n i l n i l n i l n i l n i l n i l n i l...
  • Page 61 LC89051V (DVDM ASSY : IC903) • Digital Audio IC • Block Diagram Input Block C bit Detection Data Demodulation Microcontroller Timing Block Interface C bit Detection TEST1 Mute Output Mute Output TEST TEST2 XMODE 21 22 20 • Pin Function - t l i f i l l a i...

  • Page 62: Pcb Parts List

    ( DB-VPBxxx ) ( for PCS ) ( for MJI ) OTHERS CN401 B2B-PH-K-S KR CONNECTOR NOTE : "NSP" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. LOSB ASSY Ver. Part No. Part No. Description Mark...
  • Page 63 9965 000 10314 VTL1105 CHIP BEAD *FC900260R CAPACITORS C612 CCSRCH100D50 C123,C145,C21,C282 CCSRCH101J50 C617 CCSRCH120J50 C104-C108,C126,C333 CCSRCH150J50 C206,C210,C211 CCSRCH151J50 C322 CCSRCH180J50 C116,C151,C314 CCSRCH220J50 C152 CCSRCH221J50 NOTE : "NSP" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 3-26...
  • Page 64 C109,C110,C120,C131 CKSRYF104Z16 C148 C150,C202,C215,C221 CKSRYF104Z16 C222 C226,C230,C235,C265 CKSRYF104Z16 C31,C33,C35,C359,C367 CKSRYF104Z16 C369-C372,C402,C404 CKSRYF104Z16 C406 C408,C410,C412,C501 CKSRYF104Z16 C602-C611,C613-C616 CKSRYF104Z16 C621-C623,C625-C627 CKSRYF104Z16 C630,C631,C702 CKSRYF104Z16 C704-C714 C716-C721,C723-C725 CKSRYF104Z16 NOTE : "NSP" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 3-27...
  • Page 65 RS1/16S2000F R870,R873 RS1/16S2000F R891 RS1/16S8202F R891 RS1/16S2002F R847 RS1/16S2200F R894 RS1/16S3902F R829,R888 RS1/16S4700F R869,R872,R875 RS1/16S4700F R895 RS1/16S4700F R164 RS1/16S5600F R3510 VCN1120 Other Resistors RS1/16SxxxJ NOTE : "NSP" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 3-28...
  • Page 66 9965 000 10315 VSS1129 CRYSTAL *JX000670R RESONATOR (13.824MHz) 002A VWS1465 DB-VPB220 ZK404K0220 DVD PCB MODULE 002A 9965 000 10316 VWS1466 DVD PCB MODULE DB-VPB221 ZK404K0210 NOTE : "NSP" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 3-29...
