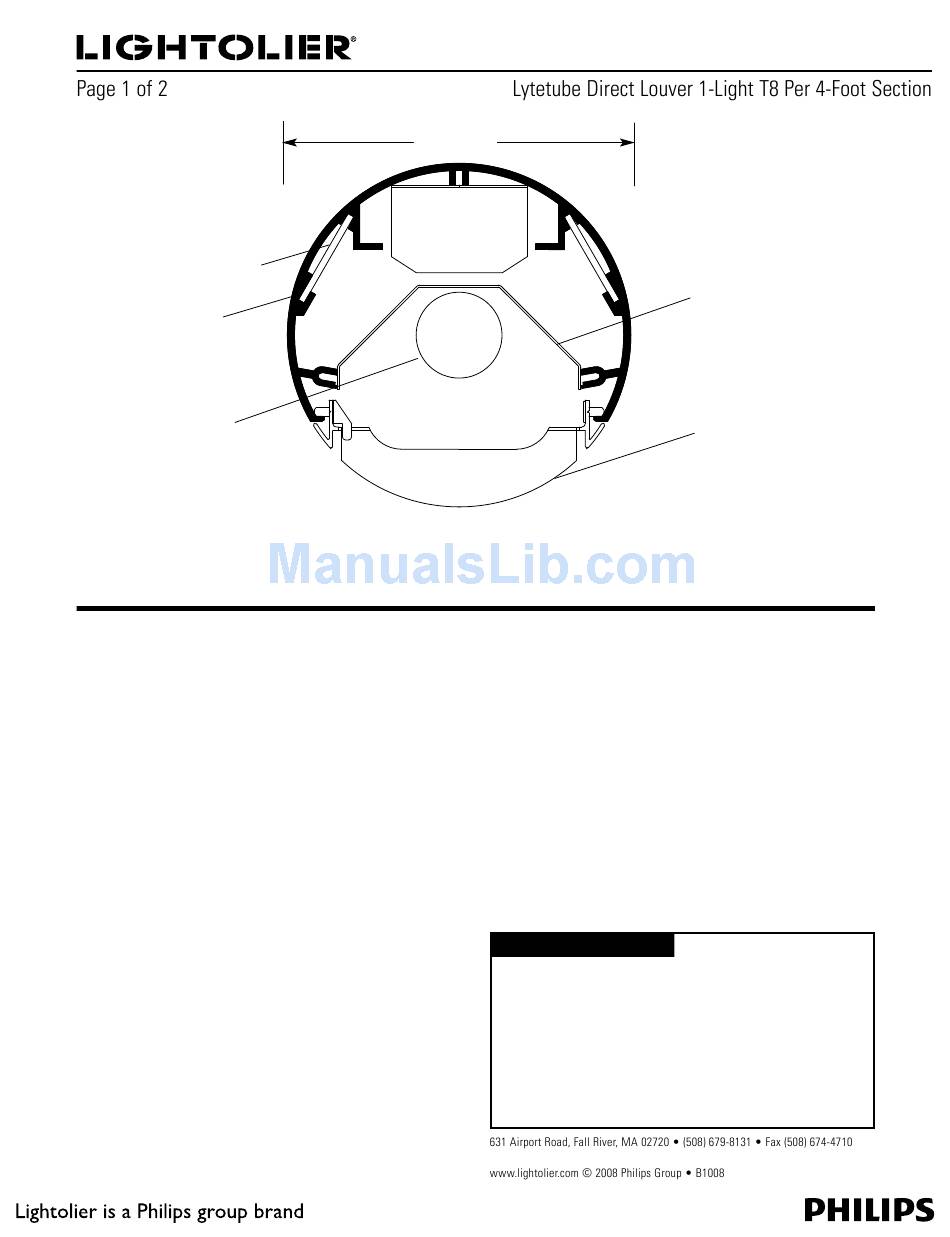

Lightolier Lighting Systems RT6-3 Specification Sheet

5
1
2
Ordering Information
Lytetube Direct Louver One Lamp:
4 Foot Joiner: RT622242
8 Foot Joiner: RT622282
Complete ordering instructions on back.
Features
1. Housing: Extruded aluminum. 1/8" (0.32cm) aluminum end cap attached with
no exposed fasteners.
2. Lamping: One T8 32 watt fluorescent lamp. Provided by others.
3. Reflector: Precision die-formed high gloss baked white enamel reflector.
4. Louver: Extruded, precision die-formed aluminum louver, provides 38° cut-off.
Attached by two pressurized retaining clips. Semi-gloss white finish only.
5. Alignment/Locking Mechanism: Heavy gauge steel bracket with integral
splines for alignment of housing modules, joins modules tightly together
without removing any luminaire component at time of installation.
Electrical
Specify 120 volt or 277 volt. 3 conductor, 18 gauge wire. Color-coded quick
connectors allow ease of connection for joiner modules. For special circuiting,
consult factory. Rapid start, HPF, class "P" thermally protected. PowerSpec HDF
dimming ballast is available. Factory installed ballast disconnect allows the ballast
to be disconnected from and reconnected to incoming power under load without
turning the entire circuit off.
Mountings
Cable Suspension (not shown)- 1-1/2" (3.81cm) or 4-1/2" (11.43cm) diameter flat
canopy finished enamel white, 3/16" (0.48cm) diameter x 4" (10.16cm) stabilizing
tube (polished chrome finish), 1/16" (0.16cm) diameter stainless steel aircraft cable
adjustable up to 36" (91.44cm), adjustable cable gripper. Available with both white
jacketed straight or coiled cord. Feed locations require a 4-1/2" (11.43cm) canopy.
Coiled cord not available in dual switching or emergency battery backup.
Stem Mounting (not shown) - 4-1/2" (11.43cm) diameter flat canopy, 1/2"
(2.08cm) diameter stem. Chrome plate or white finish. Can be cut to length on job.
Self-aligning swivel provides adjustability up to 38°. The stem assembly shall meet
or exceed the requirements set forth in the State of California Uniform Building
Code for suspended lighting fixtures installed in seismic zone four.
Wall Mounting (not shown) - consult factory for availability.
6" (15.24cm)
Ballast & Voltage (add code to end of base catalog number - Example: RT622282E82)
E81 = T8 Electronic 120v HD1 = T8 Electronic PowerSpec Dimming 120v
E82 = T8 Electronic 277v HD2 = T8 Electronic PowerSpec Dimming 277v
For all fixtures represented in this family please refer to the brochure and/or additional specification sheets.
Lighting Systems
Half Scale
Finish
Powder coated baked white enamel. Custom colors available, consult factory.

Options and Accessories

L, T, X, Inline joiner blocks, emergency battery packs, dual switching and fusing
available.
Labels
UL, cUL and I.B.E.W.
US Patent No. 4,717,993.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
We reserve the right to change details of design, materials and finish.
RT6-3
3
4
M71 = T8 Electronic Dimming 120v
M72 = T8 Electronic Dimming 277v
Type:
