Ordering Information
Type
Lamps
LSBW
2
2 = 2-Lamp T8
Complete ordering instructions below.
Features
1. Housing: Extruded aluminum. Die-cast end cap mechanically attached with
no exposed fasteners or hardware.
2. Lamping: Two T8, 32 watt fluorescent lamps per 4-foot nominal section.
Provided by others.
3. Reflector: Precision die-formed, semi-specular aluminum.
4. Shielding: Precision die-formed, pierced 20 gauges CRS Piercing is four rows
that extend the entire length of the lamps. The pattern is 5/8" (1.59cm) x 1/16"
(0.16cm) slot with a 3/16" (0.48cm) separation between rows.
Electrical
Ballast - <10% T.H.D., .98 ballast factor, pre-heat start. 18 gauge wire. Color-
coded quick connectors allow ease of connection for joiner modules. For special
circuiting, consult factory. Factory installed ballast disconnect allows the ballast
to be disconnected from and reconnected to incoming power under load without
turning the entire circuit off.
Dimming - 120/277 VAC, 1% dimming level.
Emergency Battery Pack - 32 Watt: 450 Lumens @ 90 min.
4 wire feed required.
Mountings
Dual-screw, draw-tight connector to create hairline seam between joiner modules.
Finish
Powder coated baked white or aluminum finish.
Custom colors available, consult factory.

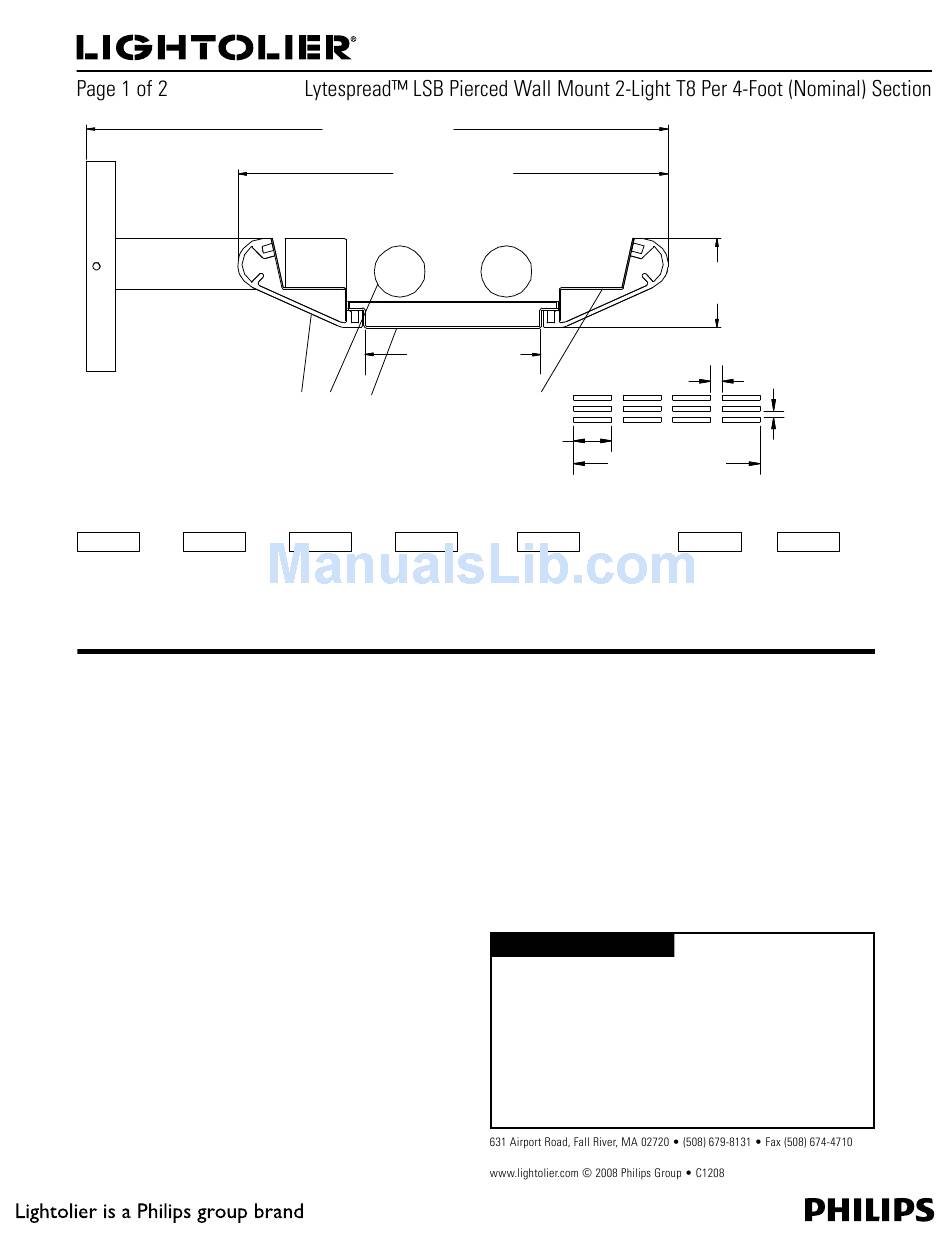

11-3/8" (28.89cm)
8-1/2" (21.59cm)
3-1/2" (8.89cm)
1
2
4
Length
Shielding
B
4 = 4-Foot
B = Pierced
8 = 8-Foot
Lighting Systems
Pierce Pattern
3/16" (0.48cm)
3
5/8" (1.59cm)
3-1/16" (7.78cm)
Ballast
32 = 32W T8
3E = 32W Emergency Pack
3D = 32W Dimming
Labels
UL, cUL and I.B.E.W.
Ordering Instructions
Individual Fixtures:
1. Order number of MODULES required.
2. Order one END SET per MODULE.
Continuous Rows:
1. Determine run length.
2. Order the appropriate number of MODULES to complete the run.
3. Order one END SET per run.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
We reserve the right to change details of design, materials and finish.
LSBW-8
1-3/4"
(4.45cm)
1/16" (0.16cm)
Voltage
Finish
1 = 120 Volt
AL = Aluminum
2 = 277 Volt
WH = White
Type:
