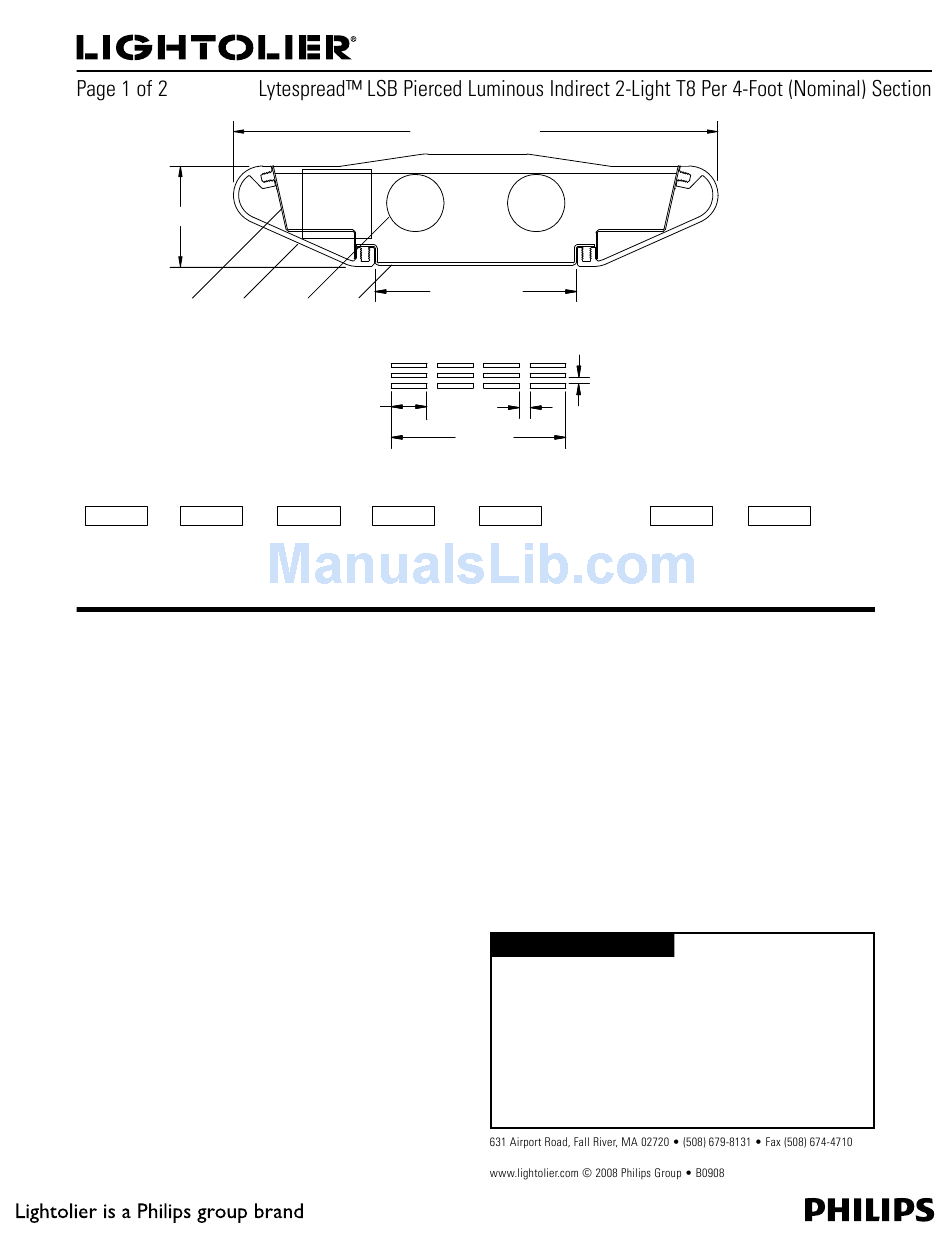

Lightolier Lighting Systems LSB-8 Specification Sheet

1-3/4" (4.45cm)
3 1
Ordering Information
Family Lamps
LSB 2
2 = 2-Lamp T8
Complete ordering instructions below.
Features
1. Housing: Extruded aluminum. Die-cast end cap mechanically attached with
no exposed fasteners or hardware.
2. Lamping: Two T8 32 watt fluorescent lamps per 4-Foot section.
Provided by others.
3. Reflector: Precision die-formed semi-specular aluminum.
4. Shielding: Precision die-formed, pierced 20 gauge CRS. Piercing is four rows
that extend the entire length of the lamps. The pattern is 5/8" (1.59cm) x 1/16"
(0.16cm) slot with a 3/16" (0.48cm) separation between rows.
Electrical
Ballast is <10% THD, .98 ballast factor, pre-heat start. 18 gauge wire. Color-
coded quick connectors allow ease of connection for joiner modules. Power feed
is 18 gauge white SJT. For special circuiting consult factory. Factory installed
ballast disconnect allows the ballast to be disconnected from and reconnected to
incoming power under load without turning the entire circuit off.
Dimming: 120/277 VAC 1% dimming level, 4 wire feed required.
Emergency Battery Pack: 28 watt: 520 lumens @ 90 minutes, 54 watt: 700
lumens @ 90 minutes, 4 wire feed required.
Mountings
Cable suspension (not shown) - 4-1/2" (11.43cm) diameter canopy finished white
enamel, 1/16" (0.16cm) diameter stainless steel aircraft cable adjustable up to 36"
(91.44cm). Dual-screw draw-tight connector to create hairline seam between joiner
modules.
Finish
Powder coated baked white or aluminum finish. Custom colors available, consult
factory.
8-1/2" (21.59cm)
3-1/2" (8.89cm)
2 4
Pierce Pattern
5/8"
(1.59cm)
(0.48cm)
Length Shielding
B
4 = 4-Foot B = Pierced
8 = 8-Foot

Lighting Systems

Fixture Shown Half Scale
3/16"
1/16"
(0.16cm)
3-1/16"
(7.78cm)
Ballast
32 = 32W T8
3E = 32W T8 Emergency Pack
3D = 32W T8 Dimming

Options and Accessories

Emergency Circuiting; special circuiting; X, T & L joiner blocks - consult factory.
Labels
UL, cUL and I.B.E.W.
Ordering Instructions
Individual Fixtures:
1. Order number of MODULES required.
2. Order one POWER FEED END SET per MODULE.
Continuous Rows:
1. Determine run length.
2. Order the appropriate number of MODULES for the complete run.
3. Order one POWER FEED END SET per run.
4. Order one CABLE ASSEMBLY per MODULE minus one per run.
5. For runs that exceed amperage limits, order the appropriate number of
CABLE/CORD ASSEMBLIES.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
We reserve the right to change details of design, materials and finish.
LSB-8
Voltage Finish
1 = 120 volt AL = Aluminum
2 = 277 volt WH = White
