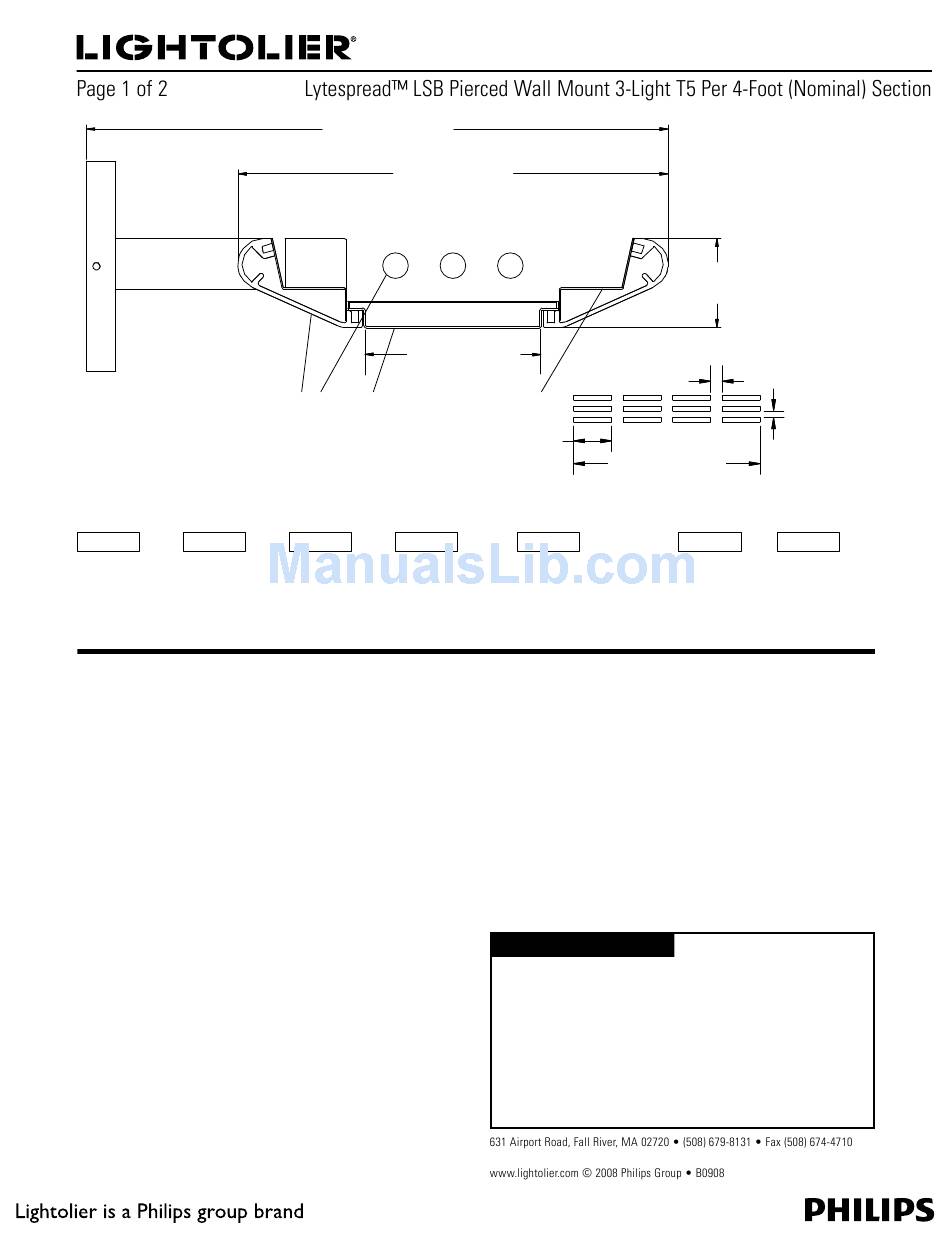

Lightolier Lighting Systems LSBW-7 Specification Sheet

Ordering Information
Type Lamps
LSBW 3
3 = 3-Lamp T5
Complete ordering instructions below.
Features
1. Housing: Extruded aluminum. Die-cast end cap mechanically attached with
no exposed fasteners or hardware.
2. Lamping: Three T5, 28 or 54 watt (as specified) fluorescent lamps per 4-foot
nominal section. Provided by others.
3. Reflector: Precision die-formed, semi-specular aluminum.
4. Shielding: Precision die-formed, pierced 20 gauges CRS Piercing is four rows
that extend the entire length of the lamps. The pattern is 5/8" (1.59cm) x 1/16"
(0.16cm) slot with a 3/16" (0.48cm) separation between rows.
Electrical
Ballast - <10% T.H.D., .98 ballast factor, pre-heat start. 18 gauge wire. Color-
coded quick connectors allow ease of connection for joiner modules. For special
circuiting, consult factory. Factory installed ballast disconnect allows the ballast
to be disconnected from and reconnected to incoming power under load without
turning the entire circuit off.
Dimming - 120/277 VAC, 1% dimming level.
Emergency Battery Pack - 28 Watt: 520 Lumens @ 90 min.
54 Watt: 700 Lumens @ 90 min.
4 wire feed required.
Mountings
Dual-screw, draw-tight connector to create hairline seam between joiner modules.
Finish
Powder coated baked white or aluminum finish.
Custom colors available, consult factory.
11-3/8" (28.89cm)
8-1/2" (21.59cm)
3-1/2" (8.89cm)
1 2 4
Length Shielding
B
4 = 4-Foot B = Pierced
8 = 8-Foot

Lighting Systems

Pierce Pattern
3/16" (0.48cm)
3
5/8" (1.59cm)
3-1/16" (7.78cm)
Ballast
28 = 28W T5
54 = 54W T5
5E = 54W T5 Emergency Pack
2E = 28W T5 Emergency Pack
5D = 54W T5 Dimming
Labels
UL, cUL and I.B.E.W.
Ordering Instructions
Individual Fixtures:
1. Order number of MODULES required.
2. Order one END SET per MODULE.
Continuous Rows:
1. Determine run length.
2. Order the appropriate number of MODULES to complete the run.
3. Order one END SET per run.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
We reserve the right to change details of design, materials and finish.
LSBW-7
1-3/4"
(4.45cm)
1/16" (0.16cm)
Voltage Finish
1 = 120 Volt AL = Aluminum
2 = 277 Volt WH = White
Type:
