Ariens SNO-THRO 932045 - ST8524E Parts Manual

Ariens SNO-THRO 932045 - ST8524E Parts Manual

Ariens snow blower user manual
Hide thumbs Also See for SNO-THRO 932045 - ST8524E:
Table of Contents

Advertisement

Quick Links

See also: Owner's/operator's Manual

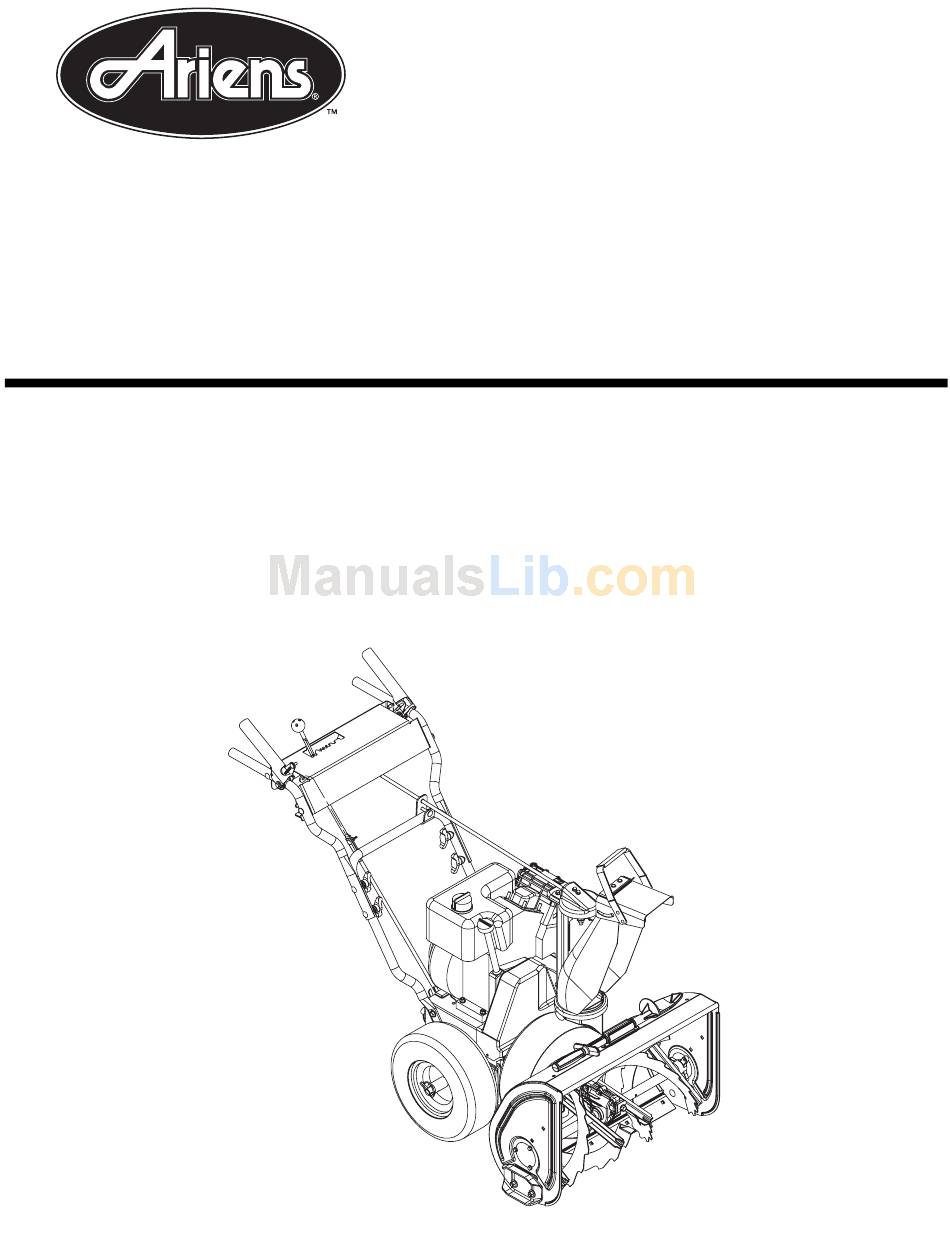

Sno-Thro
®
Parts Manual
Models
932045 - ST8524E
932046 - ST724E
932047 - ST5524E
932048 - ST5520
932311 - ST5520
932312 - ST7524
00586600A 5/06
Printed in USA

Advertisement

Table of Contents
loading

Related Manuals for Ariens SNO-THRO 932045 - ST8524E

Summary of Contents for Ariens SNO-THRO 932045 - ST8524E

  • Page 1 Sno-Thro ® Parts Manual Models 932045 - ST8524E 932046 - ST724E 932047 - ST5524E 932048 - ST5520 932311 - ST5520 932312 - ST7524 00586600A 5/06 Printed in USA...
  • Page 2 RODUCT The Ariens dealer must register the product at the time of purchase. Registering the product will help the company process warranty claims or contact you with the latest service information.

  • Page 3: Table Of Contents

    ODELS Domestic Model 932045 (8524E) 8.5H.P. 24” Sno-Thro Serial No. 000101 and up Model 932046 (724E) 7H.P. 24” Sno-Thro Serial No. 000101 and up Model 932047 (5524E) 5.5H.P. 24” Sno-Thro Serial No. 000101 and up Model 932048 (5520) 5.5H.P. 20” Sno-Thro Serial No.

  • Page 4: Ecals

    Model 932045, 046, 047, 048, 311, 312 Item Part No. Qty. Description 05305100 Decal, American Flag 08093901 Decal, Danger- Rotating Parts 08094000 Decal, Danger 08000013 Decal, Front Panel, ST7524 (312) 08000015 Decal, Front Panel, ST5520 (048, 311) 08000039 Decal, Front Panel, ST5524 (047) 08000040 Decal, Front Panel, ST724 (046) 08000101...
  • Page 5 OTES...

  • Page 6: Ngine And

    Model 932045, 046, 047, 048, 311, 312 NGINE AND (045) RIVE (047, 048) (045, 046, 311, 312) PS0333...
  • Page 7 Item Part No. Qty. Description 07100037 Tire/Wheel, LH 13 x 4.00-6 Pin 07100036 Tire/Wheel RH 13 x 4.00-6 Pin 07100038 Tire, 2PR X-Trac 13 x 4.00-6 07100012 Wheel, 4.1-6 07105000 Tube 00272400 Pulley-3L with Hub .625 x 8.00 08200037 Engine, 5.5HP Tecumseh OH195SA Recoil (311) 08200015 Engine, 5.5HP Tecumseh LH195SP 120V (047) 08200126...
  • Page 8 Model 932045, 046, 047, 048, 311, 312 Item Part No. Qty. Description 21533400 Plug, Spark (047, 148) 21533500 Plug, Spark (046, 311, 312) 21534100 Plug, Spark (045) 07531800 Cap, Fuel (046, 047, 048, 311, 312) 07500013 Cap, Fuel (045) 02483100 Cord, Extension 120 V (045, 046, 047) 06444200 Washer, Flat Steel .755 x 1.25 x .125...
  • Page 9 OTES...

  • Page 10: Friction Drive

    Model 932045, 046, 047, 048, 311, 312 Item Part No. Qty. Description 05511000 Bushing, Flange .50 x .75 x .63 x .94 05802600 Pin, Roll .16 x .88 00397900 Weldment, Speed Control Arm 53211500 Flange and Bushing (Includes Item 1) 05502100 Bushing, Flange .500 x .625 x .500 x .750 03231700...
  • Page 11 Item Part No. Qty. Description 03248300 Friction Disc 00428000 Hex Shaft 05804700 Pin, Roll .125 x .88 02201100 Pinion 00308500 Bearing, Flange 05435200 Bearing, Ball .437 x 1.375 x .437 03226900 Bearing, Flange 03201100 Friction Plate 03225900 Bearing Assembly 00428600 Shaft, Spindle - Compact Snow 06400009 Washer, Thrust .625 x 1.0 x .03...

  • Page 12: Handlebars And Controls

    Model 932045, 046, 047, 048, 311, 312 ANDLEBARS AND 55 31 ONTROLS PS0352...
  • Page 13 Item Part No. Qty. Description 07533500 Knob, Ball-Black 1.47, .375-16 03247900 Weldment, Shift Lever 05963300 Bolt, Hex .38-16 x 2.00 Grade 5 08335700 Spring, Compression .13 x .78 x 1.25 06435900 Washer, Flat Steel .44 x 1.00 x .083 06529600 Nut, Locking Center .38-16 06713500 Pin, Hair Internal .08 x .18 x 1.18...

  • Page 14: Auger And Chute

    UGER AND HUTE Model 932045, 046, 047, 048, 311, 312 PS0363...
  • Page 15 Item Part No. Qty. Description 06529700 Nut, Locking Center .25-20 53214400 Chute, Discharge, Compact Snow 06220800 Bolt, Round Head Square Short Neck .31-18 x .75 00170200 Device, Snow Cleanout 06813600 Rivet-Pop .187 x .45 Stainless Steel Dome FBF64 00170300 Mount, Snow Cleanout 53214500 Weldmemt, 24"...

  • Page 16: Discharge Chute Crank

    ISCHARGE HUTE RANK Model 932045, 046, 047, 048, 311, 312 932048 PS0373...
  • Page 17 Item Part No. Qty. Description 01019800 Cap, .38 Rod (045, 046, 047, 311, 312) 07500001 Knob, Chute Crank (045, 046, 047, 311, 312) 07412000 Screw, Hex Washer Head Self Tapping .25-20 x .50 (045, 046, 047, 311, 312) 03223000 Cover, Gear (045, 046, 047, 311, 312) 05500021 Bushing, Polyliner (045, 046, 047, 311, 312) 06714500...

  • Page 18: Gearcase And Impeller

    Model 932045, 046, 047, 048, 311, 312 Item Part No. Qty. Description 00187000 Pulley, 4L with Hub .75 x 8.50 00008000 Ariens 16 oz. Bottle of L2 Lube 05531200 Bushing, Sleeve .755 x 1.500 x .442 05600004 Seal, Oil .748 x 1.378 x .276 05804900 Pin, Groove .19 x 1.25 Type E...
  • Page 19 Ariens Company 655 West Ryan Street P.O. Box 157 Brillion, WI 54110-0157 920-756-2141 Fax 920-756-2407 www.ariens.com...
