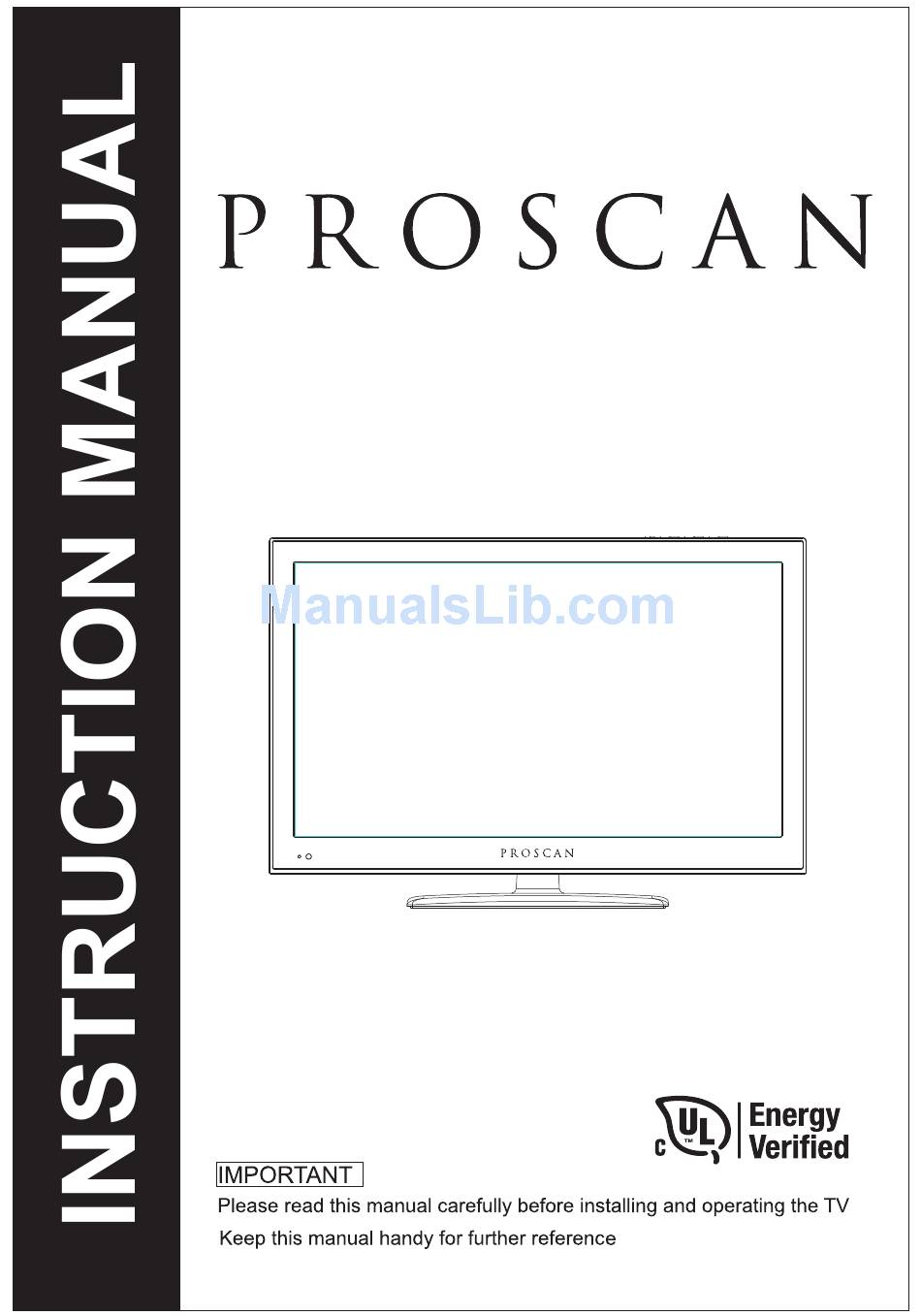

- Page 1 LED TV PLED2243A-C...
-
Page 2: Table Of Contents
Table of Contents Caution Important Safety Precautions Wall Mount In Stallation TV Bracket assembly Top/Side panel diagram Remote Controller Battery Installation Using the Remote Control Install TV Set your TV Connect Antenna and power Turn On TV 10-11 Select Input Source 13-25 Picture Menu 13-14... -
Page 3: Caution
Caution The lightening flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Important Safety Precautions
Caution: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.2 19) Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles). 20) Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer. -
Page 5: Wall Mount In Stallation
3.95” x 3.95” 3.95” 3.95”... -
Page 6: Tv Bracket Assembly
TV Bracket assembly 1．Match the position hole in the middle of the stand poles to the position holes undter the bottom to the TV unit and connect the stand base with the TV unit, the position holes locates between the 2 screws of the stand poles. 2. - Page 7 Top panel diagram (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby) LED Indicator: Press to turn on and off Indicator on(Red) Standby mode Indicator on(Green) Power on mode The functions of the buttons on the are as follows: SOURCE External signal input selection and confirm the item selected.
-
Page 8: Top/Side Panel Diagram
Side panel diagram VIDEO Service Port (Left Side) AC 100-240V~ 50/60Hz COAXIAL (Back Side) Name Function Description AV INPUT ANT 75 Ω Connect to ANT or cable source Connect to HDMI of DVD or other equipment HDMI2 IN Service Port For Upgrade Use. -
Page 9: Remote Controller
Mon o, or SAP( se co nd au di o pr og ram) . GUIDE: Universal remote code This is the code for remote control of PLED2243A-C,if you want to change to a universal remote control,you can edit this code into your universal remote control. (1)Open the battery compartment cover on the back side (2)Insert two 1.5V batteries of AAA type... -
Page 10: Install Tv
10cm 10cm 10cm side indicator... -
Page 13: Select Input Source
Select Input Source SOURCE YPBPR HDMI1 HDMI2... - Page 14 Temperature Color Temperature User User...
- Page 15 Temperature...
- Page 16 Digital Audio Output...
- Page 17 Settings User User Digital Audio Output digital...
-
Page 18: Time Menu
Samoa Auto Clock... - Page 20 YPBPR HDMI1 HDMI2...
- Page 21 US Rating Canada Rating...
- Page 22 US Rat ing in TV mode and when MPAA:This is use to restrict the movie rating(Off/G/PG/PG-13/R/NC-17/X). Canad a Rat ing...
-
Page 23: Channel Menu
Number channel list... - Page 24 Channel list Show channel label. select Number...
-
Page 25: Pc Menu
SOURCE... - Page 26 US Rating,Canada Rating...
-
Page 27: Help
Help... -
Page 28: Specifications
Specifications Resolution 640x480 800X600 1024x768 1360x768 1920x1080 60HZ 60HZ 60HZ 60HZ 60HZ Vertical frequency hz HDMI 576 i/P 720 P 1080 i/P Format 480 i/P 50HZ/60HZ Vertical frequency hz 50HZ 50HZ/60HZ 60HZ Parameter specification Screen Size 22” NTSC / ATSC PAL, NTSC 600 CH IN:TV, AV, YPBPR, PC AUDIO,VGA, HDMI1,HDMI2.
