LS-5600

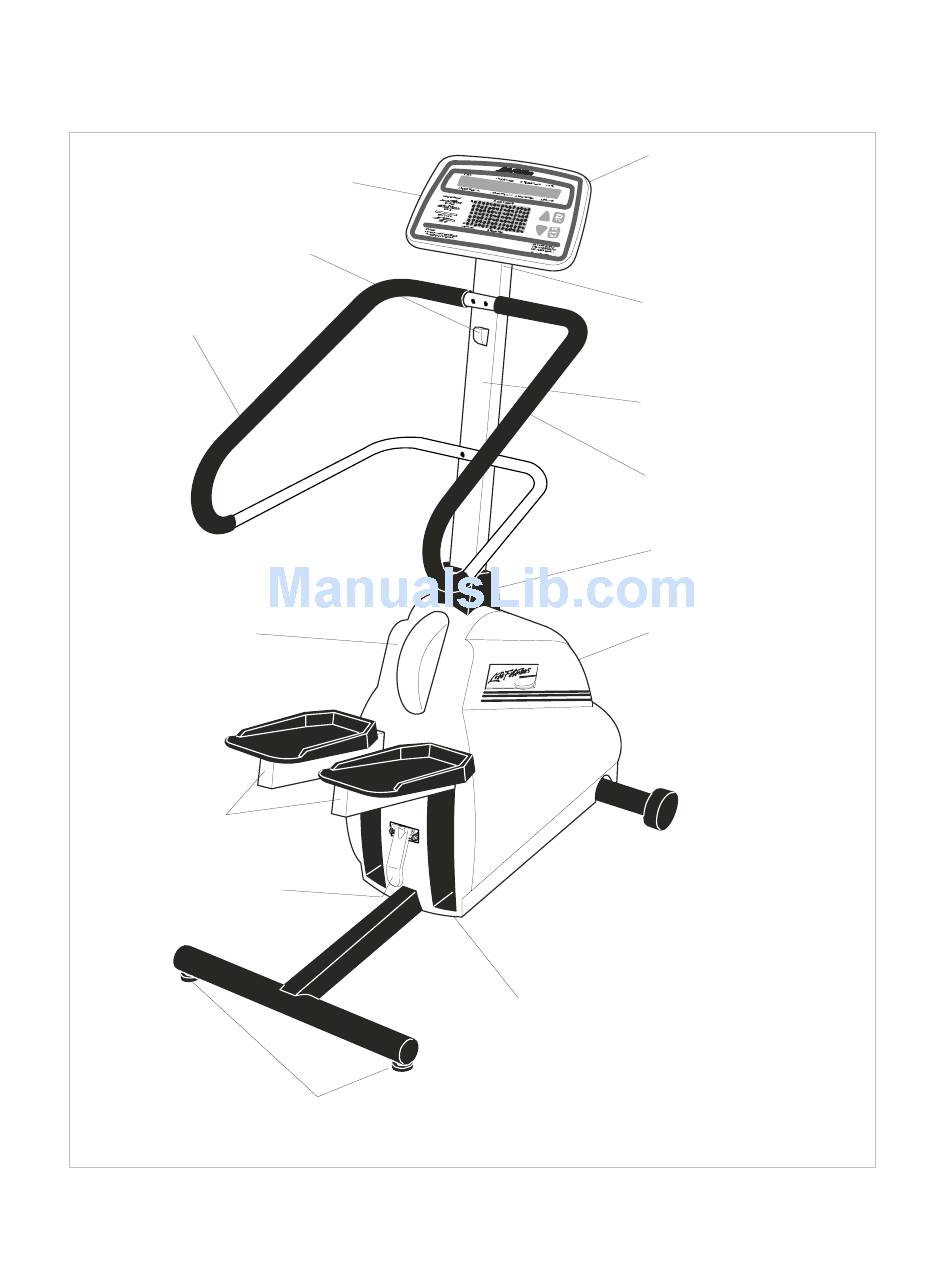

STAIRCLIMBERS
Console Assembly
SK35-00007-0001 Eng R&R only
SK35-00007-0003 Ger R&R only
Heart Rate Cable Assembly
AK35-00012-0001
Left Handle
0K35-01060-0002
Left Shroud
Assembly (NLA)
SK35-00014-0002
End Cap (2)
0K35-01146-0000
Crossover Handle
0K35-01104-0002
Leg Leveler (2)
0017-00009-0796
Center Shroud
0K35-01124-0001
1 of 3
GK35-00001-0100
SN: 239000-245081
Overlay Bezel (NLA)
AK35-00038-0001
Console Bracket Assembly
AK35-00052-0000
Mono Column Assembly
AK35-00030-0000
Right Handle (NLA)
0K35-01060-0001
Boot
0K35-01111-0000
Right Shroud
Assembly (NLA)
SK35-00014-0001
Shroud Screws
017-00101-1017
rev. 05/25/05
