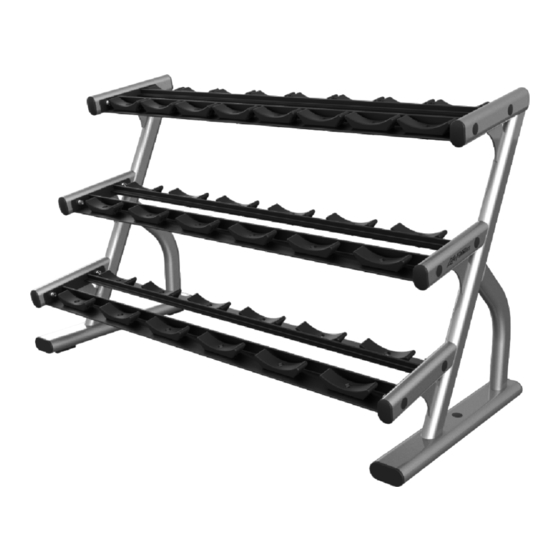

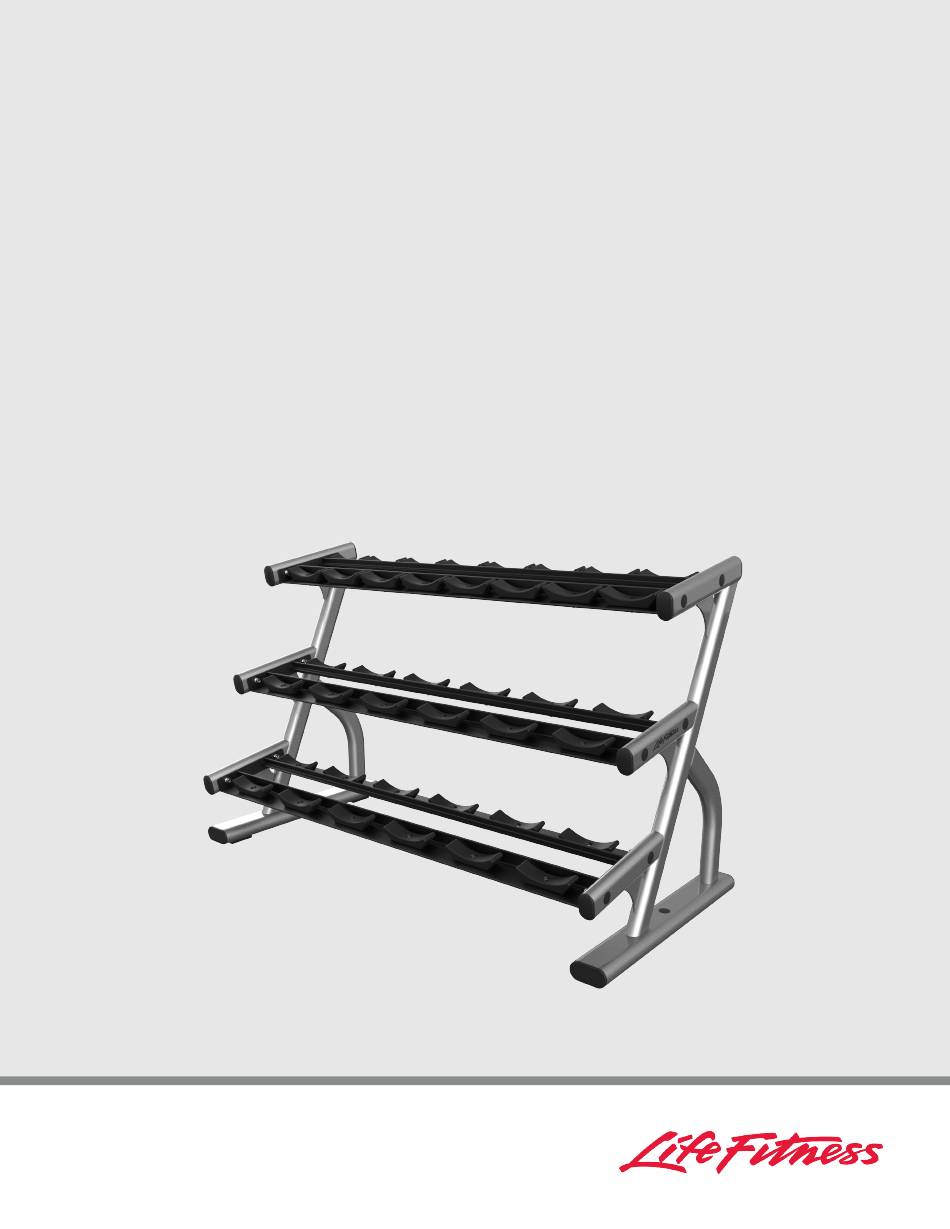

- Page 1 Life Fitness 3-Tier Racks LBR-AR, LBR-DF, LBR-DL, LBR-DS Assembly Instructions 1025357-0001 REV AA...
- Page 3 Latin America and Caribbean* Germany, Austria, and Switzerland Hong Kong Life Fitness, LLC Life Fitness Europe GMBH Life Fitness Asia Pacific LTD Columbia Centre III Neuhofweg 9 26/F, Global Trade Square 9525 Bryn Mawr Avenue 85716 Unterschleißheim 21 Wong Chuk Hang Road Rosemont, IL 60018 U.S.A.
- Page 4 User and Service Documents Link https://lifefitness9512.zendesk.com/hc/en-us https://www.lftechsupport.com/web/document-library/documents Additional information is available online using the links above. أ علاه إل ر إبط باستخدإم إ لإ ن تر نت على إضافية معلومات تتوفر 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link.
-
Page 5: Table Of Contents
Copyright 2024, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Disclaimer: Images and specifications are current as of the date of publication and are subject to change. -
Page 6: Safety Information
• DO NOT use or permit use of any equipment that is damaged and/or has worn or broken parts. For all Life Fitness Family of Brands equipment, use only replacement parts supplied by Life Fitness Family of Brands. -
Page 7: Product Labels
• Before use, examine all accessories approved for use with the Life Fitness Family of Brands equipment for damage or wear. Plate Loaded, Free Weight, and Body Weight Systems • Never exceed the load rating for any plate loaded station, body weight station, bench or other free weight device;... -
Page 8: Label Locations
Label Locations Accessory Rack (LBR-AR) Item Description Qty. Serial Number General Warning Page 6 of 23... - Page 9 Hex Dumbbell Rack (LBR-DF) Item Description Qty. Serial Number General Warning Page 7 of 23...
- Page 10 Dumbbell Rack (LBR-DL) Item Description Qty. Serial Number General Warning Page 8 of 23...
- Page 11 Dumbbell Rack (LBR-DS) Item Description Qty. Serial Number General Warning Page 9 of 23...
-
Page 12: Assembly
2. Assembly Component and Hardware List Components Item Description Qty. Left Frame Right Frame Tray Hardware Item Description Qty. Hardware Pack 3/8" Flat Washer M10 Hex Nylock Nut Hole Plug M10 x 25mm Bolt Tools Required • 16 mm socket wrench •... -
Page 13: Assembly Procedure
Assembly Procedure Assemble Frame The following procedure applies to the LBR-AR, LBR-DF, and LBR-DL. 1. Loosely install bolts, washers, and hex nuts securing the trays onto the left frame using an 8mm Allen wrench and a 17mm socket wrench. Item Description Qty. -
Page 14: Tray
2. Loosely install bolts, washers, and hex nuts securing the trays onto the left frame using an 8mm Allen wrench and a 17mm socket wrench. Item Description Qty. Left Frame Tray M10 x 25mm Bolt 3/8" Flat Washer M10 Hex Nylock Nut 3. -
Page 15: Hole Plug
Install Hole Plugs The following procedure applies to the LBR-AR, LBR-DF, LBR-DL, and LBR-DS. Install hole plugs to frames using a rubber mallet. Item Description Qty. Frame Hole Plug Page 13 of 23... -
Page 16: Product Information
3. Product Information Accessory Rack (LBR-AR) Machine Weight: 168 lbs. 76 kg. Size (L x W x H): in. = 54 x 29 x 38 cm = 137 x 73 x 96 Live Area (L x W): in. = 54 x 53... -
Page 17: Hex Dumbbell Rack (Lbr-Df)
Hex Dumbbell Rack (LBR-DF) Machine Weight: 167 lbs. 76 kg. Size (L x W x H): in. = 54 x 29 x 38 cm = 137 x 73 x 96 Live Area (L x W): in. = 54 x 53 cm = 137 x 135 Storage Capacity: 270 lbs./tier... -
Page 18: Dumbbell Rack (Lbr-Dl)
Dumbbell Rack (LBR-DL) Machine Weight: 286 lbs. 130 kg. Size (L x W x H): in. = 97 x 29 x 38 cm = 246 x 73 x 96 Live Area (L x W): in. = 97 x 53 cm = 246 x 135 Storage Capacity: 650 lbs./tier 295 kg./tier... -
Page 19: Dumbbell Rack (Lbr-Ds)
Dumbbell Rack (LBR-DS) Machine Weight: 200 lbs. 91 kg. Size (L x W x H): in. = 61 x 29 x 38 cm = 155 x 73 x 96 Live Area (L x W): in. = 61 x 53 cm = 155 x 135 Storage Capacity: 270 lbs./tier 120 kg./tier... -
Page 20: Maintenance Procedures
4. Maintenance Procedures Maintenance Schedule ACTION DAILY WEEKLY MONTHLY AS NEEDED Frames INSPECT Paint Hardware Frame • Frames with a standard, non-abrasive, wax finish. Inspect • Hardware. Check for loosening. Tighten as required. • Frames. Inspect for wear and damage. •... -
Page 21: Bolt To Floor Guide Introduction
5. Bolt to Floor Guide Introduction Life Fitness Family of Brands designs its products to be stable when used as designed. Because strength training is dynamic, we cannot predict how users will ultimately use the products in all circumstances. Therefore, Life Fitness Family of Brands recommends that strength training equipment be secured to a solid, level surface to stabilize and eliminate rocking or tipping over. -
Page 22: Anchor Type - Static
3000psi (20 N/mm2) beyond anchor length Pullout Force Life Fitness specifies Hilti ™ static and dynamic anchors. According to the anchor manufacturer, the recommended design pullout force (in tension) for the specified anchors, when properly installed in cracked concrete, is provided in the side table. -
Page 23: Static Anchor Procedure
• Vacuum (for debris) Static Anchor • Floor scanner / rebar detector (optional) • 1” L-shape SDS rotary hammer • 1/4" x 12" (6mm x 305mm) carbide drill bit (for 1/4” (6mm) anchors) • 3/8" x 12" (8mm x 305mm) carbide drill bit (for 3/8” (8mm) anchors) •... - Page 24 4. Insert fastener and tighten to 18 Foot-Pounds (24Nm) for 1/4” (6mm) anchor or 40 Foot-Pounds (54Nm) for 3/8” (8mm) anchor. NOTE: If the legs/frame do not contact the mounting surface DO NOT pull down with the fastener or anchor. Loosen frame hardware and re-tighten to allow machine to align.
-
Page 25: Foot Dimensions
Foot Dimensions Use below image to determine foot specifications. Page 23 of 23...
