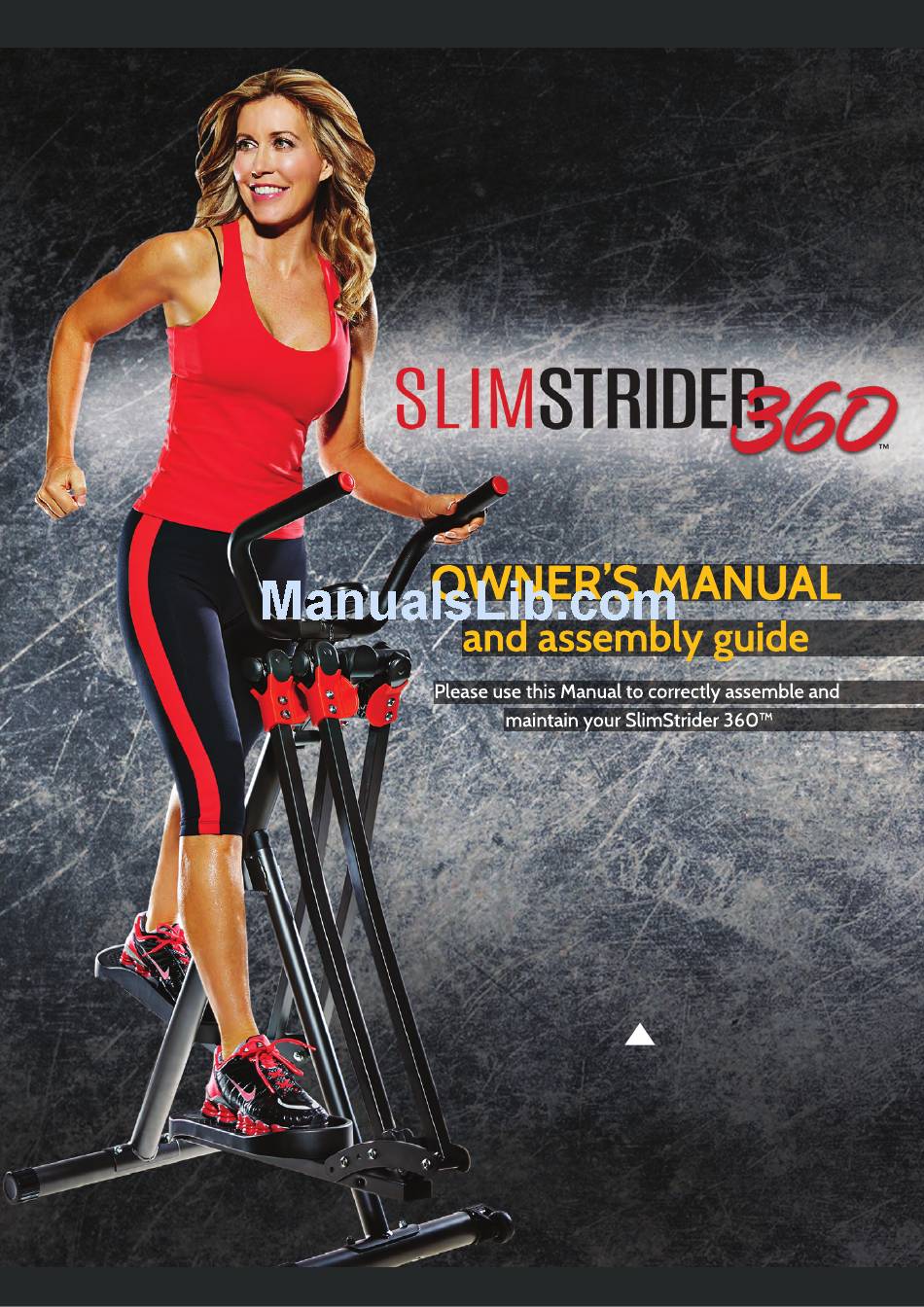

When calling for parts or service, please specify the
following number: MODEL #55-9162
CAUTION: Weight on this product should not
exceed 300 lbs.
WARNING
!
Exercise can present a health risk. Consult a physician before
beginning any exercise program with this equipment. If you
feel faint or dizzy, immediately discontinue use of this
equipment. Serious bodily injury can occur if this equipment
is not assembled and used correctly. Serious bodily injury
can also occur if all instructions are not followed. Keep others
and pets away from equipment when in use. Always make
sure all bolts and nuts are securely tightened prior to each
use. Follow all safety instructions in this manual.
Advertisement
Table of Contents
Related Manuals for Stamina SlimStrider 360 55-9162
Summary of Contents for Stamina SlimStrider 360 55-9162
- Page 1 When calling for parts or service, please specify the following number: MODEL #55-9162 CAUTION: Weight on this product should not exceed 300 lbs. WARNING Exercise can present a health risk. Consult a physician before beginning any exercise program with this equipment. If you feel faint or dizzy, immediately discontinue use of this equipment.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Conditioning Guidelines ......16 Safety Instructions ........2 Before You Begin ........4 Warm-Up and Cool-Down ......17 Equipment Warning, Caution & Notice Labels ... 5 Product Parts Drawing ......18 Hardware Identification Chart ....6 Parts List ............ 19 Assembly Instructions ........ -
Page 3: Customer Service
Monday - Thursday, 7:30 A.M. - 5:00 P.M., Central Time. Friday, 8:00 A.M. - 3:00 P.M., Central Time. ONLINE TELEPHONE MAIL CUSTOMER SERVICE CUSTOMER SERVICE CUSTOMER SERVICE STAMINA PRODUCTS, INC. customerservice@staminaproducts.com Tel: 1 (800) 375-7520 Fax: (417) 889-8064 ATTN: Customer Service P.O. Box 1071 www.staminaproducts.com Springfield, MO. 65801-1071... -
Page 4: Before You Begin
BEFORE YOU BEGIN Thank you for choosing the SlimStrider 360 Although Stamina constructs its products with the finest materials and uses the highest standards We take great pride in producing this quality of manufacturing and quality control, there can product and hope it will provide many hours of... -
Page 5: Equipment Warning, Caution & Notice Labels
EQUIPMENT WARNING, CAUTION & NOTICE LABELS This chart is provided to help identify the warning, caution, and notice labels on the SlimStrider . Please take a moment to familiarize yourself with all of the warning, caution, and notice labels. Label is larger than actual size WARNING LABEL(56) -
Page 6: Hardware Identification Chart
HARDWARE IDENTIFICATION CHART This chart is provided to help identify the hardware used in the assembly process. Place the washers or the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to check the length of the bolts and screws. -
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all packing materials from your area and place them back into the box. Do not dispose of the packing materials until assembly is completed. - Page 8 ASSEMBLY INSTRUCTIONS STEP 3 Attach the FRONT STABILIZER(17) to the FRONT SUPPORT(3) with two CARRIAGE BOLTS(M8x1.25x60mm)(36) and two NYLOCK NUTS(M8x1.25)(43). Be sure the rounded head of the CARRIAGE BOLTS(M8x1.25x60mm)(36) is on the underside of the FRONT STABILIZER(17), if not, damage could occur to the floor or product.
- Page 9 ASSEMBLY INSTRUCTIONS Protection Caps Swing Arm Assembly Protection Cap NOTE: Refer to illustration A. The Protection Caps are used only for protection during shipment. Remove and discard the Protection Caps which are covered in the ends of the Swing Arm Assembly. STEP 4: There is an “R”...
- Page 10 ASSEMBLY INSTRUCTIONS STEP 7 There is an “R” decal on the RIGHT PEDAL ARM ASSEMBLY(8, 14), and an “L” decal on the LEFT PEDAL ARM ASSEMBLY(8, 15). Attach the LEFT PEDAL ARM ASSEMBLY(8, 15) to the JOINT PLATES(12) attached to the LEFT SWING ARMS(4, 5) with BUTTON HEAD BOLT(M8x1.25x70mm)(33), LOCK WASHER(M8) (49), and NYLOCK NUT(M8x1.25)(43).
- Page 11 ASSEMBLY INSTRUCTIONS STEP 10 Insert the LEFT HANDLEBAR(10) into the RIGHT HANDLEBAR(9) and place them on the bracket on the UPRIGHT(1). STEP 11 Secure the RIGHT and LEFT HANDLEBARS(9, 10) and the PERSONAL TRAINING COMPUTER BRACKET(13) to the UPRIGHT(1) with two BUTTON HEAD BOLTS(M8x1.25x45mm) (34) and two NYLOCK NUTS(M8x1.25)(43).
- Page 12 WORKS THESE U S A G E G U I D E MUSCLE GROUPS SLIMSTRIDER 360™ Abdominals Quadriceps Getting the most out of your SlimStrider 360™ workout Triceps The SlimStrider 360™ offers a challenging lower-body workout that also improves your cardiovascular fitness. You will work and tone every part of your legs--thighs, Gluteals hips, hamstrings and calves—while you exercise your heart and lungs.
-
Page 13: Operational Instructions
OPERATIONAL INSTRUCTIONS USING THE PERSONAL TRAINING COMPUTER POWER ON : Pedal movement or press any button. POWER OFF : Automatic shut off after four minutes of inactivity. FUNCTION BUTTONS: MODE : Press to select display functions, include SCAN, SCAN TIME COUNT CAL TOTAL COUNT TIME, COUNT, CALORIES, and TOTAL COUNT. -
Page 14: Maintenance
2. Verify that all nuts and bolts are present and properly tightened. Replace missing nuts and bolts. Tighten loose nuts and bolts. 3. Verify that the WARNING LABEL(56) is in place and easy to read. Call Stamina Products immediately at 1-800-375-7520 for a replacement WARNING LABEL(56) if it is missing or damaged. -
Page 15: Storage
STORAGE 1. To store the SlimStrider 360 , simply keep it in a clean dry place. 2. To avoid damage to the PERSONAL TRAINING COMPUTER(39), remove the battery before storing the SlimStrider 360 for one year or more. 3. Grasp the HANDLEBARS(9, 10) and the REAR STABILIZER(2) to move the SlimStrider 360 Do not use the PEDAL ARMS(8) and SWING ARMS(4, 5, 6, and 7) to move the SlimStrider 360 These moving parts will move and may pinch your hand or fingers. -
Page 16: Conditioning Guidelines
CONDITIONING GUIDELINES How you begin your exercise program depends on your physical condition. If you have been inactive for several years or are severely overweight, start slowly and increase your workout time gradually. Increase your workout intensity gradually by monitoring your heart rate while you exercise. Remember to follow these essentials: Have your doctor review your training and diet programs. -
Page 17: Warm-Up And Cool-Down
WARM-UP and COOL-DOWN Warm-Up The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before strength training or aerobic exercising. Perform activities that raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging, jumping jacks, jump rope, and running in place. -
Page 18: Product Parts Drawing
PRODUCT PARTS DRAWING FRONT BACK... -
Page 19: Parts List
PARTS LIST PART# PART NAME Upright Rear Stabilizer Front Support Left Front Swing Arm Left Rear Swing Arm Right Front Swing Arm Right Rear Swing Arm Pedal Arm Right Handlebar Left Handlebar Support Bracket Joint Plate Meter Bracket Right Pedal Cap Left Pedal Cap Pivoting Joint Front Stabilizer... - Page 20 PARTS LIST PART# PART NAME C Ring (8mm) Lock Washer (M8) Spacer Support Plug Rear Endcap Front Endcap /w Wheel Screw, Round Head (M4 x 15mm) Screw, Round Head (M3 x 10mm) Warning Label Allen Wrench (5mm) Wrench Manual...
-
Page 21: Warranty
To implement this limited warranty, send a written notice stating your name, date, and place of purchase and a brief description of the defect along with your receipt to Stamina Products, Inc. P.O. Box 1071, Springfield Missouri, USA, 65801-1071, or email us at customerservice@staminaproducts.com, or call us at 1-800-375-7520. -
Page 22: Notes
NOTES... -
Page 23: Fax/Mail Ordering Form
ATTN: Customer Service P.O. Box 1071 Springfield, MO. 65801-1071 www.staminaproducts.com Would you like to recieve email information or special offers from Stamina Products? Register at contact.staminaproducts.com TO REGISTER YOUR PRODUCT TO REGISTER YOUR PRODUCT To enact your warranty, please register your product by going to register.staminaproducts.com. Please have your product model number (printed on the cover of this owner’s manual) and the serial number (printed on the black and white sticker on your... - Page 24 This Product is Distributed Exclusively by 2040 N. Alliance, Spring eld, MO 65803 Customer Service 1 (800)375-7520 www.staminaproducts.com STAMINA PRODUCTS MADE IN TAIWAN © 2014 Stamina Products, Inc. 2014, 07...
