Fisher & Paykel HC36DXB1 Instruction Manual

W A R N I N G S
This appliance is not intended for use by young children or infirm persons without supervision.
Young children should be supervised to ensure that they do not play with the appliance.
Upon installation the appliance must be positioned so that the plug is accessible.
There should be adequate ventilation of the room when the rangehood is used at the same time as
appliances burning gas or other fuels.
You must read the details concerning the method and frequency of cleaning.
There is a fire risk if cleaning is not carried out in accordance with the instructions.
Exhaust air must not be discharged into an existing flue used for exhausting fumes from appliances
burning gas or other fuels.
The recommended minimum distance between the hob surface and the lowest part of the rangehood
is 29.5" (750mm).
Attention should be given to ensure that any applicable regulations concerning the discharge of
exhaust air is fulfilled.
If the supply cord of this equipment is damaged, it must only be replaced by the manufacturer or
its service agent, or a similarly qualified person in order to avoid a hazard.
WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
O P E R A T I O N I N S T R U C T I O N S
CONTROL PANEL
I
I I I
Fan On/Off Mid Speed High Speed
Delay switch - Fan will remain on at low, mid or high speed for 5 minutes before switching off
automatically.
CLEANING INSTRUCTIONS
Care and attention should always be taken when cooking with oils, alcohol, etc, which give off
flammable vapours. Pre-used oil is especially dangerous in this respect.
uncovered electrical grill. Particular care must be taken with grease filters which must be
periodically cleaned, at least every two months. Remove the grease filters and wash them
either by hand or in the dishwasher using mild detergent.
detergent to clean stainless steel components.
cleaning should be carried out frequently. CAUTION: Never use abrasive or oil based liquid cleaners.
Fisher & Paykel Appliances, Inc.
27 Hubble, Irvine, CA 92618
Toll Free 1-888-9-FNP-USA (1-888-9-367-872)
Electrical Rating:
120V 60Hz 285W 3,5A
I I I
Delay Switch Light On/Off
Do not use an
Use lukewarm water and mild
In high humidity and coastal environments,
MANUFACTURED FOR
BY:
ROBINHOOD LIMITED
6 ZELANIAN DRIVE, EAST TAMAKI
AUCKLAND, NEW ZEALAND
R E A D A N D
Designer Canopy
88507 HC36DXB1
P R O D U C T
P R E - I N S T A L L A T I O N I N S T R U C T I O N S
Thank you for purchasing a quality stainless steel canopy rangehood.
standard of quality control and each rangehood is tested and approved before it leaves the factory.
Installation work and electrical wiring must be done by qualified person(s) in accordance with all
applicable codes and standards, including fire-rated construction. When cutting or drilling into wall or
ceiling, do not damage electrical wiring and other hidden utilities.
Use this unit only in the manner intended by the manufacturer. If you have any questions, contact
the manufacturer.
The canopy is heavy: overall weight 50.6 lbs (23kg). Please ensure adequate care when installing the
400030_A
canopy to prevent personal injury.
S A V E T H E S E I N S T R U C T I O N S

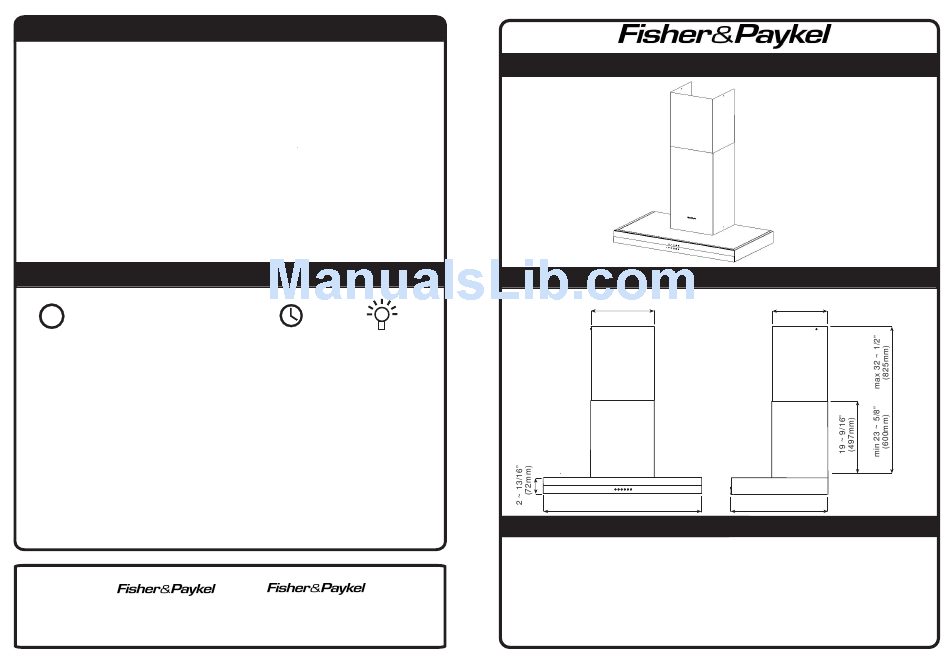

D I M E N S I O N S
12 ~ 1/2"
(317mm)
20" (507mm)
35 1/3" (898mm)
The canopy must be installed onto a solid wall or solid studs.
READ ENTIRE INSTRUCTIONS
BEFORE INSTALLATION.
10 ~ 7/8"
(276mm)
We have a high
