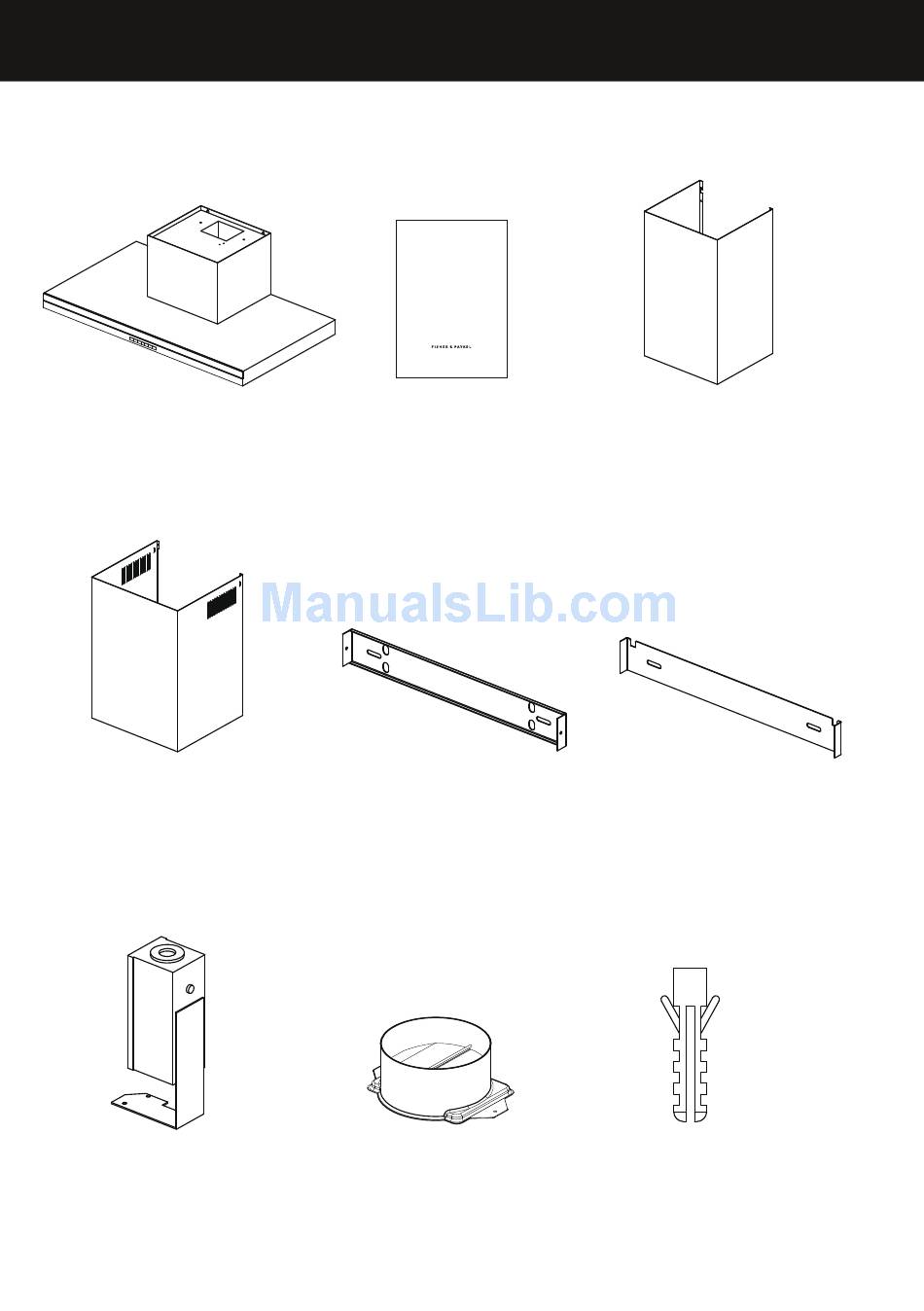

Contents of packaging
Ventilation hood
(1)
Upper chimney
(1)
Power connection box
(1)
6
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
USER GUIDE
INSTRUCTIONS D'INSTALLATION
GUIDE D'UTILISATION
Chimney Box Ventilation Hood
Hotte de Ventilation Murale Décorative
HC24DTXB2, HC30DTXB2, and HC36DTXB2 models
Modèles HC24DTXB2, HC30DTXB2 et HC36DTXB2
US CA
Installation instructions
User guide manual
(1)
Upper chimney bracket
(1)
6" (152 mm) diameter
Ducting adapter with
back draft damper
(1)
Chimney
(1)
Chimney bracket
(1)
1 3/ 1 6" (30 mm)
Expansion plug
(10)
Advertisement
Related Manuals for Fisher & Paykel HC24DTXB2
Summary of Contents for Fisher & Paykel HC24DTXB2
- Page 1 Contents of packaging INSTALLATION INSTRUCTIONS USER GUIDE INSTRUCTIONS D’INSTALLATION GUIDE D’UTILISATION Chimney Box Ventilation Hood Hotte de Ventilation Murale Décorative HC24DTXB2, HC30DTXB2, and HC36DTXB2 models Modèles HC24DTXB2, HC30DTXB2 et HC36DTXB2 US CA Ventilation hood Installation instructions Chimney User guide manual...
- Page 2 INSTALLATION INSTRUCTIONS 1 3/ 1 6” (30 mm) 3/8” (10 mm) 3/8” (10 mm) Self tapping screw Self tapping screw Screw (10) 1 3/4” (44 mm) Drywall expansion plug...
- Page 3 INSTALLATION INSTRUCTIONS Product dimensions UL power connection box Ø Please read the entire instructions before installing the ventilation hood.
-
Page 4: Product Dimensions
INSTALLATION INSTRUCTIONS HC24DTXB2 HC30DTXB2 HC36DTXB2 PRODUCT DIMENSIONS inches (mm) inches (mm) inches (mm) Min overall height of product 23 3/4” (603) 23 3/4” (603) 23 3/4” (603) Max overall height of product 41 1/ 1 6” (1043) 41 1/16” (1043) 41 1/ 1 6” (1043) Overall width of product 23 9/ 1 6”... -
Page 5: Installation Dimensions
INSTALLATION INSTRUCTIONS Height of ventilation hood INSTALLATION DIMENSIONS inches (mm) Installation height Ducted min. 24 11/ 1 6” (627) – max. 43 1/16” (1034) Recirculation min. 26 7/8” (682) – max. 43 1/16” (1034) Height top of cooking min. 26” (660) – max. recommended 36” (915) surface to base of product This ventilation hood must be installed no lower than the minimum height indicated in the table above. - Page 6 INSTALLATION INSTRUCTIONS WARNING! To reduce the risk of fire, use only metal ductwork. Do not use flexible plastic ducting CAUTION! To reduce risk of fire and to properly exhaust air, be sure to duct air outside – do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
- Page 7 INSTALLATION INSTRUCTIONS WARNING! This product is heavy and requires two persons for installation. ● ● Installation work and electrical wiring must be done by qualified person(s) ● ● in accordance with all applicable codes and standards. IMPORTANT! Wear gloves to protect against sharp edges. The manufacturer is not liable for any damage caused by not following these instructions.
- Page 8 INSTALLATION INSTRUCTIONS Upper chimney bracket attachment points Chimney bracket attachment points Upper ventilation hood attachment point Lower ventilation hood attachment point Fig.2 PRODUCT DIMENSIONS inches (mm) Lower ventilation hood attachment point width 20” (508) Lower ventilation hood attachment point height 1 11/ 1 6”...
- Page 9 INSTALLATION INSTRUCTIONS Fig.3 Attach ducting adapter and power connection box to the ventilation hood Place the ducting adapter onto the ventilation hood and ● ● screw it in place using 3/8” (10 mm) screws. Place the power connection box onto the ventilation hood ●...
- Page 10 INSTALLATION INSTRUCTIONS Wall mounting Remove the filters – pull the relative catch and tilt the filter downwards until ● ● it disengages from the supports. Hang the ventilation hood off the upper ventilation hood mounting screws ● ● with 1/ 1 6” (2 mm) gap. Hang off the keyhole attachment points on the back of the ventilation hood then tighten the screws.
- Page 11 INSTALLATION INSTRUCTIONS WARNING! Electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards and the unit must be grounded. Electrical connection Run three wires, two for the power supply and one for the ground wire, from the ●...
- Page 12 INSTALLATION INSTRUCTIONS Attach the ducting Attach ducting to the ducting adapter using aluminum duct tape and vent outside. ● ● Attach chimney Bend the tabs on the chimney (A). ● ● Place chimney around the ventilation hood chassis and hang off the ●...
