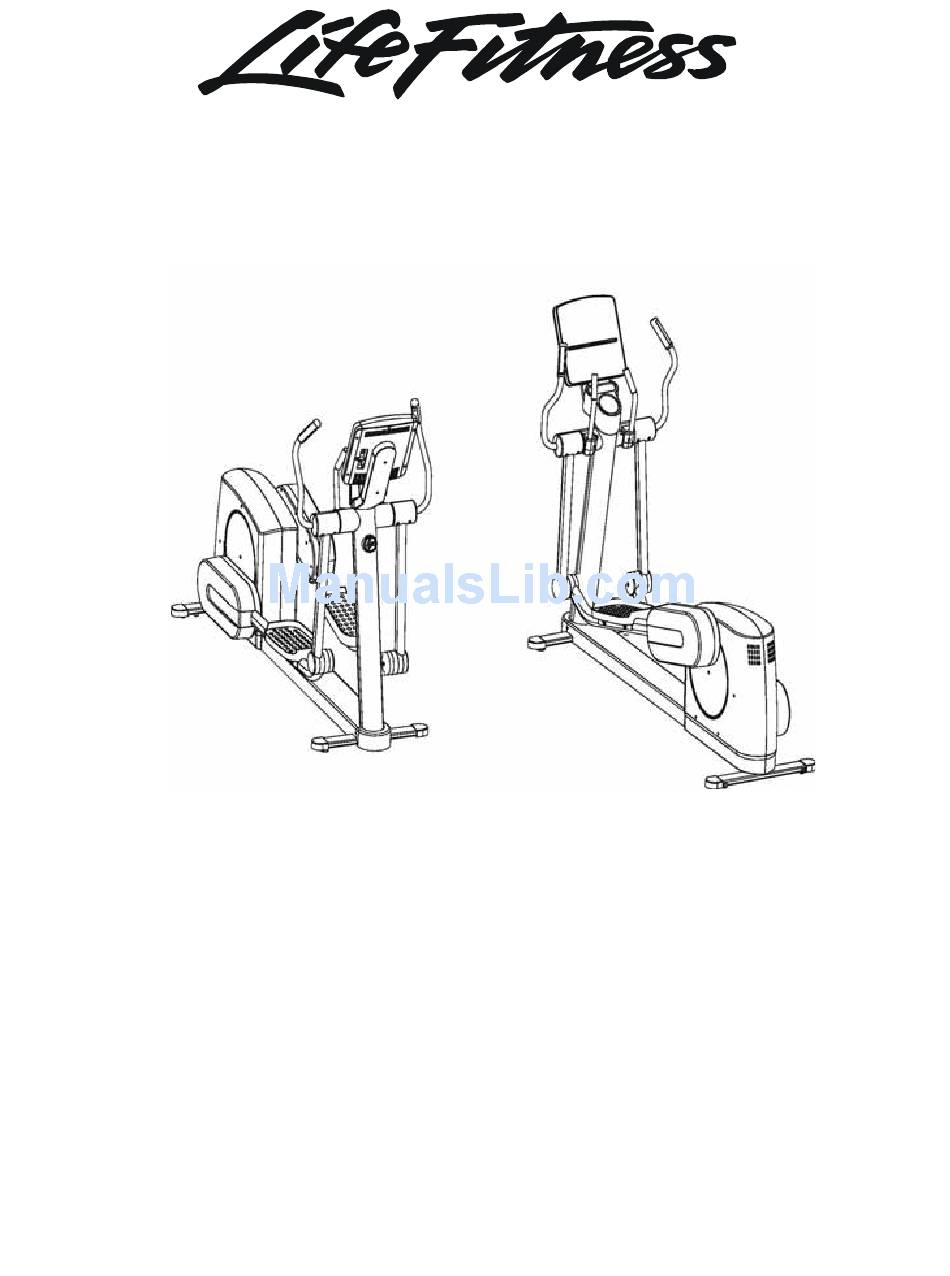

- Page 1 Arctic Silver Quiet Drive Cross-trainer 93X-0XXX-03 Customer Support Services PARTS MANUAL rev 30 Jul 2008...
-
Page 2: Table Of Contents
Arctic Silver Quiet Drive Cross-trainer 93X-0XXX-03 Contents S/N AXA100000 and up Miscellaneous ... 3 Console Support and Deadshaft Covers ... 4 Handlebars and Bullhorns ... 5 Console and Related Components ... 6 Upper Frame Hardware ... 7 Rocker Arms and Pedal Levers ... 8 Crank Cover and Lower Caps ... -
Page 3: Miscellaneous
Arctic Silver Quiet Drive Cross-trainer Miscellaneous OPERATION MANUAL SERVICE MANUAL TOUCH UP PAINT: SPRAY CAN 0.5 OZ BOTTLE W/APPLICATOR 0.33 OZ PEN HARDWARE BAG PLUG IN OPTION 120/60 PLUG IN OPTION 240/50 UK PLUG IN OPTION 240v AUS PLUG IN OPTION 230/50 CONT. C-SAFE KIT Model 93X has telemetry only. -
Page 4: Console Support And Deadshaft Covers
Arctic Silver Quiet Drive Cross-trainer 93X-0XXX-03 Console Support and Deadshaft Covers S/N AXA100000 and up... -
Page 5: Handlebars And Bullhorns
Arctic Silver Quiet Drive Cross-trainer 93X-0XXX-03 Handlebars and Bullhorns S/N AXA100000 and up... -
Page 6: Console And Related Components
Arctic Silver Quiet Drive Cross-trainer 93X-0XXX-03 Console and Related Components S/N AXA100000 and up... -
Page 7: Upper Frame Hardware
Arctic Silver Quiet Drive Cross-trainer 93X-0XXX-03 Upper Frame Hardware S/N AXA100000 and up... -
Page 8: Rocker Arms And Pedal Levers
Arctic Silver Quiet Drive Cross-trainer Rocker Arms and Pedal Levers Rocker Arms Kit GK62-00002-0070 contents: Rocker Arms (2) Hardened Spacers (2) Oilite Washers (2) Retaining Rings (2) Loctite 620 Alcohol pad LF Bug Medallion Assy. AK58-00245-0000 Rocker Arms AK62-00002-0070 Shaft Collar w/Screws 0K61-01259-0000 Right Pedal Lever Assembly... -
Page 9: Crank Cover And Lower Caps
Arctic Silver Quiet Drive Cross-trainer Crank Cover and Lower Caps Front frame Cap M0K62-01004-0000 Mounting Screws (Located on front sides of Ladder Frame Cover) 2- 0017-00101-1795 S/N AXA100000 and up Stabilizer Caps 4 - 0K62-01003-0000 93X-0XXX-03 Crank Cover 0K61-03100-0002 2 - Mounting screws 0017-00101-1837... -
Page 10: Lower Frame Shrouds And Hardware
Arctic Silver Quiet Drive Cross-trainer 93X-0XXX-03 Lower Frame Shrouds and Harrdware S/N AXA100000 and up... -
Page 11: Pedal Lever Components
Arctic Silver Quiet Drive Cross-trainer Pedal Lever Components Control Link Kit GK62-00002-0071 (contains 2 control links, part nos. AK62-00384-0000) Right Pedal 0K62-01005-0000 Left Pedal 0K62-01006-0000 Pedal Mounting Hardware Screws (4) 0017-00101-1805 Washers (4) 0017-00104-0469 Pedal/Rocker Shaft & Bearings order kit GK62-00002-0001 E-Ring 0017-00100-0107 Thrust Washer... -
Page 12: Pcb, Battery, Reed Switch, And Bracket
Arctic Silver Quiet Drive Cross-trainer PCB, Battery, Reed Switch, and Bracket Power Control Board B084-92218-D002 PCB Mounting screws 0017-00101-1838 Battery Mounting screws 0017-00101-1797 PCB, Reed Switch Battery Bracket 0K62-01233-0000 6V Battery 0017-00003-0685 93X-0XXX-03 S/N AXA100000 and up Grommet (4) M0017-00042-0821 Reed Switch 118E-00001-0140 Reed Switch... -
Page 13: Bearing Insert Assembly
Arctic Silver Quiet Drive Cross-trainer Bearing Insert Assembly this bearing insert assembly is used four times on this cross-trainer Service Kit- MGK62-00002-0044 Includes: 1- crankshaft 2- bearings 2- sets of bearing flanges 4- nuts and washers Service Kit- GK62-00002-0045 Includes: 1 - intermediate shaft 2 - bearings 2- sets of bearing flanges... -
Page 14: Crankarm Pulley Assembly
Arctic Silver Quiet Drive Cross-trainer Crank Arm Pulley Assembly Retaining Ring 0017-00100-0107 Crank arm mounting bolt 0017-00101-1849 nut - 0017-00103-0334 Magnet Mounting screw 0017-00101-1835 washer 0017-00104-0144 Crank arm weld Assembly MAK62-00205-0000 Magnet-Standoff Assembly AK62-00186-0000 93X-0XXX-03 S/N AXA100000 and up Poly-V Crank Pulley 0K61-02409-0000 Crankshaft Plate M0K61-02302-0001... -
Page 15: Drive Module
Arctic Silver Quiet Drive Cross-trainer Drive Assembly Crank Arm-Pulley Assembly See Page 14 for breakdown Crankshaft M0K62-01222-0001 J10 Flexonic Belt 0K62-01135-0000 Intermediate Shaft 0K62-01223-0000 Resistor Assembly Includes Power Control Cable MAK62-00260-0000 S/N AXA100000 and up Alternator-Flywheel Assembly AK61-00250-0001 Mando Alternator Brushes 0017-00009-0895 Right Crank Arm Weld Assembly... -
Page 16: Drive Module Hardware
Arctic Silver Quiet Drive Cross-trainer Drive Module Hardware Crankshaft M0K62-01222-0001 Square Machine Key (2) M0K53-01122-0000 Alernator-flywheel mounting bolt and nut bolt-0017-00101-1867 nut-0017-00103-0332 S/N AXA100000 and up Alternator-Flywheel Assembly Mounting bolt 0017-00101-0986 Crank Arm Mounting bolt 0017-00101-1849 0017-00103-0334 Retaining ring 0017-00100-0107 Poly-V pulley mounting screw and washer... -
Page 17: Cables
Arctic Silver Quiet Drive Cross-trainer Cables Power Control Cable AK62-00092-0000 S/N AXA100000 and up Power Control Board B084-92218-D002 15 K OHM Console PCB A084-92220-A008 93X-0XXX-03 Main Cable AK62-00093-0000...
