M

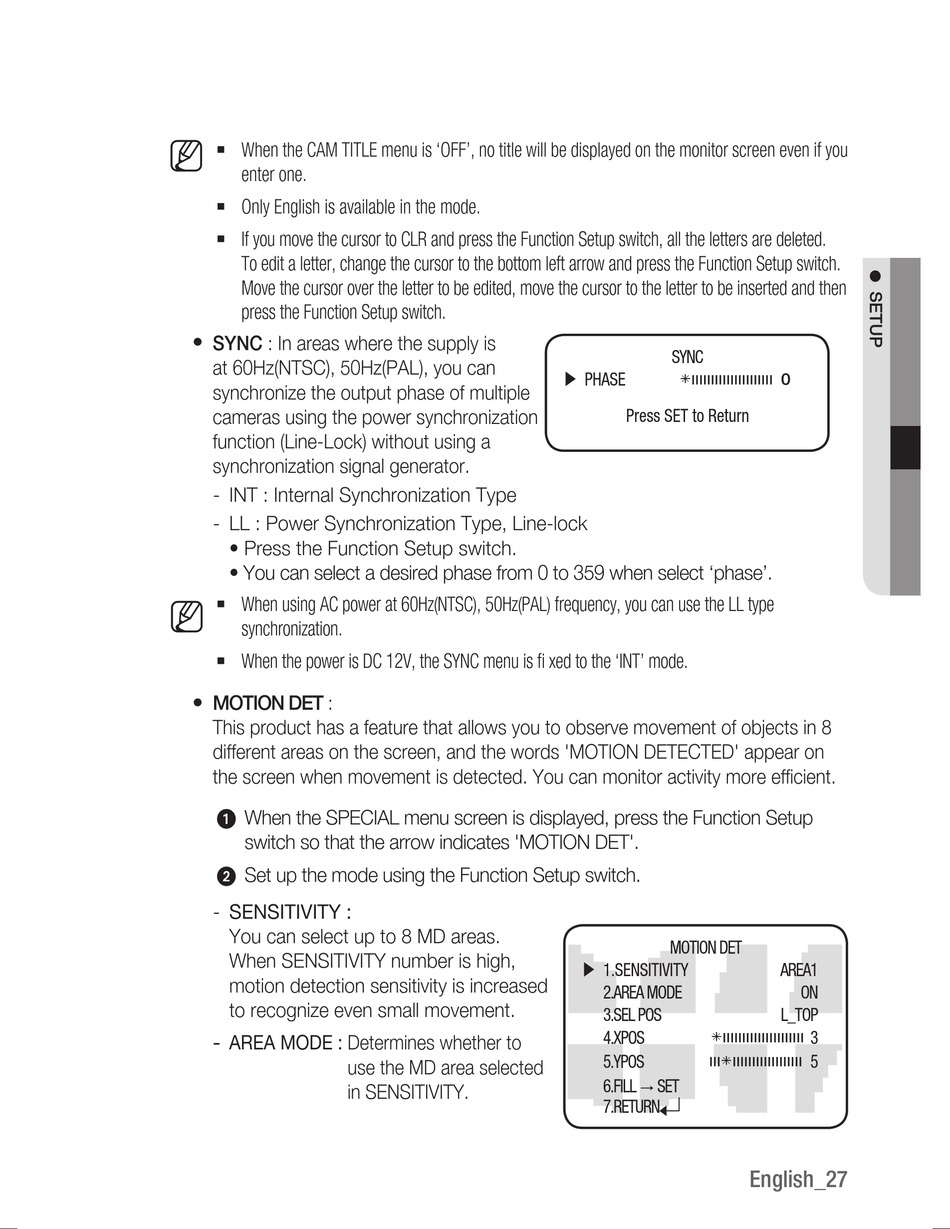

When the CAM TITLE menu is 'OFF', no title will be displayed on the monitor screen even if you
enter one.
Only English is available in the mode.
If you move the cursor to CLR and press the Function Setup switch, all the letters are deleted.
To edit a letter, change the cursor to the bottom left arrow and press the Function Setup switch.
Move the cursor over the letter to be edited, move the cursor to the letter to be inserted and then
press the Function Setup switch.
SYNC : In areas where the supply is
at 60Hz(NTSC), 50Hz(PAL), you can
synchronize the output phase of multiple
cameras using the power synchronization
function (Line-Lock) without using a
synchronization signal generator.
-
INT : Internal Synchronization Type
-
LL : Power Synchronization Type, Line-lock
• Press the Function Setup switch.
• You can select a desired phase from 0 to 359 when select 'phase'.
When using AC power at 60Hz(NTSC), 50Hz(PAL) frequency, you can use the LL type
M
synchronization.
When the power is DC 12V, the SYNC menu is fi xed to the 'INT' mode.
MOTION DET :
This product has a feature that allows you to observe movement of objects in 8
different areas on the screen, and the words 'MOTION DETECTED' appear on
the screen when movement is detected. You can monitor activity more effi cient.
➊ When the SPECIAL menu screen is displayed, press the Function Setup
switch so that the arrow indicates 'MOTION DET'.
➋ Set up the mode using the Function Setup switch.
-
SENSITIVITY :
You can select up to 8 MD areas.
When SENSITIVITY number is high,
motion detection sensitivity is increased
to recognize even small movement.
-
AREA MODE : Determines whether to
use the MD area selected
in SENSITIVITY.
SYNC
▶ PHASE
Press SET to Return
MOTION DET
▶ 1.SENSITIVITY
2.AREA MODE
3.SEL POS
4.XPOS
5.YPOS
6.FILL
SET
7.RETURN
0
AREA1
ON
L_TOP
3
5
English_27
