Thank you for choosing Boss Audio Systems! This unit will bring you years of enjoyment. CONTENTS Safety Precautions..............2-3 Installation................4-6 Wiring Connections..............7 Controls Of The Unit..............8 Basic Operation..............9-10 Radio Operation..............11-12 DVD/VCD/CD/MP3/WMA Operation........13-17 Setings & Sound...............18 Other Operation...............19 Maintenance................20 IR Remote Control..............21 Troubleshooting Guide............22... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Important Warnings to Take Note of BEFORE Starting the Installation Damage Caused By Incorrect Installation or Usage is NOT Covered By Warranty. PLEASE Take the Time to Read the Installation Notes Carefully. Please make all necessary connections and terminate any unused wires so they do not short. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Secure the wiring with zip ties or electrical tape. . To protect the wiring, wrap adhesive tape around them where they lie against metal parts. To avoid short-circuiting, cover all disconnected lead with insulating tape. There is a possibility of short-circuiting if the leads are not insulated. -
Page 5: Installation
INSTALLATION Tools for Installation 2 removal wrenches are supplied for taking out the old unit and place with this brand name car radio. The following tools and supplies may also be needed for the installation: Tools for Installation: Philips Screw-drivers /Machine Screws /Wire Stripper /Wire Cutter /Hammer /Pencil /Electrical Tape /Electric Drill Supplies for Installation: Machine Screws /Crimp Connectors /14 Gauge Wire for Power Connections /14-16 Gauge Speaker Wires... - Page 6 INSTALLATION WARNING! Disconnect negative battery terminal from battery before starting installation. NOTE: Mark the polarity of the existing speaker wires before discon- necting battery. NOTE: Remove the two transport screws from the top of the unit before installing. DIN Front Mount 1.
- Page 7 INSTALLATION DIN Rear Mount NOTE: Outer trim frame, hook, and mounting sleeve are not used for this installation This is only intended as a general guide; contact the vehicle’s manufacturer for specific instructions. This menthod of installation uses the screw holes at the sides of the unit and the holes of the existing vehicle mounting bracket.
-
Page 8: Wiring Connections
WIRING CONNECTIONS General Wiring Notes: Black Ground Connect to vehicle body/chassis. Make sure you have a good chassis ground. This will eliminate most electrical noise form the motor and alternator. A good chassis ground requires a tight connection to ground. The area should be free from rust, paint or any form of dirt. -
Page 9: Controls Of The Unit

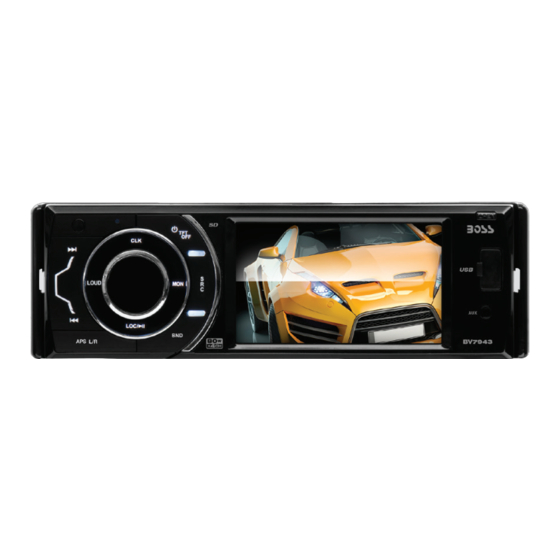

Controls Of The Unit... -
Page 10: Basic Operation
Basic Operation 1. Tuning the unit On / Off Press the Power button once to turn the unit on. The opening screen of the unit will be showing on the TFT monitor. Press and hold the POWER button for 2 seconds to turn the unit off. 2. - Page 11 Basic Operation(Con’d) 8. Mute Control Press the MUTE Button on the remote control to activate the mute function. Press the button again to resume. 9. Bass Press the VOL knob until the display shows “BAS”. Use the VOL DN/UP knob to adjust.
-
Page 12: Radio Operation
Radio Operation 1. Choose Radio Band Press the MOD Button to access the radio function. Press the BND button to select your desired radio band during RADIO mode. The unit comes with five bands- three FM Bands (FM1, FM2, and FM3) and two AM Bands (MW1, and MW2). - Page 13 Radio Operation(Con’d) 5. Save Your Preset Stations There are six numbered preset(P1-P6) buttons when you enter radio mode which can store and recall stations for each band. While listening to a radio station you would like to save as a pre-set, touch one of the buttons numbered P1-P6 until you hear a beep.
-
Page 14: Dvd/Vcd/Cd/Mp3/Wma Operation
DVD/VCD/CD/MP3/WMA Operation 1.Insert / Eject CD Press “Open” button, the front pannel of the unit will slip down and then insert a disc into CD slot with label side up. The disc will be automatically loaded into the unit, even when it is off or at radio mode. Then close the front panel. - Page 15 DVD/VCD/CD/MP3/WMA Operation(Con’d) 2. OSD (ON-Screen Display) While playing DVD/VCD, press OSD button On the remote control or touch the screen directly to activate the OSD. A. For VCD, the monitor will show the details as PIC 03 : B. For DVD, activate OSD for the first time, the monitor will show the de- tails as PIC 04 : activate OSD for the second time, the monitor will show : Press again to turn the OSD off, leave it for 5 seconds, the unit will turn off...
- Page 16 DVD/VCD/CD/MP3/WMA Operation(Con’d) The audio languages available differ from Disc to Disc. You can also use the setup menu to confirm. Refer to the packing of the Disc for details. VCD: Press AUDIO during playbackIt is possible to switch the sound between mono and stereo sound.
- Page 17 DVD/VCD/CD/MP3/WMA Operation(Con’d) 15. Returning to Main User Interface Press the arrow on the right hand side of onscreen menu p.1 to return to the main user interface. Onscreen Menu SETUP MENU The functions of the setup menu will be briefly described as follows: 1.
- Page 18 DVD/VCD/CD/MP3/WMA Operation(Con’d) Rating 3: [PG] -- Select it to indicate that it needs parents to guide their children. Rating 4: [PG_13] -- Select it to indicate that children under 13 are forbid- den to view. Rating 5: [PG_R] -- Select it if “PG_R” was printed on the DVD disc. Rating 6: [R] -- Select it to indicate that children under 17 must be guided to view by their parents.
-
Page 19: Setings & Sound
Settings & Sounds The Settings and Sound menu can be selected in Radio, Aux and Main User Interface. 1. CLOCK Set the time clock by touching the arrow up or down for hour and min session accordingly. The clock will be displayed on the right. 2. -
Page 20: Other Operation
Other Operations 1. Front Pre-amp Output x 4 The RCA Output Jack is on the back of the unit. (Refer to Wiring Diagram) This output is for connecting amplifier, equalizer, or other audio component that requires a pre-amp out connection. (Red=Right, White=Left) Follow the manu- factures instructions for the audio component that you are connecting. -
Page 21: Maintenance
Maintenance Cleaning the Unit Do not use any liquids to clean this unit. Do not use petroleum distillates to clean this unit. Use a clean, dry cloth to clean this unit. Replacing the Fuse Make sure the amperage matches the specified value when replacing the fuse(s). -
Page 22: Ir Remote Control
IR Remote Control Power on/off Cursor Button in Menu Mode Band Select BAND Mode Select Key Confirm The Track/Chapter Selected ENTER or Select Item In SETUP Menu. Play / Pause Function Stop Playback Mute Sound Function MUTE Watch The DVD Content From Angle Show All Track's Title (DVD only) Different Angle... -
Page 23: Troubleshooting Guide
Troubleshooting Guide PROBLEM CAUSE/SOLUTION Check wiring connections. No Power Check and make sure the fuse is not blown. Replace with the proper rating/size fuse. Some errors occur in the LCD or nothing func- Press the RESET Button. tions when buttons are pressed.
