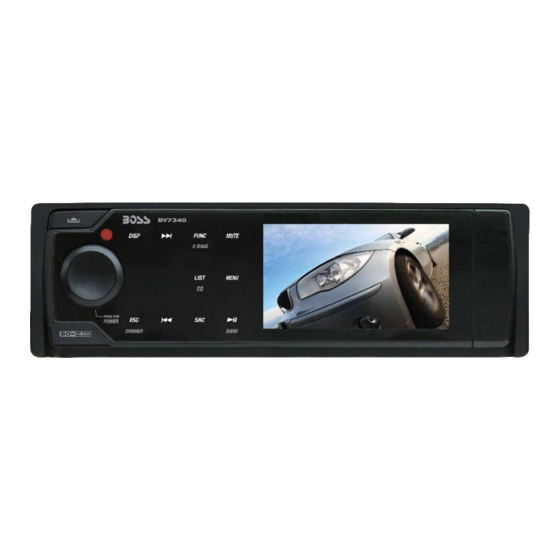

Summary of Contents for Boss Audio Systems BV7340
- Page 1 10 R - 02 1011...
- Page 2 This radio is equipped with the most advanced "TOUCH SENSE PANEL", so that it is easy and convenient to use while driving. Here are some tips to show you how easy it is to use this touch sense panel: Tips Using a very light touch on the radio panel will activate that feature.
- Page 3 WARNINGS When Driving USE OF CONTROLS OR ADJUSTMENTS OR Keep the volume level Iow enough to aware of PERFORMANCE OR PROCEDURES OTHER the road and traffic conditions. THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION CAUTION EXPOSURE. In some countries, it's unlawful to operate a DO NOT OPEN COVERS AND DO NOT vehicle while video is displayed in the REPAIR BY YOURSELF PLEASE REFER...
-
Page 4: Disc And Format Supports
DISC AND FORMAT SUPPORTS Unsupported Discs This unit can play various video/audio format which stored into Disc/USB or SD card on 8 cm Disc Media Player. CDV , CDI, CDG, The following chart helps you to check if a MultiMedia RAM disc is supported by this unit, as well as what functions are available for a given disc type. -
Page 5: Installation
INSTALLATION The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your customer car audio dealer or a company suppling kits. If you are not sure how to install this unit correctly, have it installed by a qualified technician. To attach the front panel back to the unit Trim Plate chassis, firstly join the right guide block... -
Page 6: Connecting The System
CONNECTING THE SYSTEM About Parking Wire About The Reverse Wire For Back Up Camera System CAUTION If user connected a back up camera system In order to avoid any accident, the driver must to this unit, when the vehicle is in reverse not watch video while driving. -
Page 7: Wiring Diagram
CONNECTING THE SYSTEM Wiring Diagram ANTENNA ANTENNA EXTENDER JACK CABLE BLACK FRONT LINE OUT WHITE RCA-TO-RCA CABLE (not supplied) BLACK REAR SUB-W OUT BACK UP CAMERA IN OR VIDEO IN YELLOW VIDEO IN ISO CONNECTO SOCKET VCR or MultiMedia AUDIO IN (RIGHT) (See Figure 1) AUDIO IN R GAME CONSOLE... - Page 8 THE FUNCTIONS OF MAIN UNIT AV IN DISC RESET SLOT SLOT Decriptions Item RELEASE Press this button to open the control panel. Short press this button to access into the Audio Menu mode. AUDIO MENU POWER Press this button or any other button on the front panel (except Release button) to turn the unit on.
- Page 9 THE FUNCTIONS OF MAIN UNIT DISP Under Media playback mode, short press this button to switch (DISPLAY) between OSD display or Video display mode. MUTE Short press this button to turn the Mute On/Off. LIST Under tuner mode,press this button to Show The List of stored station.
- Page 10 THE FUNCTIONS OF REMOTE CONTROL Decriptions No. Button Item POWER ON Press this button to turn On / Off the unit. Press this button to turn the Mute On / Off. MUTE AUDIO MENU Press this button to enter into the Audio Menu mode. AUDIO SYSTEM MENU Hold &...
- Page 11 THE FUNCTIONS OF REMOTE CONTROL Under the tuner mode, press this button access Auto Seek mode. Under the media playback mode, press this button to skip backward of the previous chapter. Under the tuner mode, press this button access Auto Seek mode. Under the media playback mode, press this button to skip forward of the next chapter.
-
Page 12: Adjust Audio Settings
ADJUST AUDIO SETTINGS FADER Press Button to access the Audio Menu. User has 5 seconds to use the to adjust The below Audio Setting can be select: the Fader between the front and rear speakers BASS (Bass Level) from R12 (full rear) to F12(full front).“C00” User has 5 seconds to use the to adjust represents an equal balance between the front... -
Page 13: Adjust System Menu Settings
ADJUST SYSTEM MENU SETTINGS MENU (System Menu) VOLUME PGM (Programmable Turn-on Volume) Hold & press the Button to get into the This option allows the adjustment of the volume System Menu. User can use level of the radio will automatically assume navigate thru the menu setting &... -
Page 14: Tuner Operations
TUNER OPERATIONS FUNCTION BUTTON BAND BUTTON Press the BAND button to change between FM Press the Button under Tuner mode, the bands and or AM(MW) bands. below functions are available for Tuner mode: LIST BUTTON MANUAL Use this funtion to saved the current frequency to memory STORE Press... -
Page 15: About Rds
ABOUT RDS AF (Alternate Frequencies) NOTE If the radio signal comming from the current This unit default at USA Tuner Area. RDS station is poor, you can turn on the AF function only activated after selected the (Alternate Frequency) function to let the unit Tuner Area to “... -
Page 16: General Operation
MEDIA PLAYER OPERATIONS (Disc/USB/SD Card) Album Up General Operation Under List Search mode, press Track Up/Down as folder up/down on the unit. SOURCE BUTTON Press button to select DISC, USB, SD 00:00:16 CARD. The unit will automatically start /...F1 064KBPS/T01 MENUETTO.WMA 01/22 Filter playback. - Page 17 MEDIA PLAYER OPERATIONS (Disc/USB/SD Card) TRACK/FILE SELECT Insert the SD Card Use TRACK/FILE UP ( ) or TRACK/FILE DOWN ( ) button to move to the next track on the Disc mode. The selected track number will appear on the display. Press and hold the button for more than one second to fast forward or fast rewind through the media.
-
Page 18: Multimedia Operation
MULTIMEDIA OPERATION LIST BUTTON Once a MultiMedia disc is inserted into the unit, the unit will automatically start the playback Under the MultiMedia playback mode, press from the beginning of the disc, and then the button can access to the MultiMedia Root MultiMedia MENU or ROOT or TITLE in the menu. -
Page 19: Av-In Mode
AV-In Mode AV in-2 Select the AV Mode Connect the external signal to the RCA line in Your can connect up to 1 AV device, press jack located at the rear of the unit , then press Button to enter into the AV mode: Button to select AV in-2. -
Page 20: Specifications
SPECIFICATIONS TFT Screen Section Screen Size: 3.2”(Measured Diagonally) Screen Type: TFT Liquid Crystal Display active matrix Resolution: 320 x 240 MultiMedia / CD Section Compatible Disc/Format See “ Disc Note” for more details description Signal to Noise Ratio > 90 dB Dynamic Range >... -
Page 21: Troubleshooting
TROUBLESHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom Cause Solution The car ignition is not on. If the power supply is properly connected to No power the car accessory terminal, switch the ignition key to “ACC”...
