Curtis FreshTrac TFT64 Service Manual

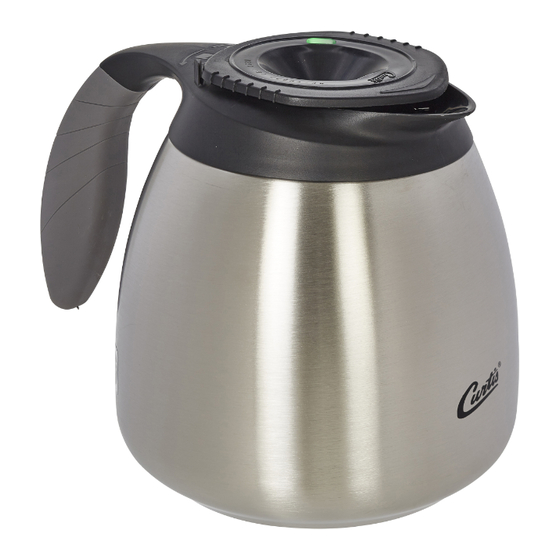

TFT64/TFT64D & TFT642H/TFT642HD FreshTrac™ Coffee Server
FreshTrac™ Coffee Timer
FreshTrac lids (Curtis p/n WC-56077, WC-56077D, WC-56077-2H or WC-
56077D-2H) have two unique functions: a coffee quality timer and a volume
indicator. Blinking red and green LEDs indicate the coffee freshness and level of
coffee remaining in the server.
The FreshTrac activates when brewed coffee flows into the empty server.
LED Indicator Lights
1. Wake Up Mode - When coffee starts flowing into the empty server, the LED
lights blink alternating Green-Red-Green.
2. Coffee is Fresh – The green LED blinks every 6 seconds to designate the coffee in the server is fresh. The blinking
green LED will continue for 50 minutes (TFT64 and TFT64D) or 110 minutes (TFT642H and TFT642HD).
3. Warning Mode — Green and Red LED Lights alternately blink for 10 minutes.
a. When the timer is 10 minutes or less from expiration.
b. When volume in the dispenser is 24 oz. or less (+/- 4 oz.).
4. Time Expired and/or Dispenser is (nearly) Empty – The Red LED blinks every 6 seconds for 60 minutes when
either of the conditions below are true:
a. The Fresh Coffee time has expired.
b. The coffee dispenser is (nearly) empty – 4 ounces or less.
5. The red LED will stop blinking and turn off after 60 minutes.
6. The TFT timer will reset when the liquid level transitions from 0 ounces to 1 ounce, and when the server remains
unchanged for at least 24 seconds at level 0.
W
Brewing into the Server
The server has a brew through top to keep heat and flavor in.
1. Place the clean, empty server centered under the brew cone of the coffee brewer.
2. Fill brew cone with ground coffee. Insert it into the brew rails.
3. On the electronic controller of the brewer, press the brew cycle button to start the brew
cycle.
4. Allow the coffee brewer to complete the brew cycle. Make sure the brew cone has drained
completely before removing the coffee server.
