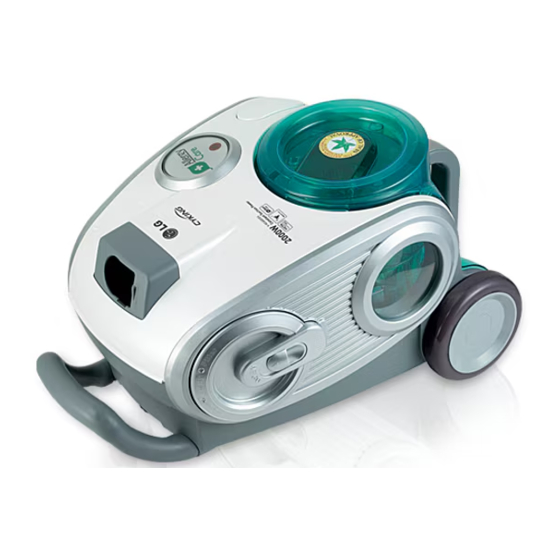

Page 1: Vacuum Cleaner
VACUUM CLEANER SERVICE MANUAL CAUTION BEFORE SERVICING THE UNIT, READ THE "SAFETY PRECAUTIONS" IN THIS MANUAL. MODEL:V-KC402CT, V-KC402CTU, V-KC402CTQ, V-KC402CTUQ V-KC402CTQU, V-K8501CTU, V-K8502CTU, V-C8200CTU V-K8503CTU, VCC402CTU, V-KC442CTU... -
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ..................3 CAUTIONS......................3 DESCRIPTION ....................4 SPECIFICATION....................4 DISPLAY LED ......................5 VOICE ALARM.....................6 DISASSEMBLY ....................7~8 TROUBLE SHOOTING GUIDE................7~9 SCHEMATIC DIAGRAM..................10 CIRCUIT DIAGRAM...................10 SCHEMATIC DIAGRAM..................11 CIRCUIT DIAGRAM...................11 EXPLODED VIEW ..................12~15 REPLACEMENT PARTS LIST ..............16~17 THE TYPE OF POWER CORD .................18... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS BEFORE OPERATING THIS VACUUM CLEANER, READ THIS SERVICE MANUAL THOROUGHLY, AND OBSERVE EACH POINT CAREFULLY. 1. Motor filter(Air Cleaner) 3. Avoid suction such materials as : 1) Liquid or wet dust : 1) This filter is reusable. Clogs the ventilation holes, reduces the suction 2) Never use the vacuum cleaner without filter. -
Page 4: Description
DESCRIPTION Flexible Hose Assembly Cord Reel Dust Tank Power Cord Button Body Cover Telescopic pipe • NZ-50 • NZ-46 • NZ-43 ATTACHMENTS DUSTING BRUSH UPHOLSTERY NOZZLE CREVICE TOOL ACCESSORY HOLDER SPECIFICATIONS • MODEL : REFER TO THE COVER PAGE • PACKING DIMENSION : 370 x 580 x 455 (W x D x H)mm •... -
Page 5: Display Led
DISPLAY LED : All LEDs turn on when powering off or being in • Auto Mode • Standby mode. Auto on : Mode that noise is weakest in minimum power status. Use this mode at night or when calmness is needed. : Mode to indicate maximum suction power operation. -
Page 6: Voice Alarm
VOICE ALARM 1. VOICE ALARM 2. VOICE ALARM ON/OFF(default : ON) Voice alarm to inform operation status of the • To let voice alarm OFF, press "OFF" button for cleaner. three second. • Informs operation status of the cleaner with a speaker mounted inside of the cleaner cover. -
Page 7: Disassembly
DISASSEMBLY NOTE: Before attempting to service or adjust any part of the vacuum cleaner, disconnect the electrical power supply cord from the wall outlet. • Almost all of the parts of this vacuum cleaner can be 3) Remove the four screws fastening the body cover. disassembled with a screw driver and each 4) Disassemble the body cover, rasing the body connecting component easily fits each other. - Page 8 2) Remove the two screws fastening the motor chamber. 3) Unhook the two hook. 4) Pull out motor and disconnect the lead wires from it. 3) Lift the cord reel assembly from the body base. 3. Disassembly of Body Base Assembly and Cord Reel Assembly.
-
Page 9: Troubleshooting
TROUBLESHOOTING 1. SWITCH ON BUT MOTOR DOSE NOT TURN. CHECKING CAUSE SOLUTION CHECK THE POWER The fuse is melt down in the Exchange the fuse. coverknife switch. SOURCE Poor plug insertion Insert again. Power cord cut Repair or exchange. Interior lead wire cut Exchange the lead wire. - Page 10 3. SWITCH OFF BUT MOTOR TURNS Poor connection Repair. 4. WEAK SUCTION POWER Motor armature cut Exchange the motor. Foreign matters attached to Remove the foreign matters. Low rotation speed the impeller Inquire to the power utility Low voltage company. Hose and extension wands Remove the foreign matters are clogged with foreign...
- Page 11 5. VIBRATION NOISES Loose parts Secure firmly. Unbalanced motor assembly Exchange or repair the motor. Foreign matters are attached Remove the foreign matters. to the impeller. Armature is cut or foreign Exchange the motor matters attached. Remove foreign matters. 6. RADIO, TV RECEPTION DISTURBANCE Poor cord, lead wire Exchange cord, lead wire.
-
Page 12: Schematic Diagram
SCHEMATIC DIAGRAM -12-... -
Page 13: Schematic Diagram
SCHEMATIC DIAGRAM -13-... -
Page 14: Exploded View
EXPLODED VIEW BASE ASS'Y, BODY 135513 168711 136611 146811 335404 139202 139206 235504 152001 252311 135515 140363 140361 235505 135506 445101 135516 149702 139201 146871 252303 166311 366011 140400 146611 130401 136501 144411 -14-... - Page 15 COVER ASS'Y, BODY 235507 235506 250204 235509 249701 268712 235508 166312 235517 235518 235501 268715 239202 169000 268714 435506 368011 -15-...
- Page 16 TANK ASS'Y, DUST 748393 335513 335508 140364 750063 140365 750062 239203 739204 748382 749704 749701 740261 340261 650800 175261 533001 -16-...
- Page 17 HOSE ASS'Y, FIEXIBLE 452153 552491 552495 552493 652012 652481 652031 650581 449301 -17-...
-
Page 18: Replacement Parts List
REPLACEMENT PARTS LIST LOCATION No. DESCRIPTION P/No REMARK 130401 BASE BODY REFER TO APPENDIX 135515 COVER, BACK REFER TO APPENDIX 335404 COVER, TOP REFER TO APPENDIX 135506 COVER, MOTOR HOUSING 3550FI1891A 136611 HOUSING, MOTOR 3660FI1253A 152001 PIPE, CONNECTOR 5200FI2543A 235504 COVER, EXHAUST FILTER REFER TO APPENDIX 235505... - Page 19 REPLACEMENT PARTS LIST LOCATION No. DESCRIPTION P/No REMARK 748382 TANK, CYCLONE 4838FI1425A 750063 CAP, DUST 5006FI1342A 335508 COVER, DUST 3550FI1893A 335513 COVER, DECO REFER TO APPENDIX 533001 BOTTOM, PLATE REFER TO APPENDIX 740261 LATCH 4026FI3712A 340261 LATCH 4026FI3713A 239203 LATCH 4026FI3716A 650800 SHIELD, INNER...
-
Page 20: The Type Of Power Cord
APPENDIX 1. THE TYPE OF POWER CORD & PARTS NUMBER Cord Reel ASS'Y P/No. Type Type of plug (L/No. : 146871) 4687FI1494L A - 1 12.7 S - 1 C - 2 4687FI1494E 4687FI1494P C - 1 Color identification of fuse Brown B - 3... - Page 21 2. COLOR & PART NUMBER COLOR LOCATION/No. SHADOW GRAY NEO GRAY DESCRIPTION 130401 BASE BODY 3040FI1553A 3040FI1553B 135515 COVER, BACK 3550FI1896A 3550FI1896B 335404 COVER, TOP 3550FI1897A 3550FI1897B 136501 HANDLE, CARRIER 3650FI2434A 3650FI2434B 235501 COVER, BODY 3550FI1889A 3550FI1889B 533001 BOTTOM, PLATE 330FI1473A 330FI1473B 739204...
- Page 22 Memo -22-...
- Page 23 Memo -23-...
- Page 24 September, 2005 P/No.: 3828FI00002 Printed in Korea...
