Page 1: User Manual
Belkin® Advanced 4-port Secure DVI-I KVM Switch with DCU User Manual User Manual F1DN104G--Advanced Secure 4-Port Single-Head DVI-I KVM with DCU F1DN104H--Advanced Secure 4 -Port Dual-Head DVI-I KVM with DCU Document Number 8820-00779 Rev. A00... -
Page 2: Table Of Contents
System Requirements ........7 Reporting Belkin Product Security Vulnerability . . . . . . . . . . . . . 24 Unit Display Diagrams . -
Page 3: Package Contents
LEDs flash continuously, please call gov_security@belkin .com Belkin Technical Support at (800) 282-2355 . Please note: Belkin Secure KVMs cannot be upgraded, serviced or fixed . Belkin® Advanced 4-port Secure DVI-I KVM Switch with DCU User Manual... -
Page 4: Belkin® Advanced 4-Port Secure Dvi-I Kvm Switch With Dcu User Manual
The product has been dropped or is physically damaged. o The product has obvious signs of breakage or loose internal parts. o Power supply overheated, broken, damaged or has a damaged cable. Belkin® Advanced 4-port Secure DVI-I KVM Switch with DCU User Manual... -
Page 5: Security Features
Table of Contents Security Features Unidirectional Data Paths The Belkin Secure KVM Switch is the most advanced and secure commercially available KVM Switch available today. Below is a Optical diodes used in USB data paths provide high isolation and summary of some of the key security features incorporated into the prevent data leakage. -
Page 6: Belkin® Advanced 4-Port Secure Dvi-I Kvm Switch With Dcu User Manual
EAL 4+ Evaluation (Canada) Protected DDC/EDID emulation prevents software weaknesses that The Belkin Secure KVM switch was evaluated in Canada to EAL 4+ can cause data leakage while maintaining compatibility with the level and is listed on the Common Criteria Portal console display. -
Page 7: Belkin® Advanced 4-Port Secure Dvi-I Kvm Switch With Dcu User Manual
SECTIONS Table of Contents Other Features The Belkin Secure KVM was designed with the user in mind for Port Coloring today’s IT environment. Below is a summary of some features The included color chips can be inserted into each port-selector incorporated into the switch. -
Page 8: Equipment Requirements
F2CD002b06-E (DP to DVI) F1D9013b10 – 10 ft. (3m) F1D9013b15 – 15 ft. (4.6m) Note: Due to USB and DVI signal limitations, the cable length cannot exceed 15 feet (4.6m). Belkin® Advanced 4-port Secure DVI-I KVM Switch with DCU User Manual... -
Page 9: Belkin® Advanced 4-Port Secure Dvi-I Kvm Switch With Dcu User Manual
• USB-compatible CAC or Smart Card Readers • Windows 7 Desktop Controller Unit • Windows 8 The Belkin Secure KVM is compatible with the following types of Remote Desktop Controller device: • Windows Vista® • DCU device connected to the switch DCU port. -
Page 10: Unit Display Diagrams
If for any reason the tamper-evident lable is missing, appears disrupted, or looks different than the example shown here, please call Belkin Technical Support at (800) 282-2355 . F1DN104H model shown Belkin® Advanced 4-port Secure DVI-I KVM Switch with DCU User Manual... -
Page 11: Back View

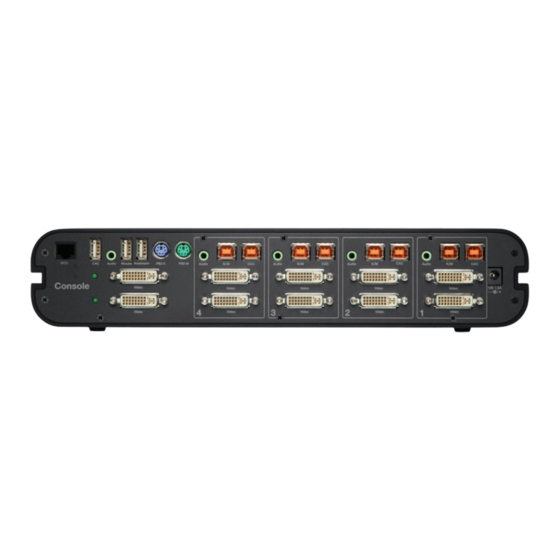

OVERVIEW SECTIONS Table of Contents Back View F1DN104H model shown Belkin® Advanced 4-port Secure DVI-I KVM Switch with DCU User Manual... - Page 12 OVERVIEW SECTIONS Table of Contents Back View F1DN104G model shown Belkin® Advanced 4-port Secure DVI-I KVM Switch with DCU User Manual...
-
Page 13: Specifications
USB Type A Humidity: 0-80% RH, non-condensing Console CAC Input: USB Type A Warranty: 3 years Console Monitor Port: DVI-I Dual-Link female Console Headset / Speaker output jack 3.5mm female Belkin® Advanced 4-port Secure DVI-I KVM Switch with DCU User Manual... - Page 14 OVERVIEW SECTIONS Table of Contents Dimensions: (F1DN104G) 12.5 (W) x 1.7 (H) x 6.4 (L) inches (F1DN104H) 12.5 (W) x 2.5 (H) x 6.4 (L) inches Weight: (F1DN104G) 3.9 lbs. (F1DN104H) 4.85 lbs. Made in the USA Belkin® Advanced 4-port Secure DVI-I KVM Switch with DCU User Manual...
-
Page 15: Installation
2 . 1 Power on the monitor. and mouse 2 .2 Power up the Belkin Secure KVM switch by connecting the power. • The location of your computers in relation to your console The display diagnostic LED should be solid green a few seconds after power up. - Page 16 3 .2 Using the Belkin DVI/USB KVM Cable Kit (sold separately), simultaneously. connect the computers to a port on the rear of the Belkin Secure KVM. Note: The Cable Kit must be connected directly to a free USB port on Note: Your computers should recognize the Switch and automatically your computer with no USB hubs or other devices in between.
-
Page 17: Color Code Chip Installation
The included network-name and blank labels can be placed in the easier identification. Refer to the installation instructions below. area underneath the port-selector buttons for port identification. Note: You may have to remove the existing black color chip first. Belkin® Advanced 4-port Secure DVI-I KVM Switch with DCU User Manual... -
Page 18: Selecting A Computer Using Port Selectors
Please note that the default port at power-up is port 1 . In case of a power failure or if the power is cycled, the Switch will default to port 1 . Belkin® Advanced 4-port Secure DVI-I KVM Switch with DCU User Manual... - Page 19 When switching from a CAC enabled port to a non-CAC enabled port, the CAC connection will remain with the last previously selected port where the CAC was set to enable. Belkin® Advanced 4-port Secure DVI-I KVM Switch with DCU User Manual...
-
Page 20: Troubleshooting
If the unit’s enclosure appears disrupted or if all the port LEDs flash continuously, please call Belkin Technical Support at (800) 282-2355. Belkin® Advanced 4-port Secure DVI-I KVM Switch with DCU User Manual... - Page 21 • Do not use a USB extension cable. If a DCU is being used the channel switching is controlled using the DCU and the port selector buttons on the Belkin Secure KVM will The CAPS, NUM, and Scroll Lock lights on my keyboard do not not work.
- Page 22 • Check to see if the LED is illuminated for the CAC reader. • If the computer is coming out of standby mode, allow up to one • Confirm that the CAC reader switch on the Belkin Secure KVM is minute to regain mouse function.
-
Page 23: Fcc Statement
DECLARATION OF CONFORMITY WITH FCC RULES FOR Belkin International, Inc. (“Belkin”) warrants to the original purchaser ELECTROMAGNETIC COMPATIBILITY of this Belkin product that the product shall be free of defects in design, assembly, material, or workmanship. We, Belkin International, Inc., of 12045 E. Waterfront Drive, Playa Vista, CA 90094, declare under our sole responsibility that the What the period of coverage is . - Page 24 What is not covered by this warranty? 2 . Your Belkin Customer Service Representative will then instruct you on how to forward your receipt and Belkin product and how to All above warranties are null and void if the Belkin product is not proceed with your claim.
- Page 25 IN NO EVENT SHALL BELKIN BE LIABLE FOR INCIDENTAL, SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR MULTIPLE DAMAGES SUCH AS, BUT NOT LIMITED TO, LOST BUSINESS OR PROFITS ARISING OUT OF THE SALE OR USE OF ANY BELKIN PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
- Page 26 SECTIONS Table of Contents Reporting Belkin Product Security Vulnerability If you are aware of potential security vulnerability with any Belkin Government product, we encourage you to contact us immediately at the following email address: gov_security@belkin.com or our technical support line at: 1-800-419-5546 After your communication is received, Belkin Government personnel will contact you to follow up.
-
Page 27: Windows
© 2013 Belkin International, Inc. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Windows, Windows Vista, Microsoft, and IntelliMouse are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mac OS and Mac are trademarks of Apple Inc., registered in the U.S. and other countries.
