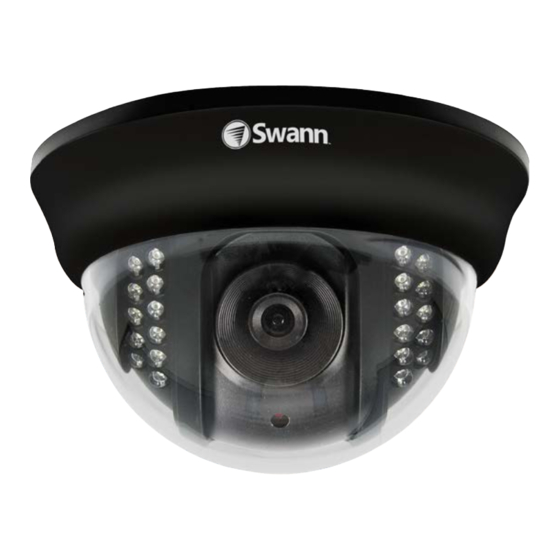

- Page 1 PRO-531 IR Dome Camera M531CAM050312T...
-
Page 2: Table Of Contents
Before You Begin IMPORTANT NOTE: Prohibition against eavesdropping Except for the operations of law enforcement officers conducted under lawful authority, no person shall use, either directly or indirectly, a device operated pursuant to the provisions of this Part for the purpose of overhearing or recording the private conversations of others unless such use is authorized by all of the parties engaging in the conversation. -
Page 3: Pack Contents
Mounting the camera There are two main parts to mounting the Pro-531; the base which is fixed to a ceiling or wall and the camera which is then secured to the base. • If the base is already secured to the dome camera, twist it anti-clockwise while... -
Page 4: Mounting The Camera (Cont.)
Solution: Connect a BNC to RCA adapter to the end of the Extension Cable and plug into the TV. Problem: On my Swann DVR, “Video Loss” appears where my camera should be. Solution: Check the Extension cable is securely connected to the camera and check the connection is secure on the back of the DVR. -
Page 5: Technical Specifications
Technical Specifications Image Sensor 1/3” SwannTruColor (STC) CMOS Video Quality 600 TV Lines Number of Effective Pixels 728 x 488 Minimum Illumination 0 Lux (IR on) Day/Night mode Color during day/in lit areas Black & White at night/in darkness White Balance Automatic Signal/Noise Ratio >... -
Page 6: Connection Guide
Connection Guide Connect the camera’s DC and BNC socket cable to the extension cable’s DC and BNC plugs 2A. Connecting Directly to TV Connect a BNC to RCA adapter and connect to video input on your TV or VCR INPUT... - Page 7 Connect the extension cables DC socket to the DC plug on the power adapter Plug in the camera power adapter into a wall socket 2B. Connecting to Your Existing DVR Connect the BNC extension cable to an open channel on the back of the DVR...
- Page 8 Any unit which proves defective during the stated period will be repaired without charge for parts or labour or replaced at the sole discretion of Swann. The end user is responsible for all freight charges incurred to send the product to Swann’s repair centres. The end user is responsible for all shipping costs incurred when shipping from and to any country other than the country of origin.
