Swann PRO-680 Operating Instructions Manual

540 tv line cctv camera with vari-focal lens 4mm ~ 9mm
Hide thumbs Also See for PRO-680:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

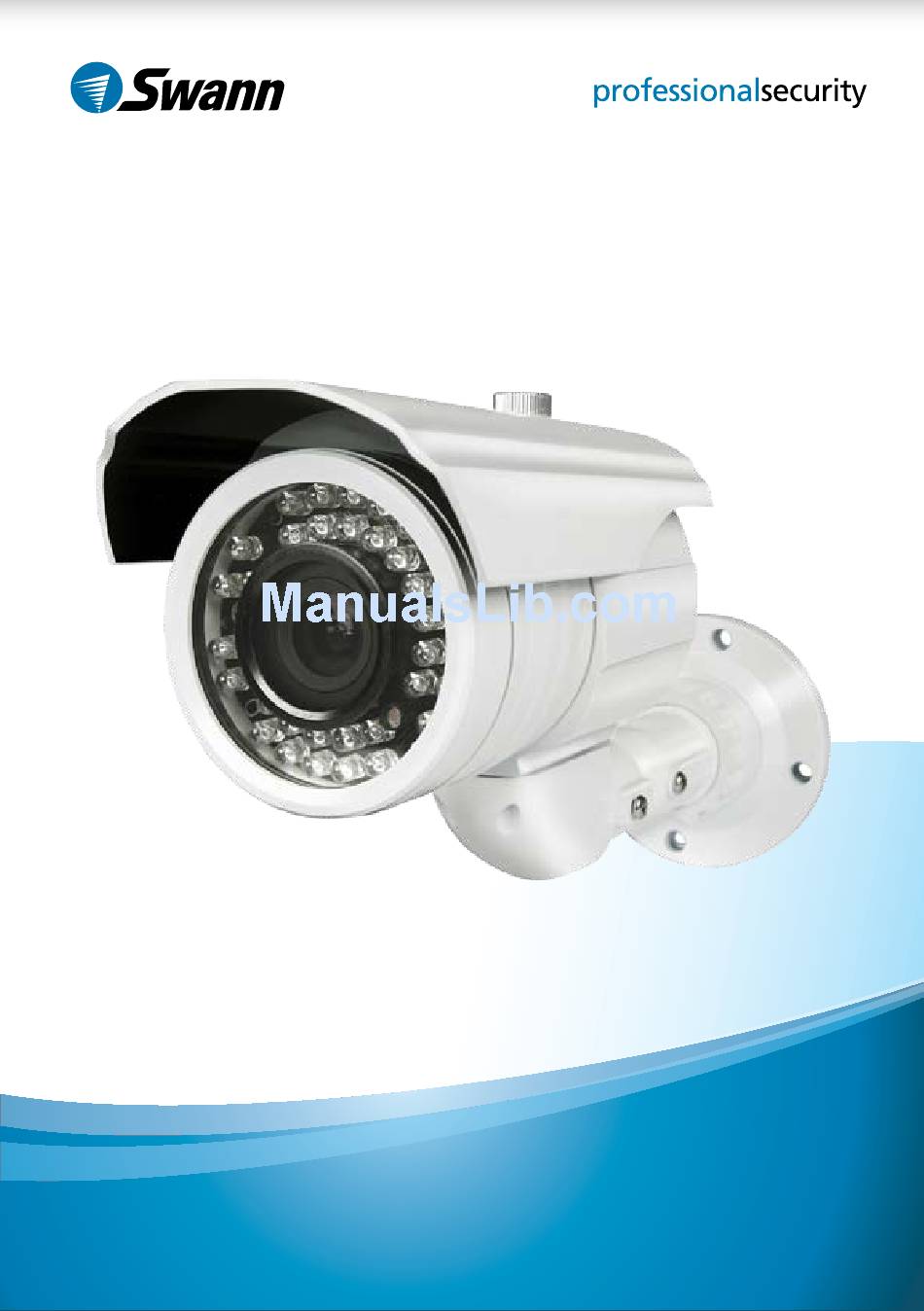

Advanced security made easy™
PRO-680™
540 TV Line CCTV Camera
with vari-focal lens 4mm ~ 9mm

Operating Instructions

PRO-680
M680CAM310810E
www.swannsecurity.com
1

Advertisement

Table of Contents
loading

Related Manuals for Swann PRO-680

Summary of Contents for Swann PRO-680

  • Page 1: Operating Instructions

    Advanced security made easy™ PRO-680™ 540 TV Line CCTV Camera with vari-focal lens 4mm ~ 9mm Operating Instructions PRO-680 M680CAM310810E www.swannsecurity.com...

  • Page 2: About The Camera

    35m/115ft in complete darkness! Getting your PRO-680 mounted, connected and configured can be a bit of a process. It’s not a “plug- and-play” camera, though most of the advanced settings can be left on automatic, if that suits you.

  • Page 3: Adjusting The Lens

    Adjusting the Lens The zoom and focus controls are located on the rear of the camera. ZOOM: The left hand dial controls the level of zoom. You can vary the viewing angle between 35° and 70°. This is an approximately 2x optical zoom, which operates in a similar manner to the zoom on your digital camera.

  • Page 4: Connection Guide

    Connection Guide Connect the extension cables DC socket to the DC plug on the power adapter Plug in the camera power adapter into a wall socket Connect the camera’s DC and BNC socket cable to the extension cable’s DC and BNC plugs 2A.
  • Page 5 The OSD (On Screen Display) Using the OSD Controls The controls consist of LEFT, RIGHT, UP, DOWN and SET buttons. UP and DOWN select an item from the menu to modify, whilst LEFT and RIGHT change the value of that setting. The SET button will confirm a choice or enter a sub-menu.

  • Page 6: Troubleshooting

    Troubleshooting Troubleshooting Problem: At night, all I see is white. Solution: The camera is most likely looking through a window. At night, the infrared light the camera uses to see in the dark can ‘bounce back’ off a reflective surface (such as glass, water, spider webs, some ceramics and so on) and effectively blind the camera.
  • Page 7 Mounting There are three ways that you can mount the PRO-680: to a wall (1, recommended) or to a horizontal surface, either above (2) or suspended (3, requires additional hardware). To mount the camera, use the supplied mounting hardware (screws).

  • Page 8: Helpdesk / Technical Support Details

    Any unit which proves defective during the stated period will be repaired without charge for parts or labour or replaced at the sole discretion of Swann. The end user is responsible for all freight charges incurred to send the product to Swann’s repair centres. The end user is responsible for all shipping costs incurred when shipping from and to any country other than the country of origin.
