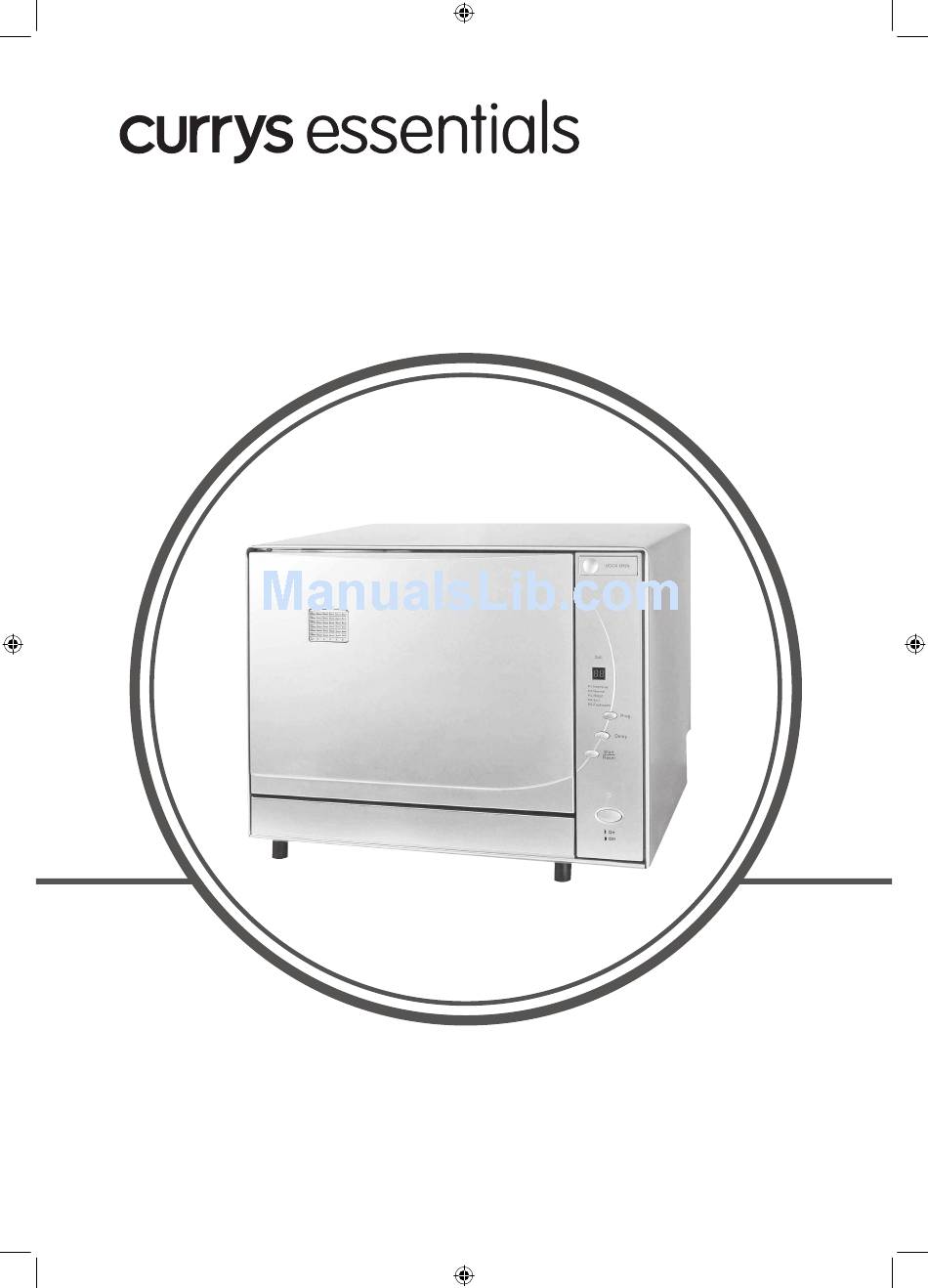

- Page 1 TABL E TO P D IS HWA SH E R IN S TRU C TIO N MA NUAL C D WTT10 Currys Essentials CDWTT10_IB_100413.indd 1 4/13/10 5:10 PM...
-
Page 2: Table Of Contents
Maintenance After Prolonged Period of Non-Operation ....................16 Moving the Dishwasher ...................................16 Helpful Tips and Guides ..................................17 Fault Code ....................................17 Technical Problems ................................18 Specification ....................................... 20 Safety Warnings ....................................21 Disposal of Dishwasher ................................... 23 Disposal of Packing Material ................................. 23 Currys Essentials CDWTT10_IB_100413.indd 2 4/13/10 5:10 PM... -
Page 3: Unpacking
Congratulations on the purchase of your new Currys Essentials Dishwasher. We recommend that you spend some time to read this Instruction Manual in order to fully understand how to install and operate it. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 4: Product Overview
Door Button Internal View Dishwasher Basket Detergent Slot Cutlery Basket DETERGENT Rinse Aid Salt Reservoir Reservoir Spray Coarse Filter Main Filter Fine Filter Rear View Drain Oulet Water Inlet Drain Hose Mains Cable GB-4 Currys Essentials CDWTT10_IB_100413.indd 4 4/13/10 5:10 PM... -
Page 5: Control Panel Overview
Press to confirm and start the selected washing programme. • To pause the washing programme. Power Indicator • The LED light will illuminate when the dishwasher is on. On/Off Button • To turn the dishwasher on and off. GB-5 Currys Essentials CDWTT10_IB_100413.indd 5 4/13/10 5:10 PM... -
Page 6: Installation
Plastic items (e.g. tupperware) which are not heat resistant may melt or lose shape due to the high temperatures in the dishwasher. • Copper, brass, tin and aluminium items may discolour or become matt. GB-6 Currys Essentials CDWTT10_IB_100413.indd 6 4/13/10 5:10 PM... -
Page 7: Adding The Detergent Powder
Place the 3 in 1 detergent tablet into the 3 in 1 tablet basket. Hang the 3 in 1 tablet basket onto the front of the dishwasher basket. GB-7 Currys Essentials CDWTT10_IB_100413.indd 7 4/13/10 5:10 PM... -
Page 8: Adjusting Rinse Aid
1. • If you select to use 3 in 1 washing programme, you do not need to add rinse aid into the rinse aid reservoir. GB-8 Currys Essentials CDWTT10_IB_100413.indd 8 4/13/10 5:10 PM... -
Page 9: Adding Of Salt
• The salt refill warning indicator on the control panel will illuminate when the reservoir is running out of sale and requires refilling. • The salt refill warning indicator will cease to illuminate within a few days, depending on how quickly the salt dissolves. GB-9 Currys Essentials CDWTT10_IB_100413.indd 9 4/13/10 5:10 PM... -
Page 10: Loading The Dishwasher
Shallow pans or casserole dishes can aslo be placed in the dishwasher basket. Long items such as soup ladles, mixing spoons and long knives should be placed lying down across the front of the dishwasher basket. GB-10 Currys Essentials CDWTT10_IB_100413.indd 10 4/13/10 5:10 PM... -
Page 11: Hinged Cup Rack
To make unloading much easier, cutlery should be placed in the cutlery basket evenly. Please refer to the list below. Forks (x4) Soup spoons (x4) Dessert spoons (x4) Teaspoons (X4) Knives (x4) Serving Spoons (x2) Gravy ladle (x1) Serving forks (x2) GB-11 Currys Essentials CDWTT10_IB_100413.indd 11 4/13/10 5:10 PM... -
Page 12: Wash Cycle Table
Normally • Rinse (69 °C) soiled. Glasses and • Wash • n/a 0.01 Soak cups. • Rinse Lightly soiled. * To comply with Standards of Performance, i.e. EN50242, please ensure to use normal washing cycle for the test. GB-12 Currys Essentials CDWTT10_IB_100413.indd 12 4/13/10 5:10 PM... -
Page 13: Starting A Wash Cycle
Allowing dishes to cool down before unloading is important because dishes tend to break and chip more easily when they are hot. Therefore, if you open the dishwasher door fully after switching off this will allow the dishes to cool down much faster. GB-13 Currys Essentials CDWTT10_IB_100413.indd 13 4/13/10 5:10 PM... -
Page 14: Delay Start
• Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels may also scratch or leave marks on the surface. GB-14 Currys Essentials CDWTT10_IB_100413.indd 14 4/13/10 5:10 PM... -
Page 15: Internal Care
Ensure the dishwasher is switched off. Use a pointed object, for instance a cocktail stick, to loosen food particles in the spray arms’ jets. • Do not attempt to remove the spray arms. GB-15 Currys Essentials CDWTT10_IB_100413.indd 15 4/13/10 5:10 PM... -
Page 16: Maintenance After Prolonged Period Of Non-Operation
Disconnect the dishwasher from the water inlet and drain. Remove the dishwasher from the current location with the hoses discharged. Pull the dishwasher out together with the hoses. • Avoid over tilting the unit during transportation. GB-16 Currys Essentials CDWTT10_IB_100413.indd 16 4/13/10 5:10 PM... -
Page 17: Helpful Tips And Guides
The wire terminal connected to the temperature sensor is short circuited or open circuited. The tank is leaking. The hose is leaking. The float switch is broken or PCB is faulty. GB-17 Currys Essentials CDWTT10_IB_100413.indd 17 4/13/10 5:10 PM... -
Page 18: Technical Problems
The salt reservoir cap has not Ensure that it screws back on wiped off. been screwed on correctly. correctly. Unsuitable detergent has been Change your detergent. Use a used. dishwasher standard powder detergent or tablet. GB-18 Currys Essentials CDWTT10_IB_100413.indd 18 4/13/10 5:10 PM... - Page 19 The bleaching effect of the Change your detergent. been completely removed. detergent used is too low. Forgot to pre-rinse or remove Pre-rinse or remove the stains the stains with napkin prior with napkin prior washing. washing. GB-19 Currys Essentials CDWTT10_IB_100413.indd 19 4/13/10 5:10 PM...
-
Page 20: Specification
Overall Dimension (W x D X H) 575(W) x 480(D) x 466(H) (in mm) Water Pressure Required 0.04 - 1.00MPa Capacity 4 Place Settings Power Consumption 1280W Features and Specification are subject to change without prior notice. GB-20 Currys Essentials CDWTT10_IB_100413.indd 20 4/13/10 5:10 PM... -
Page 21: Safety Warnings
• Do not place any heavy objects on the open door. The appliance could tip. GB-21 Currys Essentials CDWTT10_IB_100413.indd 21 4/13/10 5:10 PM... - Page 22 • Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly earthed or the plug does not fit correctly. • Never modify the plug provided with the appliance. GB-22 Currys Essentials CDWTT10_IB_100413.indd 22 4/13/10 5:10 PM...
-
Page 23: Disposal Of Dishwasher
Please ensure that it presents no danger to children while being stored for disposal. Disposal of Packing Material • Please dispose of the plastic wrappings and bags safely and keep out of the reach of babies and young children. GB-23 Currys Essentials CDWTT10_IB_100413.indd 23 4/13/10 5:10 PM... - Page 24 There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd. • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England (P.N.675005900973) Currys Essentials CDWTT10_IB_100413.indd 24 4/13/10 5:10 PM...
