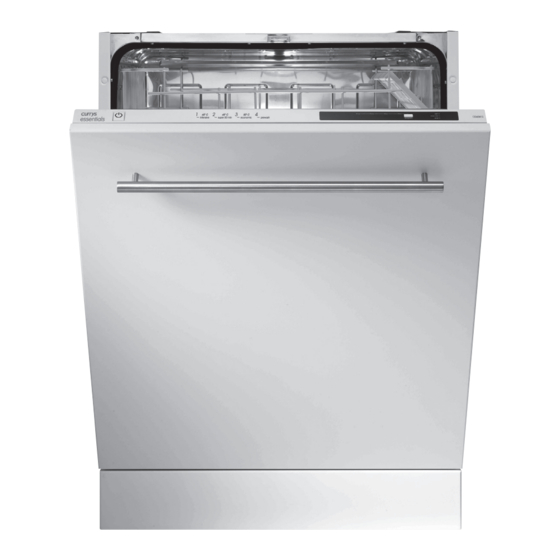

Summary of Contents for Currys Essentials CID60W12
- Page 61 VALUES OF PUMP COILS ACC WASHING POMP WELLİNG WASHING POMP MAİN COİL: 95 Ω ±7 MAİN COİL: 120 Ω ± 7 SUB COİL: 125 Ω ±7 SUB COİL: 116 Ω ± 7...
- Page 63 VALUES OF PUMP COILS PLASET DRAİN PUMP HANYU DARİN PUMP 143 Ω ± 7 210 Ω ± 6...
- Page 65 WATER INLET VALVES (OPTIONAL) 3750 Ω ± 10 ( 20 ° )
- Page 88 Front panel Remove six screws that fix the.front panel.
- Page 138 FOOT AND HIGH LEG DIFFERENCES Adjustable foot Adjustable high leg (It is assemblied at the production plant ) WARNING: Adjustable high leg must be assembled completely for the required highth otherwise it can be damaged. Below shown position is not appropriate to replace.
- Page 139 ASSEMBLY OF THE HIGH LEG High Leg Assembly Adjustment mechanism bearing for the rear high leg. Adjustable high leg must be assemblied completely for replacement. Rear High Leg.
- Page 140 REPLACEMENT FOR THE LAST POSITION The high legs must be located competely to replace for last position. The high legs must be adjusted for varied height after replacement to last position.
- Page 141 ADJUSTMENT OF THE FRONT AND REAR LEG Front legs must be adjusted for table height by manual. Front legs must be adjusted for table height by adjustment mechanism bearing with screwdriver...
