Recording Audio with the Alpha Studio
TM
™
SECTION I – RECORDING AUDIO WITH THE ALPHA STUDIO

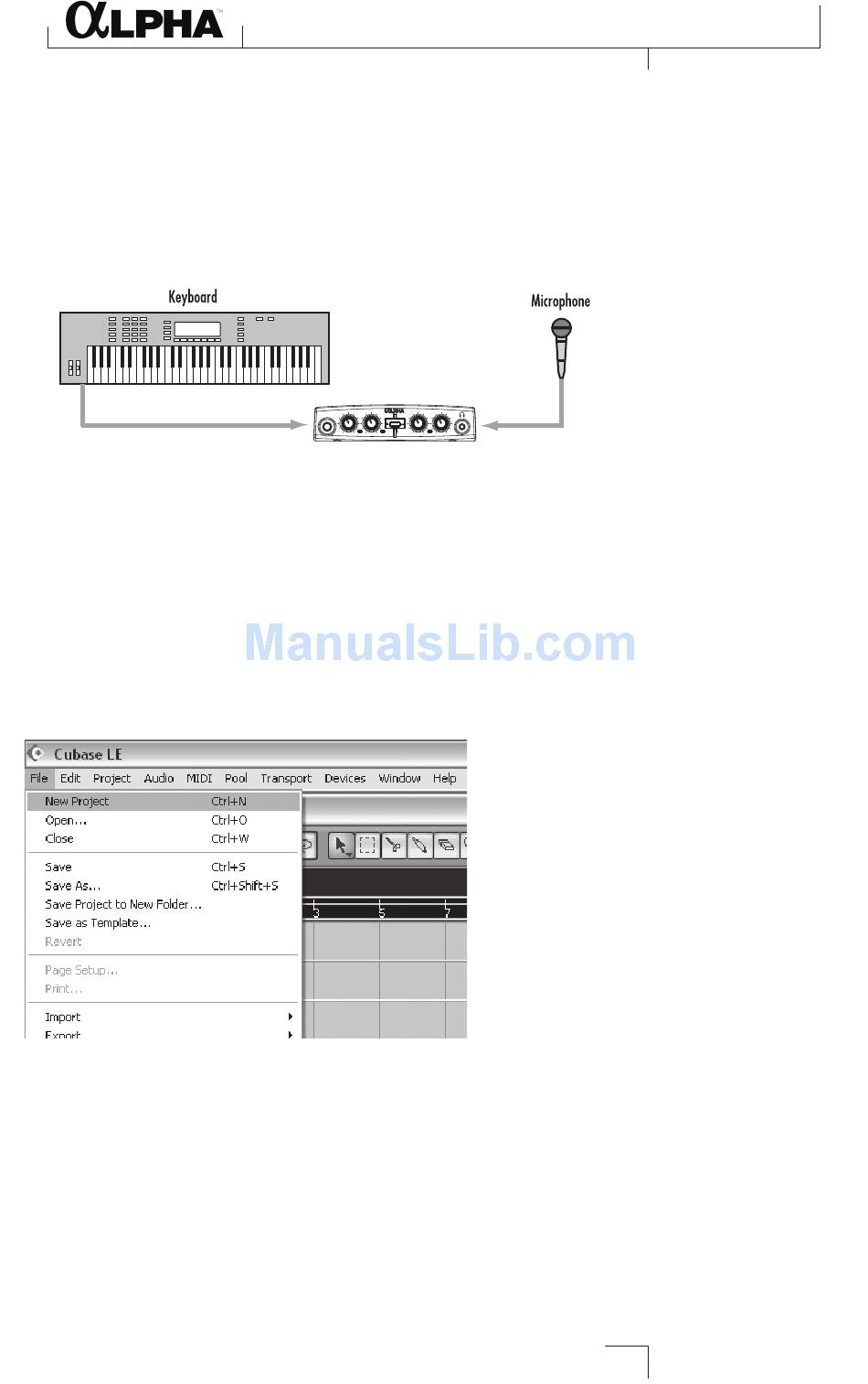

The diagram below shows how the Alpha Studio™ is connected for this particular
setup.
A. RECORDING USING THE MICROPHONE/LINE INPUT
Line In 1
Mic Input
Chan 1/Inst Chan 2/Mic Monitor Mix Output Level
Instrument
Monitor
Stereo Mono
Peak Peak USB
Plug your microphone cable into the Mic Input XLR jack or line level audio source to
the Line 1 ¼" jack on the back of the Alpha Studio.
To set up the software to record:
1. Open Cubase LE.
®
2. Click File and select New Project.
1
