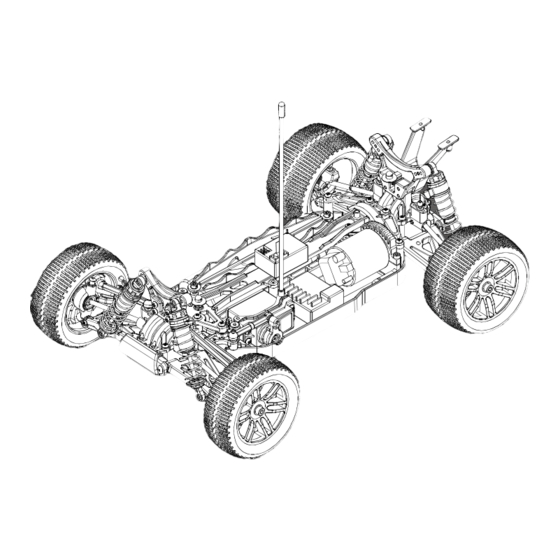

1/10 SCALE ELECTRIC POWERED RACING BUGGY
1:10
No.6536-F
This radio control model car is not a toy! Before beginning assembly, please read this manual thoroughly.
The contents are subject to change without prior notice due to product improvements and specificatrion changes.
Maintenance Manual & Parts Catalogue
Introduction
Thank you for purchasing this Thunder Tiger product. This manual contains the steps and instructions required to assemble
your car. Please read this manual completely before attempting to start maintenance. Follow the directions in this manual closely
to reduce problems during operation. We offer online help on our www.acehobby.com or www.thundertiger.com and forums
and our product specialists are ready to take your call if you have any technical questions. Have fun and enjoy the exciting world
of R/C.
SPARROWHAWK XB
24
www.thundertiger.com
Advertisement
Table of Contents
Related Manuals for THUNDER TIGER SparrowHawk XB 6536-F
Summary of Contents for THUNDER TIGER SparrowHawk XB 6536-F
- Page 1 Maintenance Manual & Parts Catalogue Introduction Thank you for purchasing this Thunder Tiger product. This manual contains the steps and instructions required to assemble your car. Please read this manual completely before attempting to start maintenance. Follow the directions in this manual closely to reduce problems during operation.
-
Page 2: Table Of Contents
Under Safety Precautions Please read all of the instructions and familiarize yourself with the product and its controls before operation. 1. This product is not a toy. It is a high performance model car therefore it is important to familiarize yourself with the model, its manual, and its construction before assembly or operation. -
Page 3: Manual Format
Manual Format How to read the instruction manual? Example STEP4 Indicates the assembly step number and the Front Suspension parts that are to be assembled. Displays actual size drawings, and part quantities used. 10x15x4mm All parts, except screws, are identified by its Ball Bearing order numbers. -
Page 4: Step1 Rear Differential
STEP1 Front Differential / Rear Differential 2.5x12mm F/H Philip Machine Screw 8x14x4mm Ball Bearing 3x5mm Washer 5x8mm Washer silicon oil 4.4x0.8mm O-Ring 3x19mm You may also use silicone oil to replace grease for the differentials. Fill up to 80%. Change the viscosity of the silicone oil according to track conditions and your driving style. -
Page 5: Step4 Rear Suspension
STEP3 Rear Differential Unit 6mm(L) Ball Stud 14x10.5.x0.1mm Diff Shim Adjust the backlash 3x12mm with the shims. 4x3mm BT Philip Machine Screw Set Screw Also see P.5 Camber Adjustment For Ready Set Camber Linkage For Optional Turnbuckle Linkage Not Recommended Set Up STEP4 Rear Suspension Inner hinge Pin... - Page 6 STEP4 Rear Suspension 10x15x4mm Ball Bearing 6mm(L) Ball Stud Camber Adjustment For Ready Set Camber Linkage For Optional Turnbuckle Linkage In the chassis set, these dog bones have been assembled in one-piece unit. STEP4 Rear Suspension Marked "B-CM" "B-CM" 2x4mm BT Self-Tapping Screw w/washer 2.5x22mm Outer Hinge Pin (Rear)
- Page 7 STEP4 Rear Suspension Rear Shock Tower 6 mm(L) Ball Stud (PD9104) 3x8 mm BT Philip Machine Screw 3x16 mm BT Philip Machine Screw STEP5 Front Differential Unit Leave one unit of drive axle for next step. 5x11x4 mm Ball Bearing 4 mm E-clip 2.5 mm...
-
Page 8: Step6 Front Suspension
STEP5 Front Differential Unit 6mm(L) Ball Stud 14x10.5.x0.1mm Diff Shim 3x12mm Adjust the backlash BT Philip Machine Screw with the shims. 4x3mm Set Screw Camber Adjustment For Ready Set Camber Linkage For Optional Turnbuckle Linkage Not Recommended Set Up STEP6 Front Suspension Factory Set-up Inner hinge Pin... - Page 9 STEP6 Front Bumper Front Suspension 3x5 mm F/H Philip Machine Screw Side View STEP6 For Left Front Suspension 3x12 mm BT Machine Screw Marked "R" "R" 10x15x4 mm Ball Bearing 6mm(L) Marked "L" Ball Stud "L" Caster Block Bushing Toe Adjustment For Ready Set Steering Linkage For Optional Turnbuckle Linkage In the chassis set,...
- Page 10 STEP6 Front Suspension 6mm(L) Ball Stud Marked "B-CM" "B-CM" 2x4mm BT Self-Tapping Screw 2.5x20mm Outer Hinge Pin (Front) For Right STEP6 Front Shock Tower Front Suspension 6mm(L) Ball Stud 3x14mm BT Philip Machine Screw Assemble left and right side the same way...
-
Page 11: Step7 Shock Absorber
STEP7 Shock Absorber Attach the shock eyelet onto the shock shaft until it reaches the mark line on the shaft. 2.5mm E-Clips Shock Eyelet 2.8x1.9 mm O-Ring Shock Shaft Cover the shaft with cloth before griping it with pliers. Shock Shaft Front x2 Rear x2 Pull down the piston and... - Page 12 STEP7 Shock Absorber Front Shock Absorbers Rear Shock Absorbers...
-
Page 13: Step8 Steering Bellcrank
STEP8 Steering Bellcrank Top View 6mm(L) Ball Stud Rear Swing Post Screw 5x8x2.5mm Ball Bearing Side View Rear Note direction STEP8 Steering Bellcrank Marked "B-ST" "B-ST" Marked "B-ST" "B-ST" Ensure smooth, non-binding movement Apply grease Pay close attention here when assembling... -
Page 14: Step9 Installation Of Rear End
STEP9 Installation of Rear End Rear Suspensison 3x10mm F/H Philip Machine Screw 3x8mm BT Philip Machine Screw M3 Lock Nut STEP10 Installation of Front End Front Suspensison M3 Lock Nut 3x10mm F/H Philip Machine Screw... -
Page 15: Step11 Steering Servo
ACE R/C S1903/S2008MG ACE R/C DS1015/DS1313 Marked "T" for Thunder Tiger stock servo. Find the appropriate servo horn mount for your servro from the chart below. Install the ser vo horn arm with Airtronics / Sanwa / JR / KO the stock mounting screw. -
Page 16: Step13 Installation Of Motor Mount
Adjust the gear ratio by changing pinion gears according to the size of the track and other conditions. SPARROWHAWK XB RTR at present comes with 70T spur gear and 22T pinion gear. Thunder Tiger also provides 19T/20T/21T/23T/24T/25T/26T racing pinion gears as optional parts. For other gear ratios, please find optional gears with standard 48pitch from the aftermarket parts. -
Page 17: Step14 Installation Of Top Plate
STEP14 Installation of Top Plate Note the size of screw. Too long screw will touch the driveshaft cup. 3x23mm BT Philip Machine Screw 3x18mm BT Philip Machine Screw 3x10mm BT Philip Machine Screw 3x8mm BT Philip Machine Screw 3x6mm BT Philip Machine Screw 3x8mm F/H Philip Machine Screw STEP15... -
Page 18: Step16 Receiver & E.s.c
STEP16 Receiver & E.S.C. Anntenna Thread antenna cord through the tubing. STEP17 Tire/Wheels Tire insert foam Install the tire onto the wheel. Glue the tire to the wheel with instant glue in four spots around the tire on both sides. Warning: Follow the adhesive instructions for proper use and safety. -
Page 19: Step18 Body Shell
STEP17 Tire/Wheels 4x12mm Socket Hex Machine Screw Washer STEP18 Body Shell 3x8mm BT Self-Tapping Screw w/washer Body Clip Receiver Antenna Hole Position the connectors here. Hint Apply C.A Glue Assemble as many times as specified... -
Page 23: Sparrowhawk Vx Part
SPARROWHAWK XB PART PD7035 MOTOR PINION GEAR,21T PD7338 MOTOR W/DECAL SET PD7712 ANTENNA BAG PD7837 MOTOR MOUNT PD7845 CHASSIS PD7846 SERVO MOUNT PD7847 BATTERY BRACE PD7864 OUTDRIVE CUPS PD7901 FRONT BULK SET PD7902 REAR BULK SET PD7905 DIFF SPUR GEAR 44T PD7915 FRONT TOE PLATE PD7916 REAR TOE PLATE PD7917 FRONT SUSP. - Page 24 SPARROWHAWK XB PART PD7935 REAR TIRE W/FOAM 43mm PD7936-1 SHOCK TOWER SET PD7937 BALL STUD SPACER PD7938 REAR WING MOUNT PD7947 SHOCK BLADDER PD7952-W FRONT WHEEL (WHITE) PD7953-W REAR WHEEL (WHITE) PD7962-R SHOCK SPRING(R) PD7998 BULK LOWER COVER PD8088-1 SHOCK CAP PD8098 SHOCK PISTON SET PD9051 DIFFERENTIAL CASE PD9077 STEERING BLOCK SET...
- Page 25 SPARROWHAWK XB PART PD9179 DRIVE PINION SET 13T PD9180 FRONT UNINI SHAFT PD9181 REAR UNINI SHAFT PD9182 TOP PLATE PD9183 ALUM MAIN DRIVE SHAFT PD9184 SWING POST SCREW PD9202 SLIPPER CLUTCH SET PD9210 SLIPPER HUB SET PD9213 MAIN GEAR SHAFT PD9214 MAIN GEAR,70T PD9219 DRIVE PINION GEAR,13T PD9222 SLIPPER PAD SET...
- Page 26 SPARROWHAWK XB PARTS LIST PART# DESCRIPTION NOTE (20),M3x10 PD0668 BT M. SCREW(20),M3x10 PD0866 (10) BODY CLIPS(10) PD0961 (20),M3x3 SET SCREWS(20),M3x3 PD0962 (20),M4x3 SET SCREWS(20),M4x3 PD0973 (20),4mm WASHER(20),4mm PD0978 (20),4mm E-CLIP(20),4mm (20),M3x8 PD1191 CTP.M.SCREW(20),M3x8 PD1192 (20),M3x10 CTP.M.SCREW(20),M3x10 PD1199 (20),3mm WASHER(20),3mm PD1244 (10),M3 LOCK NUT(10),M3 PD1532...
- Page 27 SPARROWHAWK XB PARTS LIST PART# DESCRIPTION NOTE SHOCK SPRING(R) PD7962-R PD7998 BULK LWR COVER SHOCK CAP PD8088-1 PD8098 SHOCK PISTON SET BT P.M. SCREW(20),M3x6 (20),M3x6 PD8205 DIFFERENTIAL CASE PD9051 PD9077 STEERING BLOCK SET PD9078 CASTER BLOCK SET PD9080 OUTER HINGE PIN SET SUSP.
- Page 28 CFRP=CARBON FIBER REINFORCED PLATE ALUM=ALUMINUM SPARROWHAWK XB OPTION PART No.1340 ROTATING CAR STAND, O PD2302 TIE END SET PD7713 LONG HEX ADAPTER PD7722 ALUM STEERING BLOCK SET PD7723 ALUM CASTER BLOCK SET PD7724 ALUM HUB CARRIER SET PD7876 ALUM HEX ADAPTER PD7877 AL BATT.
- Page 29 CFRP=CARBON FIBER REINFORCED PLATE ALUM=ALUMINUM SPARROWHAWK XB OPTION PART Also see PD9188 (12) PD9190 TITANIUM TURNBUCKLE SET PD9191 CFRP BATT.BRACE&ACC.PR PD9192 ALUM MOTOR MNT,TOURING PD9194 SHOCK CAP, METAL Also see PD9189 PD9200-1 SWAY BAR SET(SILVER) PD9200-2 SWAY BAR SET(BLACK) PD9224 MAIN GEAR,72T PD9231 ALUM TOP PLATE BRACE SET ,72T MOTOR PINION GEAR...
- Page 30 CFRP=CARBON FIBER REINFORCED PLATE ALUM=ALUMINUM SPARROWHAWK XB OPTION PARTS LIST PART# DESCRIPTION NOTE 1340 ROTATING CAR STAND,ORANGE PD2302 TIE END SET PD7033 MOTOR PINION GEAR,19T ,19T PD7034 MOTOR PINION GEAR,20T ,20T PD7036 MOTOR PINION GEAR,22T ,22T PD7037 MOTOR PINION GEAR,23T ,23T PD7038 MOTOR PINION GEAR,24T...
- Page 31 BODY SHELLS PD7963-W REAR WING(W) PD7963-Y REAR WING(Y) PD7963-O REAR WING(O) PD7939 REAR WING(B) PD9193 CLR BODY SET,X-type TA-EB PD9196 PRINTING BODY(BL/W) PD9197 PRINTING BODY(B/W) PD9198 CLEAR BODY W/DECAL TA-EB PD9199 BODY DECAL SET PART# DESCRIPTION NOTE PD7939 REAR WING(BLACK) PD7963-O REAR WING(ORANGE) PD7963-W...
- Page 32 WHEEL & TIRE OPTION PART LIST PD7932 FRONT WHEEL 33mm(B) PD7934 REAR WHEEL 43mm(B) PD7952-O FRONT WHEEL 33mm(O) PD7952-Y FRONT WHEEL 33mm(Y) PD7953-Y REAR WHEEL 43mm(Y) PD7953-O REAR WHEEL 43mm(O) PART# DESCRIPTION NOTE PD7932 FRONT WHEEL (BLACK) PD7934 FRONT WHEEL (BLACK) PD7952-O FRONT WHEEL 33mm (ORANGE) PD7952-Y...
- Page 33 OPTIONAL ELECTRONICS 7.2V Ni-MH Battery Pack / Stick No.2937 Ni-MH Battery Pack/Flat, No.2941 Ni-MH Battery 7.2V/2400mAh SC Pack/Flat, 7.2V/3600mAh SC Specifications Item No. 8050 Voltage range 4.8~8.4V Internal resistance 0.004 Momentary Load (1 sec) 400A Electronic Speed Control Brief Load (30 sec) 230A Continuous Load (5 min) 170A...
